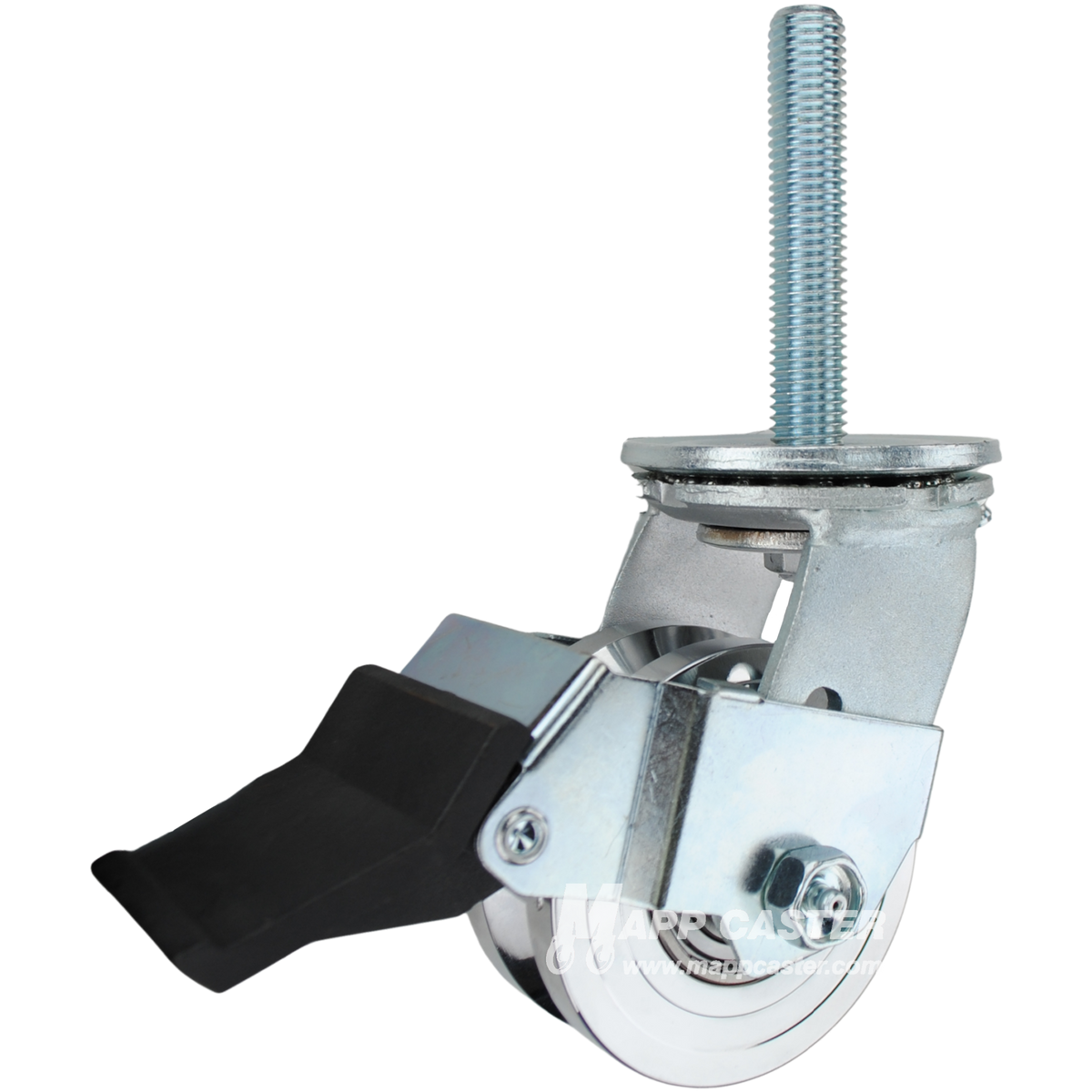

4 x 2 forged steel V-groove swivel caster with face contact brake and 3/4-10 x 4 threaded stem for angle iron tracks, heavy-duty industrial equipment.

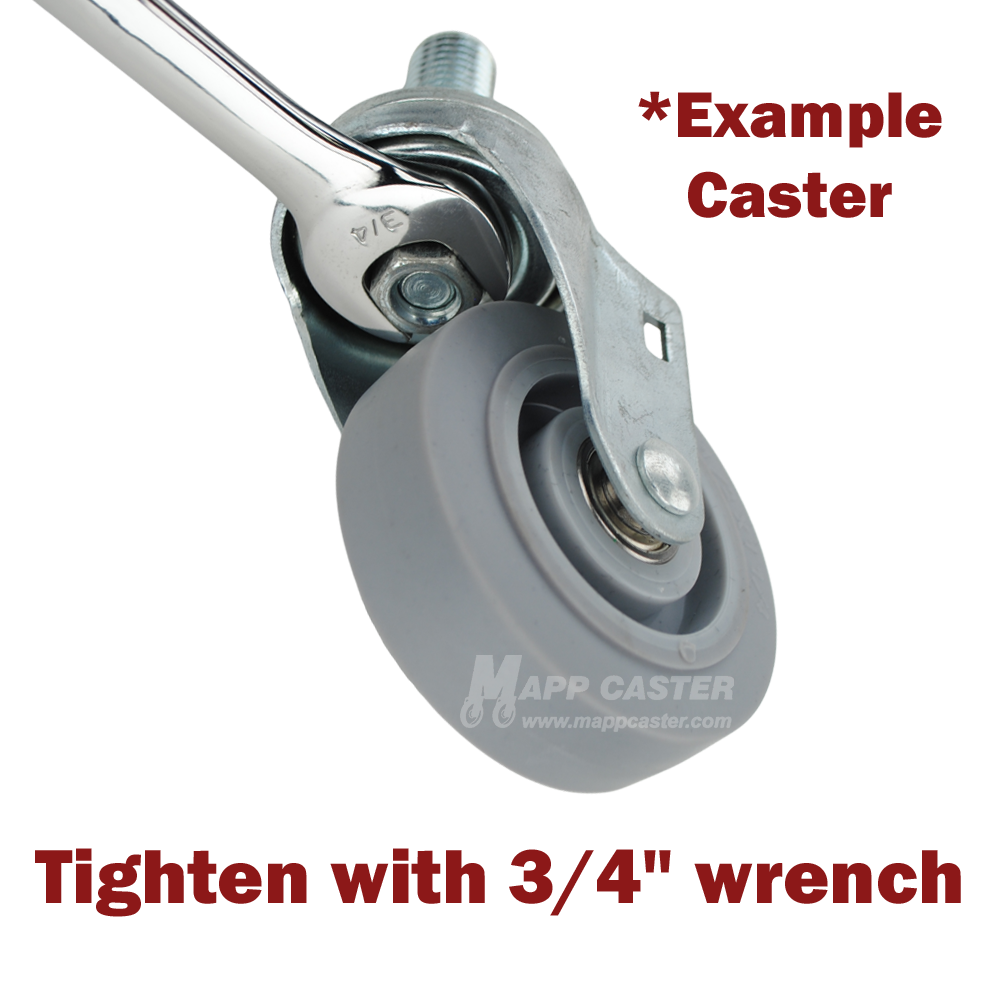

swivel caster with gray wheel with its stem being tightened with a 3/4" wrench
4 x 2 forged steel V-groove swivel caster with face contact brake and 3/4-10 x 4 threaded stem for angle iron tracks, heavy-duty industrial equipment.

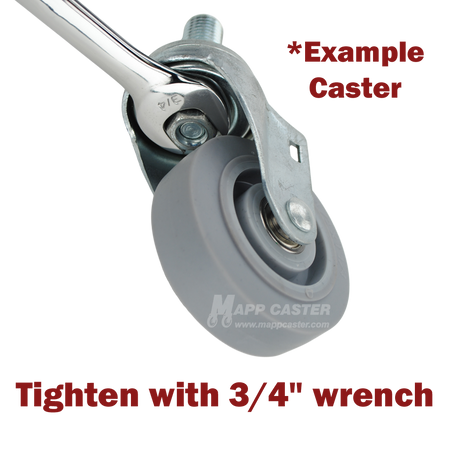

swivel caster with gray wheel with its stem being tightened with a 3/4" wrench

4" x 2" Forged Steel V-Groove Wheel Swivel Caster w/ Face Contact Brake, 3/4"-10 x 4 Threaded Stem - 1250 Lbs Capacity

SKU

7RTP042FVGFCB
$103.65

4" x 2" Forged Steel V-Groove Wheel Swivel Caster w/ Face Contact Brake, 3/4"-10 x 4 Threaded Stem - Part # 7RTP042FVGFCB

Forged V-Groove wheels are designed to guide equipment along inverted angle iron tracks but can also function without a track due to the tread on both sides of the V-Groove. Made from forged steel, these wheels are the premium of all the steel wheel casters. The forged steel wheel is made from ASTM 1045 high carbon steel that is hot drop forged. It offers the maximum weight capacity, impact strength & durability of all caster wheels. While forged steel is incredibly resilient, it is the harshest wheel type for floors & could lead to floor damage.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Capacity: 1250 Lbs.
Stem Size: 3/4"
Wheel Diameter:4"
Stem Thread Pitch:10
Tread Width: 2"
Stem Length:4"
Tread Shape: V-groove
Overall Height:5-5/8"
Bearing Type:See Bearings Options
Caster Rig Material Type:Cold Rolled Steel
Wheel Type:Forged Steel V-Groove
Caster Rig Color/Finish:Silver Zinc Plated
Wheel Durometer:Rockwell 89-93 B
Swivel Radius: 3-1/4"
Wheel Color: Silver
Swivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range: -45˚F to 550˚F
Weight: 7.844 Lbs
Link to Replacement Wheel: PAH108
Link to Matching Swivel Caster: 7RTP042FVG
Capacity icon Capacity: 1250 lbs.
Wheel Type iconWheel Diameter:4"
Wheel Diameter icon Tread Width:2"
Tread Width iconStem Size:3/4"
Hub Length (without Bearings) icon
Stem Thread Pitch: 10
Hub Length (with Bearings) icon
Stem Length: 4"
Bearing Type iconTread Shape:V-Groove
Plain Bore ID iconBearing Type: See Bearings Options
Accepted Axle/Bearing ID iconWheel Type: Forged Steel V-Groove
Wheel Durometer iconWheel Durometer:Rockwell 89-93 B
Wheel Tread Shape iconOverall Height:5-5/8"
Wheel Tread Shape iconSwivel Radius:3-1/4"
Wheel Tread Shape iconSwivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range icon Caster Rig Material Type: Cold Rolled Steel
Wheel Color iconCaster Rig Color/Finish:Silver Zinc Plated
Weight iconWheel Color:Silver
Wheel Color iconTemp Range:-45°F to 550°F
Weight icon Weight:7.844 Lbs
Wheel Color iconLink to Replacement Wheel:PAH108
Weight icon Link to Matching Swivel Brake Caster:7RTP042FVG
