4" x 2" Forged Steel V-Groove Wheel Rigid Brake Caster
SKU
146FVG420RBCouldn't load pickup availability
4" x 2" Forged Steel V-Groove Wheel Rigid Brake Caster - Part #: 146FVG420RB

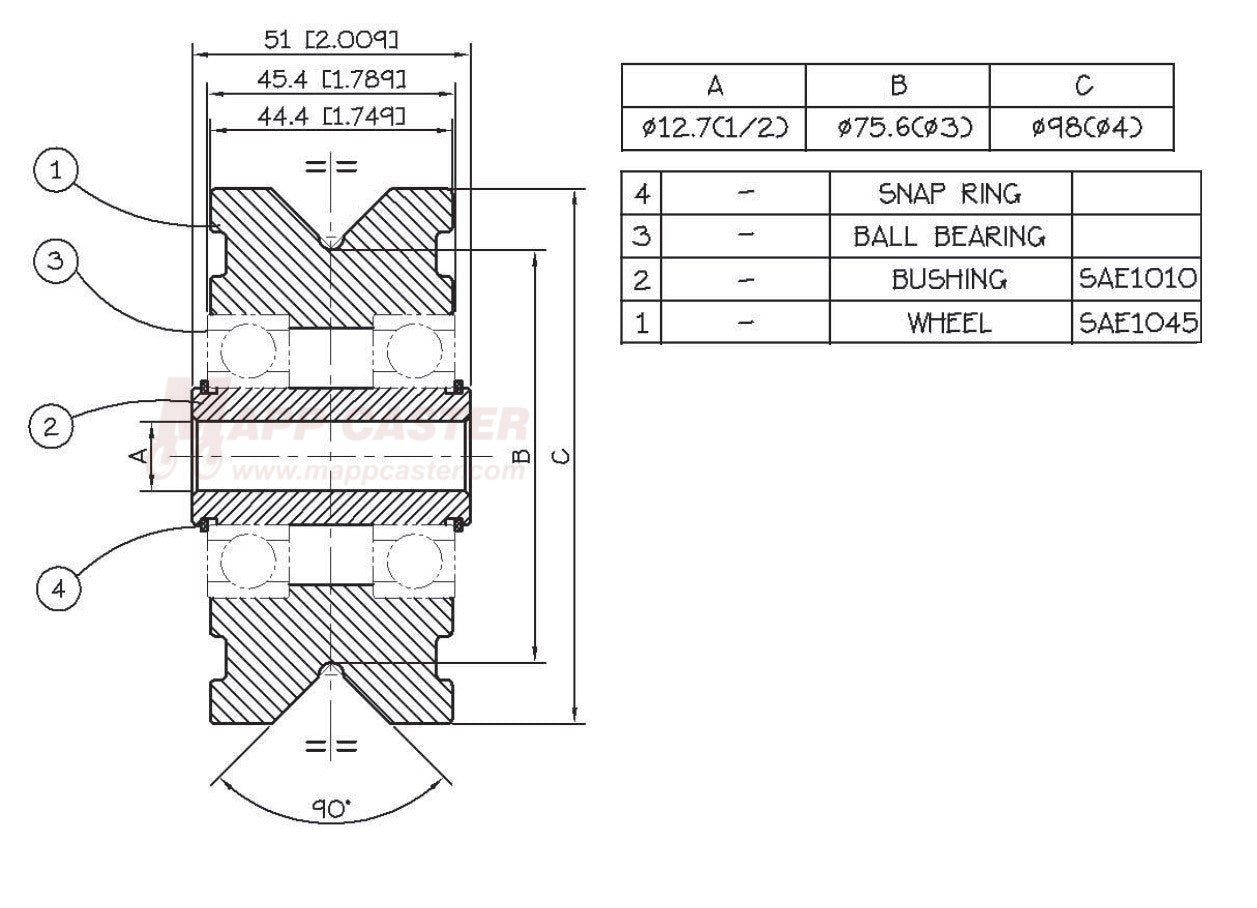

Forged V-Groove wheels are designed to guide equipment along inverted angle iron tracks but can also function without a track due to the tread on both sides of the V-Groove. Made from forged steel, these wheels are the premium of all the steel wheel casters. The forged steel wheel is made from ASTM 1045 high carbon steel that is hot drop forged. It offers the maximum weight capacity, impact strength & durability of all caster wheels. While forged steel is incredibly resilient, it is the harshest wheel type for floors & could lead to floor damage.
Specifications:
| Load Capacity (lbs.): 1250 |
Link to Matching Swivel Brake Caster:Â 146FVG420SB Link to Matching Swivel Caster with Total Locking Brake:Â 146FVG420SBTL |
| Wheel Diameter:Â 4" | Wheel Durometer: N/A |
| Tread Width:Â 2" |
Wheel Color: Silver |
| Wheel Type: Forged Steel V-Groove |
Swivel or Rigid Caster: Rigid |
|
Wheel Bearing Type: Precision Ball Bearing |
Swivel Radius: N/A |
| Overall Height:Â 5-5/8" | Swivel Construction: N/a |

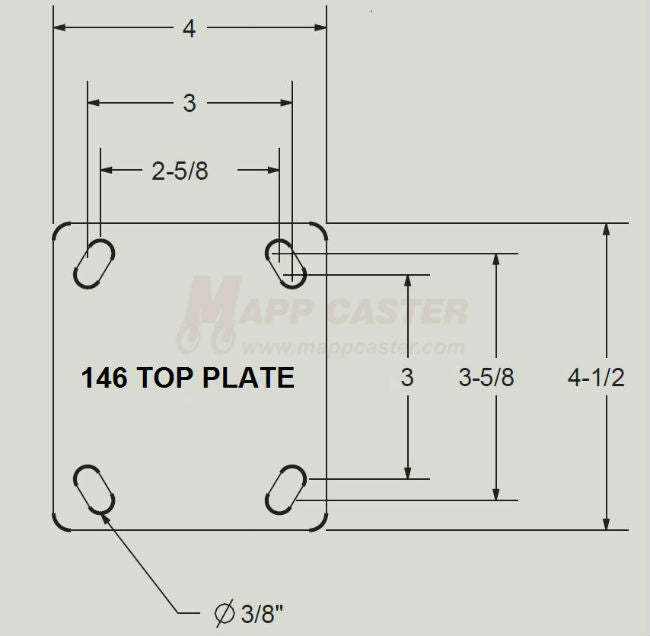

| Temp Range: - 45°F to 180°F | Mounting Plate: 4" x 4-1/2" |
| V-Groove Width:Â 7/8" | Bolt Hole Pattern:Â 2-5/8" x 3-5/8" slotted to 3"x 3" |
| V-Groove Depth:Â 7/16" | Mounting Bolt Size:Â 3/8" or Smaller |
| Link to Replacement Wheel: PAH108 | Weight: 6.92 Lbs |
