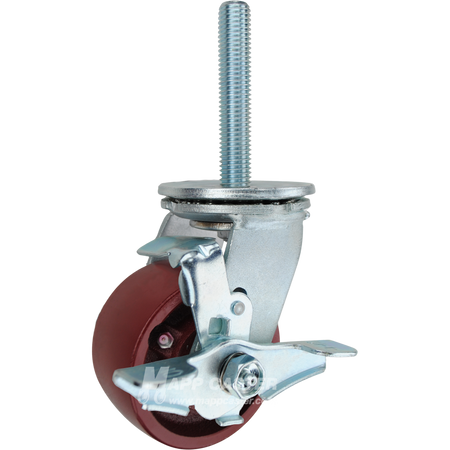

4 x 2 ductile steel swivel caster with brake and 3/4-10 x 4 threaded stem for heavy-duty industrial carts, offering high strength and durability.
swivel caster with gray wheel with its stem being tightened with a 3/4" wrench

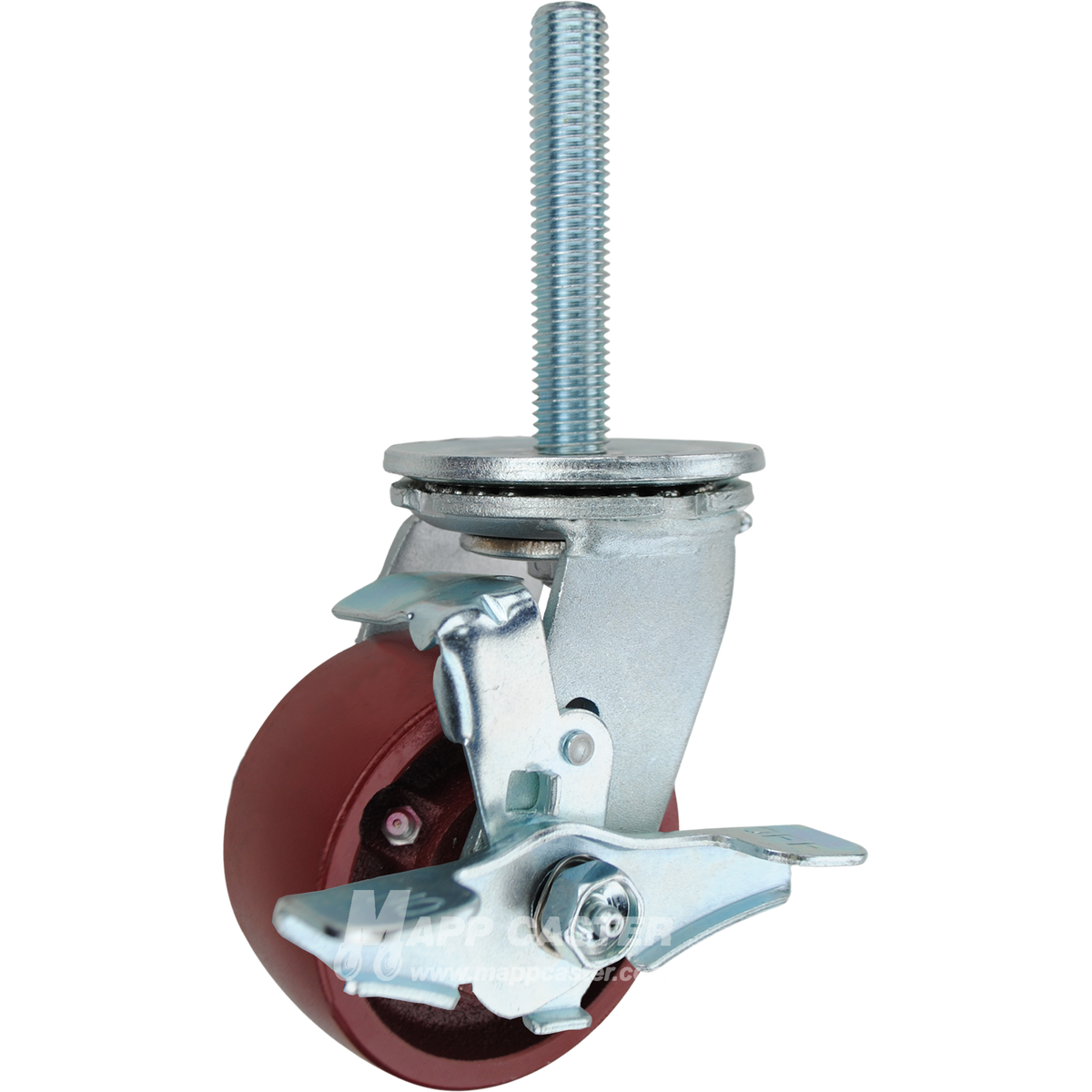

4 x 2 ductile steel swivel caster with brake and 3/4-10 x 4 threaded stem for heavy-duty industrial carts, offering high strength and durability.

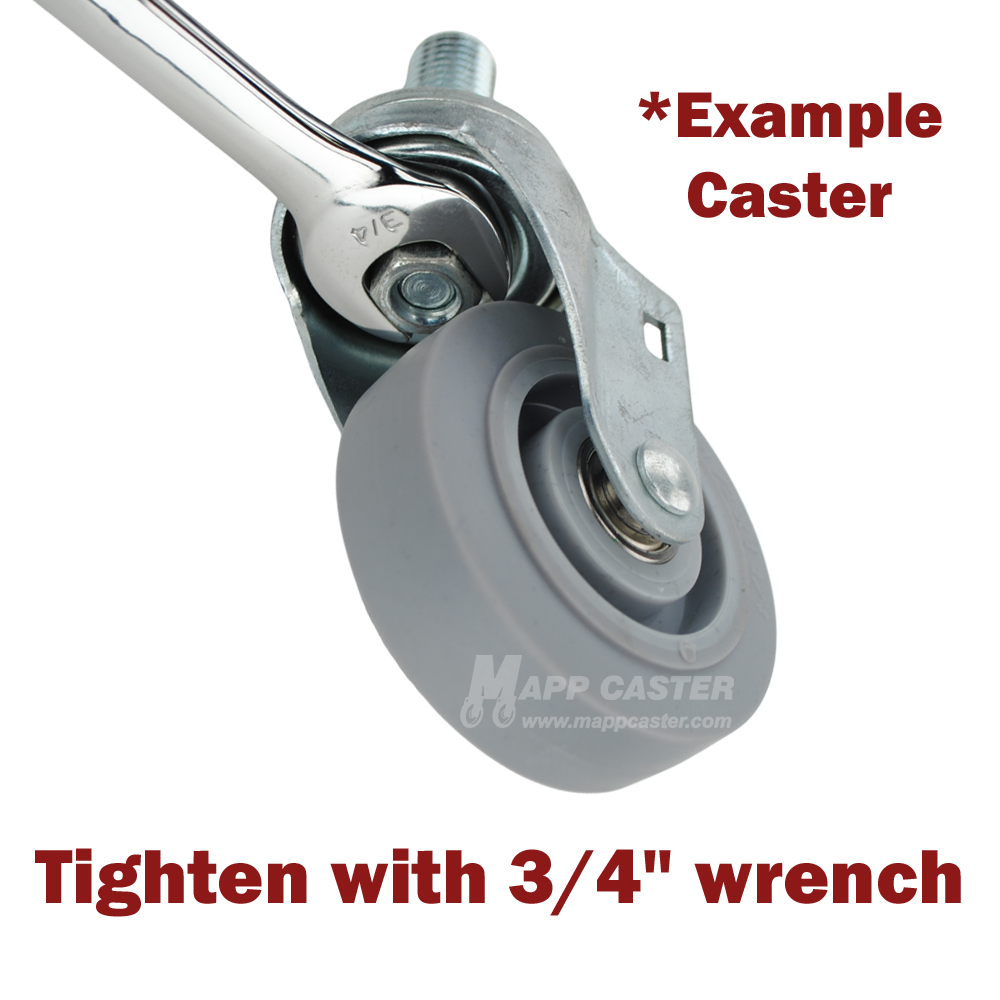

swivel caster with gray wheel with its stem being tightened with a 3/4" wrench

4" x 2" Ductile Steel Wheel Swivel Brake Caster, 3/4"-10 x 4 Threaded Stem - 1250 Lbs Capacity

SKU

7RTP042DUCTTLB
$69.19

4" x 2" Ductile Steel Wheel Swivel Brake Caster, 3/4"-10 x 4 Threaded Stem - Part # 7RTP042DUCTTLB

Manufactured from a high strength steel alloy, ductile steel offers improved capacity, durability & impact resistance compared to standard cast iron wheels. Ductile steel provides approximately 45,000 PSI tensile strength & features a thicker tread, spokes & hubs to withstand abusive industrial applications. Its moderately crowned tread design further reduces friction during rolling, swiveling & directional changes for improved maneuverability.

While ductile steel is very hard, it is tough on floors & could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane casters. For applications requiring more capacity, temperature resistance & impact strength, check out our forged steel caster.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Capacity: 1250 Lbs.
Stem Size: 3/4"
Wheel Diameter:4"
Stem Thread Pitch:10
Tread Width: 2"
Stem Length:4"
Tread Shape: Slightly Crowned
Overall Height:5-5/8"
Bearing Type:See Bearings Options
Caster Rig Material Type:Cold Rolled Steel
Wheel Type:Ductile Steel
Caster Rig Color/Finish:Silver Zinc Plated
Wheel Durometer:Rockwell 74B
Swivel Radius: 3-1/4"
Wheel Color: Red
Swivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range: -45˚F to 800˚F
Weight: 8.334 Lbs
Link to Replacement Wheel: LDS420
Link to Matching Swivel Caster: 7RTP042DUCT
Capacity icon Capacity: 12500lbs.
Wheel Type iconWheel Diameter:4"
Wheel Diameter icon Tread Width:2"
Tread Width iconStem Size:3/4"
Hub Length (without Bearings) icon
Stem Thread Pitch: 10
Hub Length (with Bearings) icon
Stem Length: 4"
Bearing Type iconTread Shape:Slightly Crowned
Plain Bore ID iconBearing Type: See Bearings Options
Accepted Axle/Bearing ID iconWheel Type: Ductile Steel
Wheel Durometer iconWheel Durometer:Rockwell 74B
Wheel Tread Shape iconOverall Height:5-5/8"
Wheel Tread Shape iconSwivel Radius:3-1/4"
Wheel Tread Shape iconSwivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range icon Caster Rig Material Type: Cold Rolled Steel
Wheel Color iconCaster Rig Color/Finish:Silver Zinc Plated
Weight iconWheel Color:Red
Wheel Color iconTemp Range:-45°F to 800°F
Weight icon Weight:8.334 Lbs
Wheel Color iconLink to Replacement Wheel:LDS420
Weight icon Link to Matching Swivel Caster:7RTP042DUCT
