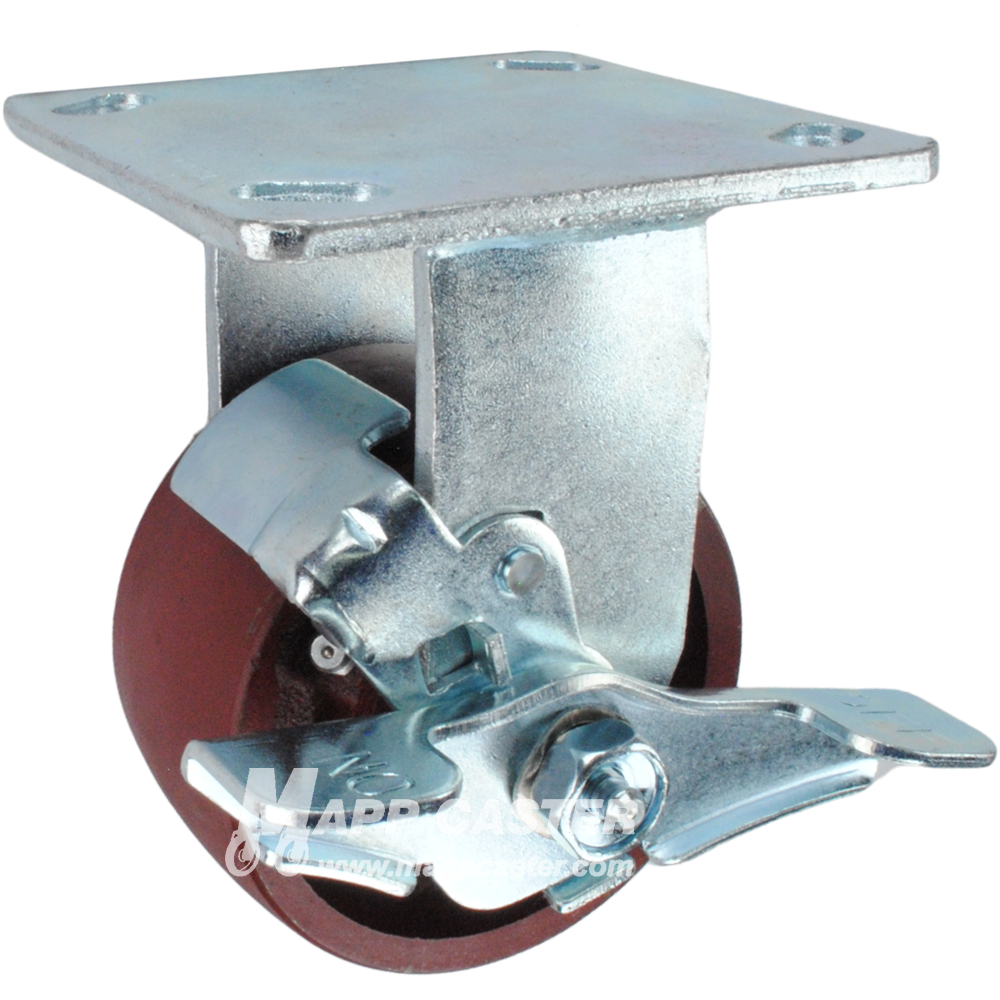

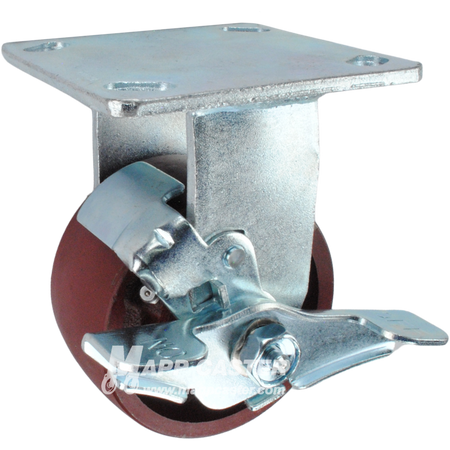

4" x 2" Ductile Steel Wheel Kingpinless Rigid Brake Caster - 1,500 Lbs Capacity

SKU

P50042DUCTTLB
$47.08

4" x 2" Ductile Steel Wheel Kingpinless Rigid Brake Caster - Part # P50042DUCTTLB

Ductile steel wheels are the next level up in capacity & durability from cast iron wheels. Made from a combination of alloys that provide excellent tensile strength, these wheels come with extra thick treads, hubs & walls. While ductile steel is very resilient, it is tough on floors & could lead to floor damage.

For heavy duty floor protective wheels, be sure to check out our polyurethane wheels. For maximum capacity & durability, check out our premium forged steel wheel casters.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Capacity: 1,500 Lbs.
Mounting Plate: 4" x 4-1/2"
Wheel Diameter:4"

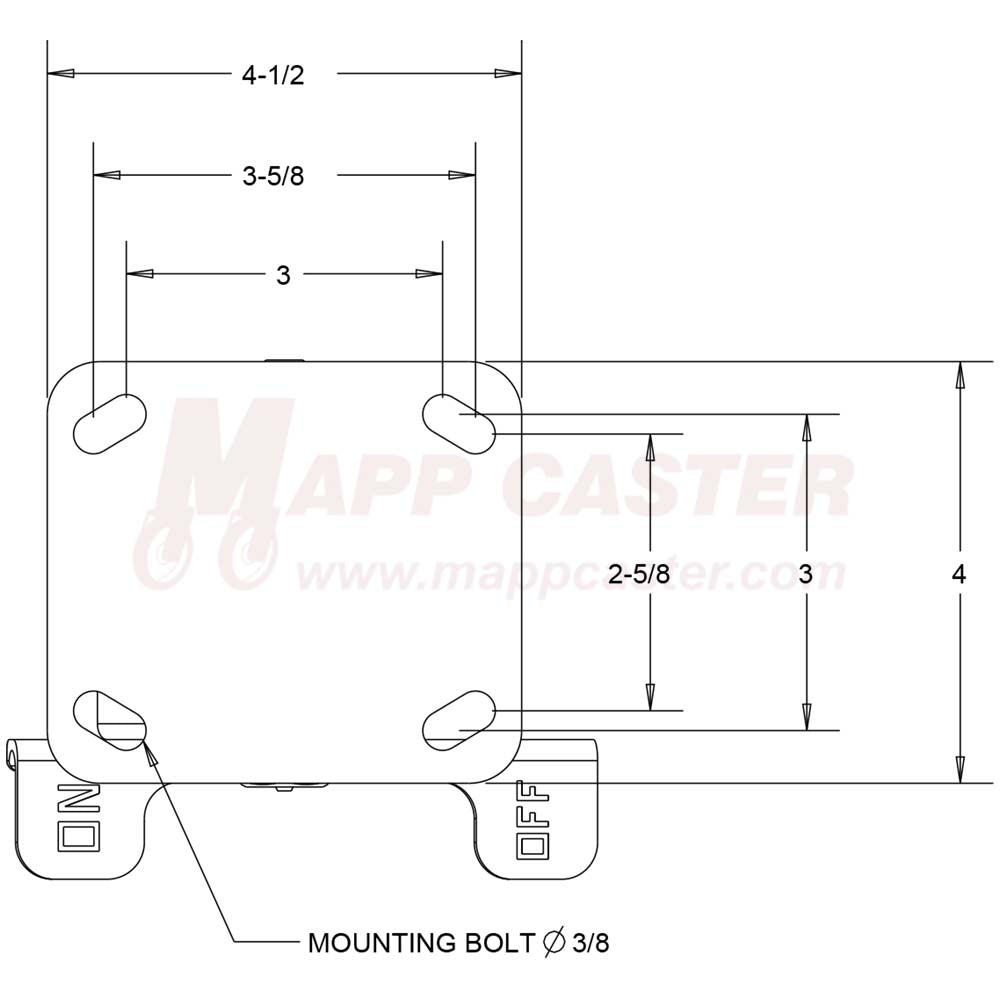

Bolt Hole Pattern:2-5/8" x 3-5/8" slotted to 3" x 3"
Tread Width: 2"
Mounting Bolt Size:3/8" or Smaller
Tread Shape:Slightly Crowned
Overall Height:5-5/8"
Bearing Type:See Bearings Options
Caster Rig Material Type:Cold Rolled Steel
Wheel Type:Ductile Steel
Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Rockwell 75B
Temp Range: -45˚F to 800˚F
Wheel Color: Red
Weight: 7.562 Lbs
Link to Replacement Wheel: LDS420
Link to Matching Swivel Brake Caster: P51042DUCTTLB

Link to Matching Swivel Caster w/ Face Contact Brake: P51042DUCTFCB
Capacity icon Capacity: 1,500 lbs.
Wheel Type iconWheel Diameter:4"
Wheel Diameter icon Tread Width:2"
Tread Width icon Mounting Plate:4" x 4-1/2"
Hub Length (without Bearings) icon
Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Hub Length (with Bearings) icon
Mounting Bolt Size: 3/8" or Smaller
Bearing Type iconTread Shape:Slightly Crowned
Plain Bore ID icon Bearing Type: See Bearings Options
Accepted Axle/Bearing ID iconWheel Type:Ductile Steel
Wheel Durometer iconWheel Durometer:Rockwell 75B
Wheel Tread Shape iconOverall Height:5-5/8"
Temp Range icon Caster Rig Material Type: Cold Rolled Steel
Wheel Color iconCaster Rig Color/Finish:Bright Zinc Plated
Weight iconWheel Color:Red
Wheel Color iconTemp Range:-45ËšF to 800ËšF
Weight icon Weight:7.562 Lbs
Wheel Color iconLink to Replacement Wheel:LDS420
Weight icon Link to Matching Swivel Brake Caster:P51042DUCTTLB
Weight icon Link to Matching Swivel Caster w/ Face Contact Brake:P51042DUCTFCB
