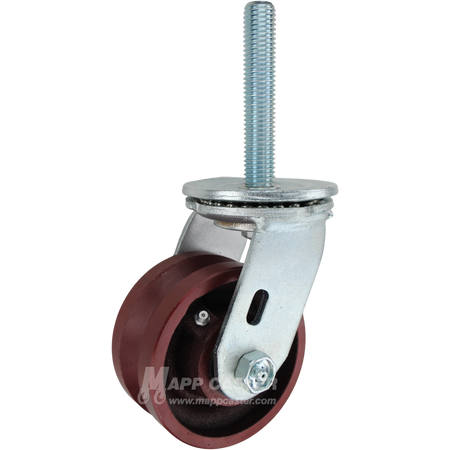

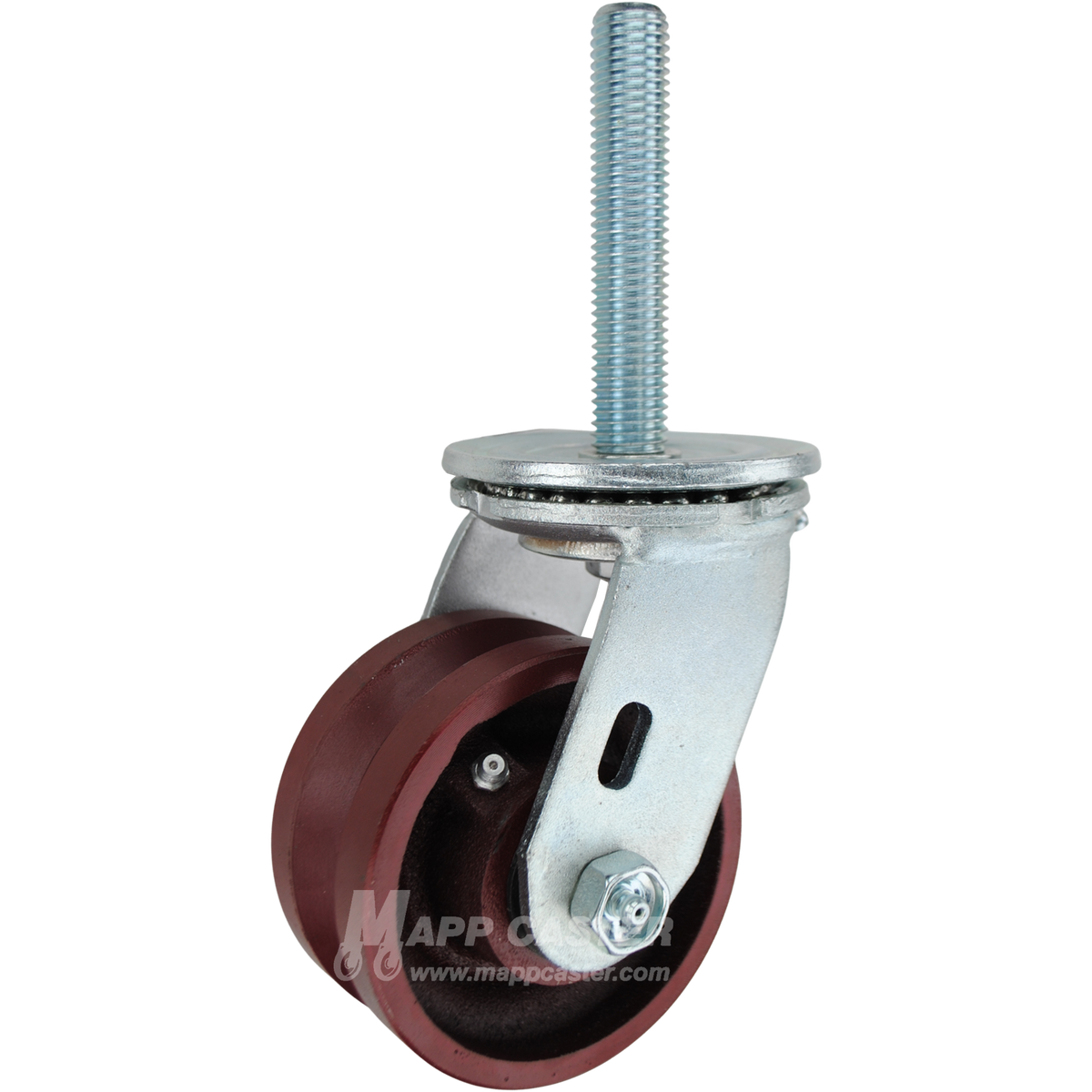

4" x 2" Ductile Steel V-Groove Wheel Swivel Caster, 3/4"-10 x 4 Threaded Stem - 1250 Lbs Capacity

4" x 2" Ductile Steel V-Groove Wheel Swivel Caster, 3/4"-10 x 4 Threaded Stem - Part # 7RTP042DVRB

Ductile V-Groove wheels are designed to guide equipment along inverted angle iron tracks but can also function without a track due to the tread on both sides of the V-groove. Made from a combination of alloys that provide excellent tensile strength, these wheels come with extra thick treads, hubs & walls. Ductile steel is a step up from cast iron, offering higher capacity & temperatures. For even greater capacity, consider the heavier-duty forged steel wheels.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Capacity: 1250 Lbs.	Stem Size: 3/4"
Wheel Diameter:4"	Stem Thread Pitch:10
Tread Width: 2"	Stem Length:4"
Tread Shape: V-groove	Overall Height:5-5/8"
Bearing Type:See Bearings Options	Caster Rig Material Type:Cold Rolled Steel
Wheel Type:Ductile Steel	Caster Rig Color/Finish:Silver Zinc Plated
Wheel Durometer:Rockwell 74B	Swivel Radius: 3-1/4"
Wheel Color: Red	Swivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range: -45˚F to 800˚F	Weight: 6.504 Lbs
Link to Replacement Wheel: QVGR4MO	Link to Matching Swivel Brake Caster: 7RTP042DVRBTLB

Capacity: 1250 lbs.

Wheel Diameter:4"

Tread Width:2"

Stem Size:3/4"

Stem Thread Pitch: 10

Stem Length: 4"

Tread Shape:V-Groove

Bearing Type: See Bearings Options

Wheel Type: Ductile Steel

Wheel Durometer:Rockwell 74B

Overall Height:5-5/8"

Swivel Radius:3-1/4"

Swivel Construction: Double Ball Raceway - 5/8" Kingpin

Caster Rig Material Type: Cold Rolled Steel

Caster Rig Color/Finish:Silver Zinc Plated

Wheel Color:Red

Temp Range:-45°F to 800°F

Weight:6.504 Lbs

Link to Replacement Wheel:QVGR4MO

Link to Matching Swivel Brake Caster:7RTP042DVRBTLB
