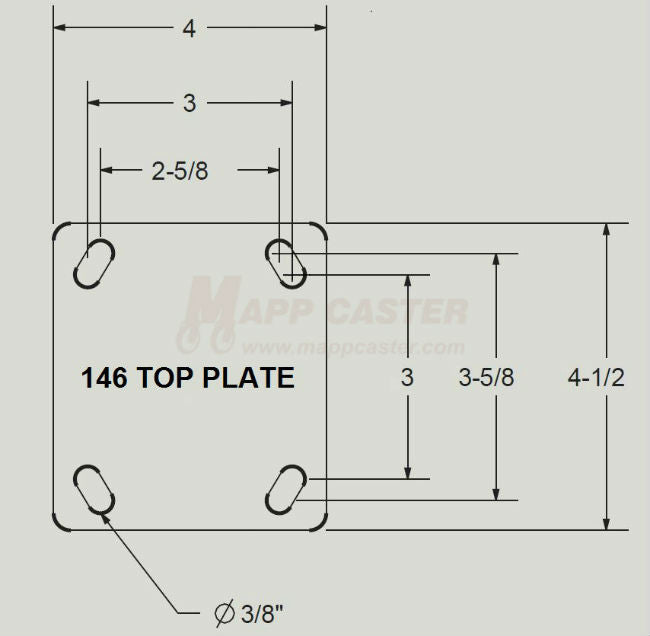

4" x 2" Cast lron V-Groove Wheel Rigid Brake Caster - 600 Lbs Capacity TOP VIEW
4" x 2" Cast lron V-Groove Wheel Rigid Brake Caster - 600 Lbs Capacity FRONT VIEW

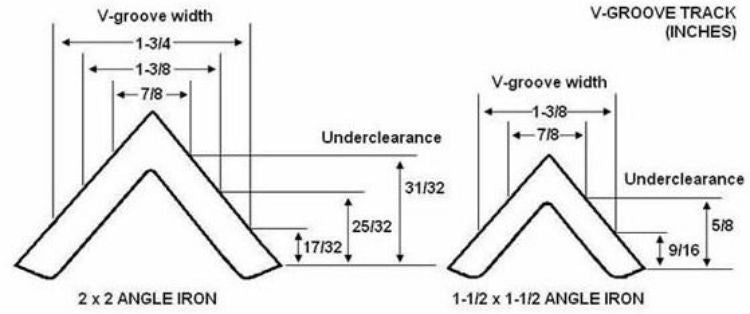

4" x 2" Cast lron V-Groove Wheel Rigid Brake Caster - 600 Lbs Capacity TRACK GUIDE

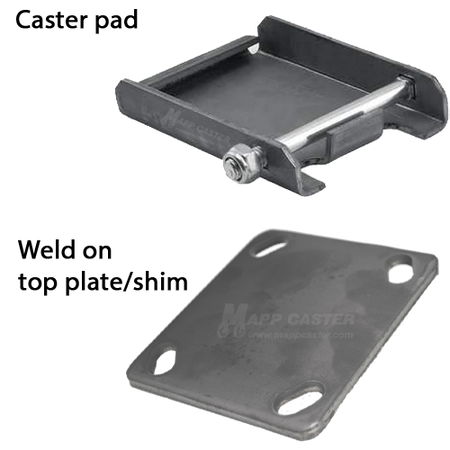

4" x 2" Cast lron V-Groove Wheel Rigid Brake Caster - 600 Lbs Capacity CASTER PAD

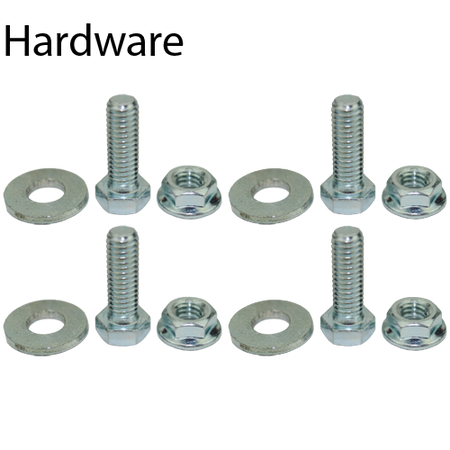

4" x 2" Cast lron V-Groove Wheel Rigid Brake Caster - 600 Lbs Capacity HARDWARE
4" x 2" Cast lron V-Groove Wheel KPL Rigid Brake Caster - 600 Lbs Capacity SIDE VIEW
4" x 2" Cast lron V-Groove Wheel Rigid Brake Caster - 600 Lbs Capacity TOP VIEW
4" x 2" Cast lron V-Groove Wheel Rigid Brake Caster - 600 Lbs Capacity FRONT VIEW
4" x 2" Cast lron V-Groove Wheel Rigid Brake Caster - 600 Lbs Capacity TRACK GUIDE
4" x 2" Cast lron V-Groove Wheel Rigid Brake Caster - 600 Lbs Capacity CASTER PAD
4" x 2" Cast lron V-Groove Wheel Rigid Brake Caster - 600 Lbs Capacity HARDWARE

4" x 2" Cast lron V-Groove Wheel Rigid Brake Caster

SKU

146VIRB420RB
$54.07

4" x 2" Cast Iron V-Groove Wheel Rigid Brake Caster - Part #: 146VIRB420RB

V-Groove wheels are designed to guide equipment by rolling on inverted angle iron track, however, they can also operate while not on a track thanks to the tread on either side of the v-groove. The cast iron wheel offers a strong, resilient, cost effective solution for heavy loads. If more capacity is needed, check out the heavier duty ductile steel & forged steel wheels.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Load Capacity (lbs.): 600

Link to Matching Swivel Brake Caster: 146VIR420SB

Link to Matching Swivel Caster with Total Locking Brake: 146VIR420SBTL
Wheel Diameter: 4" Wheel Durometer: Brinell 145
Tread Width: 2" Wheel Color: Black
Wheel Type: Cast Iron V-Groove Swivel or Rigid Caster: Rigid
Wheel Bearing Type: See Bearings Options Swivel Radius: N/A
Overall Height: 5-5/8" Swivel Construction:  N/A
Temp Range: - 45°F to 600°F  Mounting Plate: 4" x 4-1/2"
V-Groove Width: 7/8" Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
V-Groove Depth: 7/16" Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LVG420 Weight: 5.7 Lbs
