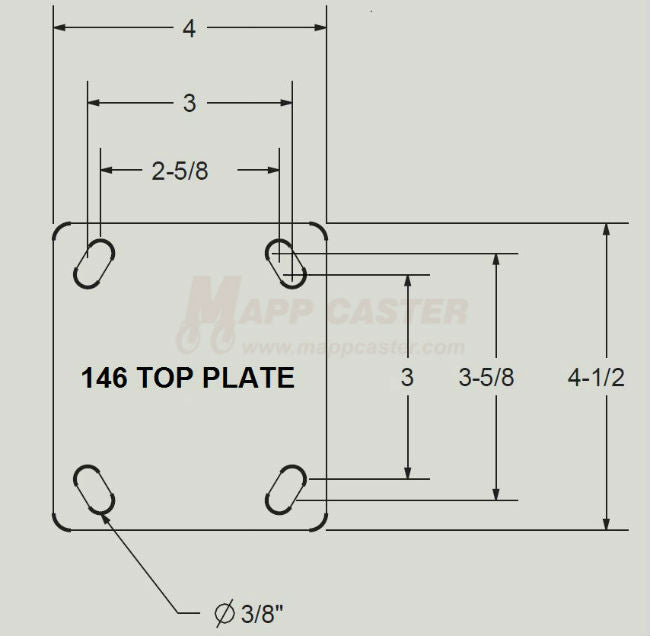

4" x 2" Cast Iron Wheel Swivel Caster - 900 Lbs Capacity Diagram for 4in. Caster Cast Iron Top Down View
4" x 2" Cast Iron Wheel Swivel Caster - 900 Lbs Capacity Cast Iron Cater Thick Tread
4" x 2" Cast Iron Wheel Swivel Caster - 900 Lbs Capacity Cast Iron Caster 4in. Thicker Spokes
4" x 2" Cast Iron Wheel Swivel Caster - 900 Lbs Capacity Cast Iron Caster 4in. Thicker Hub
4" x 2" Cast Iron Wheel Swivel Caster - 900 Lbs Capacity Cast Iron Caster 4in. Swivel Accessories
4" x 2" Cast Iron Wheel Swivel Caster - 900 Lbs Capacity Cast Iron Caster 4in. Swivel Pads
4" x 2" Cast Iron Wheel Swivel Caster - 900 Lbs Capacity optional hardware
4" x 2" Cast Iron Wheel Swivel Caster with Face Contact Brake - 900 Lbs Capacity Part # 146CIRB420SFCB
4" x 2" Cast Iron Wheel Swivel Caster - 900 Lbs Capacity Diagram for 4in. Caster Cast Iron Top Down View
4" x 2" Cast Iron Wheel Swivel Caster - 900 Lbs Capacity Cast Iron Cater Thick Tread
4" x 2" Cast Iron Wheel Swivel Caster - 900 Lbs Capacity Cast Iron Caster 4in. Thicker Spokes
4" x 2" Cast Iron Wheel Swivel Caster - 900 Lbs Capacity Cast Iron Caster 4in. Thicker Hub
4" x 2" Cast Iron Wheel Swivel Caster - 900 Lbs Capacity Cast Iron Caster 4in. Swivel Accessories
4" x 2" Cast Iron Wheel Swivel Caster - 900 Lbs Capacity Cast Iron Caster 4in. Swivel Pads
4" x 2" Cast Iron Wheel Swivel Caster - 900 Lbs Capacity optional hardware

4" x 2" Cast Iron Wheel Swivel Caster with Face Contact Brake - 900 Lbs Capacity

SKU

146CIRB420SFCB
$42.52

4" x 2" Cast Iron Swivel Caster with Face Contact Brake - Part # 146CIRB420SFCB

Cast iron is the industry standard metal caster wheel used across a wide range of heavy duty applications. This wheel differs from traditional cast iron designs because it is classified as semi-steel. With reduced carbon content & additional steel blended into the casting, it delivers improved capacities, strength, durability & impact resistance compared to standard cast iron wheels. In addition to its stronger material composition, this wheel also features heavier duty spokes for added reinforcement & durability.

While cast iron is very strong, it is tough on floors & could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane casters. For applications requiring more capacity, temperature resistance & impact strength, check out our other steel casters caster options.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

* This brake kit has a maximum temperature rating of 180°F due to its plastic pedal construction.

* This face contact brake is not compatible with all casters. However, we've found this particular caster to be one of the few that pairs effectively with it. These brakes are not intended for use on slopes or inclined surfaces. Excessive force or pushing against the wheel may reduce braking effectiveness or cause slippage.

Specifications:

Capacity: 900 Lbs.
Mounting Plate: 4" x 4-1/2"
Wheel Diameter:4"
Bolt Hole Pattern:2-5/8" x 3-5/8" slotted to 3" x 3"
Tread Width: 2"
Mounting Bolt Size:3/8" or Smaller
Tread Shape:Flat
Overall Height:5-5/8"
Bearing Type:See Bearings Options
Caster Rig Material Type:Cold Rolled Steel
Wheel Type:Cast Iron
Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Brinell 145
Swivel Radius: 6-1/4"
Wheel Color: Silver
Swivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range: -45˚F to 180˚F
Weight: 6.568 Lbs
Link to Replacement Wheel: QSTL4M0
Link to Matching Rigid Brake Caster: 146CIRB420RB
Capacity icon Capacity: 900 lbs.
Wheel Type iconWheel Diameter:4"
Wheel Diameter icon Tread Width:2"
Tread Width icon Mounting Plate:4" x 4-1/2"
Hub Length (without Bearings) icon
Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Hub Length (with Bearings) icon
Mounting Bolt Size: 3/8" or Smaller
Bearing Type iconTread Shape:Flat
Plain Bore ID icon Bearing Type: See Bearings Options
Accepted Axle/Bearing ID iconWheel Type: Cast Iron
Wheel Durometer iconWheel Durometer:Brinell 145
Wheel Tread Shape iconOverall Height:5-5/8"
Wheel Tread Shape iconSwivel Radius:6-1/4"
Wheel Tread Shape iconSwivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range icon Caster Rig Material Type: Cold Rolled Steel
Wheel Color iconCaster Rig Color/Finish:Bright Zinc Plated
Weight iconWheel Color:Silver
Wheel Color iconTemp Range:-45ËšF to 180ËšF
Weight icon Weight:6.568 Lbs
Wheel Color iconLink to Replacement Wheel:QSTL4M0
Weight icon Link to Matching Rigid Brake Caster:146CIRB420RB
