4" x 2" Cast Iron Wheel Kingpinless Swivel Caster with Face Contact Brake - 900 Lbs Capacity Part # P51042CIRBFCB
4" x 2" Cast Iron Wheel Swivel Caster - 900 Lbs Capacity Cast Iron Cater Thick Tread
4" x 2" Cast Iron Wheel Swivel Caster - 900 Lbs Capacity Cast Iron Caster 4in. Thicker Spokes
4" x 2" Cast Iron Wheel Swivel Caster - 900 Lbs Capacity Cast Iron Caster 4in. Thicker Hub
4" x 2" Cast Iron Wheel Kingpinless Swivel Caster with Face Contact Brake - 900 Lbs Capacity Part # P51042CIRBFCB
4" x 2" Cast Iron Wheel Swivel Caster - 900 Lbs Capacity Cast Iron Cater Thick Tread
4" x 2" Cast Iron Wheel Swivel Caster - 900 Lbs Capacity Cast Iron Caster 4in. Thicker Spokes
4" x 2" Cast Iron Wheel Swivel Caster - 900 Lbs Capacity Cast Iron Caster 4in. Thicker Hub

4" x 2" Cast Iron Wheel Kingpinless Swivel Caster with Face Contact Brake - 900 Lbs Capacity

SKU

P51042CIRBFCB
$95.60

4" x 2" Cast Iron Wheel Kingpinless Swivel Caster with Face Contact Brake - Part # P51042CIRBFCB

Cast Iron is the standard metal wheel used by most unless a heavier capacity or greater impact strength metal wheel is needed. While cast iron is very strong, it is tough on floors & could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane wheels. For applications requiring more capacity or impact strength, check out the ductile steel & forged steel wheel caster options.

ALL 2” wide wheels are heavy duty cast iron & come with thicker treads, stronger spokes, & larger hub diameter compared to the standard cast iron.

* This brake kit has a maximum temperature rating of 180°F due to its plastic pedal construction.

* Our kingpinless swivel caster rigs outlast traditional kingpin designs by preventing stretch-induced plate & fork separation. Providing more durability & more capacity (depending on the wheel) while reducing downtime and replacements."

* This face contact brake is not compatible with all casters. However, we've found this particular caster to be one of the few that pairs effectively with it. These brakes are not intended for use on slopes or inclined surfaces. Excessive force or pushing against the wheel may reduce braking effectiveness or cause slippage.

Specifications:

Capacity: 900 Lbs.
Mounting Plate: 4" x 4-1/2"
Wheel Diameter:4"

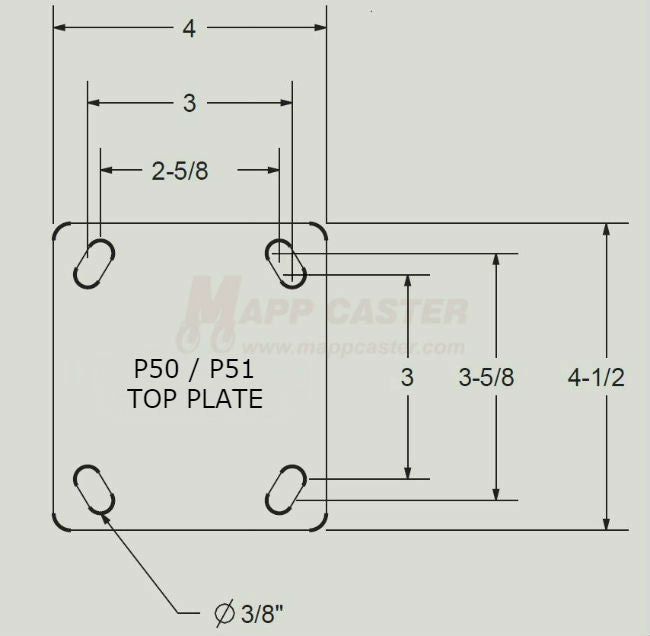

Bolt Hole Pattern:2-5/8" x 3-5/8" slotted to 3" x 3"
Tread Width: 2"
Mounting Bolt Size:3/8" or Smaller
Tread Shape:Flat
Overall Height:5-5/8"
Bearing Type:See Bearings Options
Caster Rig Material Type:AISI 1045 Steel
Wheel Type:Cast Iron
Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Brinell 145
Swivel Radius: 6-1/4"
Wheel Color: Silver
Swivel Construction: Kingpinless - Heat Treated
Precision Machined Raceway
Temp Range: -45˚F to 180˚F
Weight: 7.86 Lbs
Link to Replacement Wheel: QSTL4M0
Link to Matching Rigid Brake Caster: P50042CIRBTLB
Capacity icon Capacity: 900 lbs.
Wheel Type iconWheel Diameter:4"
Wheel Diameter icon Tread Width:2"
Tread Width icon Mounting Plate:4" x 4-1/2"
Hub Length (without Bearings) icon
Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"
Hub Length (with Bearings) icon
Mounting Bolt Size: 3/8" or Smaller
Bearing Type iconTread Shape:Flat
Plain Bore ID icon Bearing Type: See Bearings Options
Accepted Axle/Bearing ID iconWheel Type: Cast Iron
Wheel Durometer iconWheel Durometer:Brinell 145
Wheel Tread Shape iconOverall Height:5-5/8"
Wheel Tread Shape iconSwivel Radius:6-1/4"
Wheel Tread Shape iconSwivel Construction: Kingpinless - Heat Treated Precision Machined Raceway
Temp Range icon Caster Rig Material Type: AISI 1045 Steel
Wheel Color iconCaster Rig Color/Finish:Bright Zinc Plated
Weight iconWheel Color:Silver
Wheel Color iconTemp Range:-45˚F to 180˚F
Weight icon Weight:7.86 Lbs
Wheel Color iconLink to Replacement Wheel:QSTL4M0
Weight icon Link to Matching Rigid Brake Caster:P50042CIRBTLB
