4" x 2" Cast Iron Wheel Kingpinless Swivel Brake Caster

SKU

P51042CIRBTLB
$84.79

4" x 2" Cast Iron Wheel Kingpinless Swivel Brake Caster - Part # P51042CIRBTLB

Cast Iron is the standard metal wheel used by most unless a heavier capacity or greater impact strength metal wheel is needed. While cast iron is very strong, it is tough on floors & could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane wheels. For applications requiring more capacity or impact strength, check out the ductile steel & forged steel wheel caster options.

ALL 2” wide wheels are heavy duty cast iron & come with thicker treads, stronger spokes, & larger hub diameter compared to the standard cast iron.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

* Our kingpinless swivel caster rigs outlast traditional kingpin designs by preventing stretch-induced plate & fork separation. Providing more durability & more capacity (depending on the wheel) while reducing downtime and replacements."

Specifications:

Load Capacity (lbs.): 900 lbs. Link to Matching Rigid Brake Caster: P50042CIRBTLB
Wheel Diameter: 4" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Cast Iron Swivel or Rigid Caster: Swivel with Brake
Wheel Bearing Type: See Bearing Options Swivel Radius: 3-1/4"
Overall Height: 5-5/8" Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway
Temp Range: -45°F to 600°F  Mounting Plate: 4" x 4-1/2"

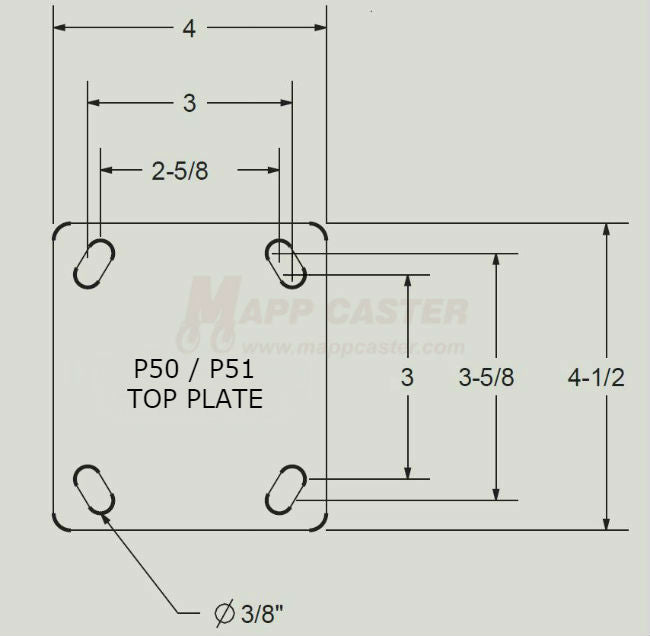

Wheel Durometer: Brinell 145  Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"

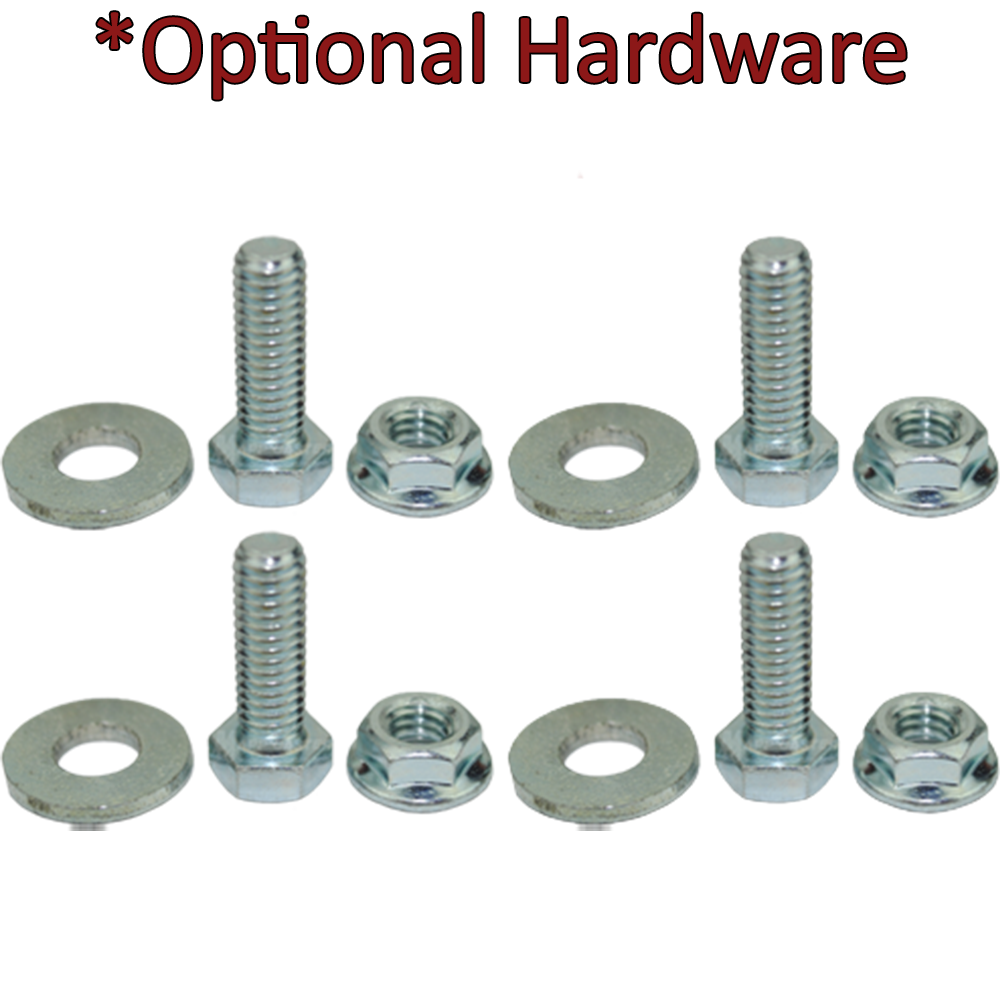

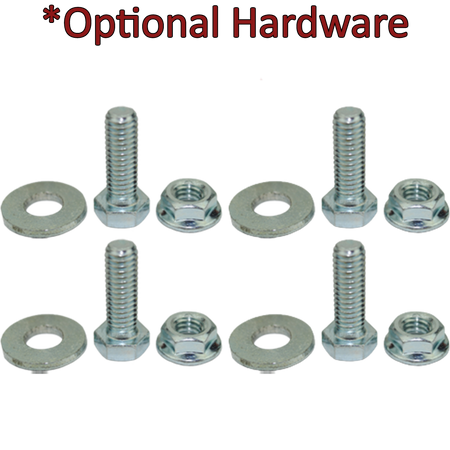

Wheel Color: Silver Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: QSTL4M0 Weight: 7.626 lbs.
