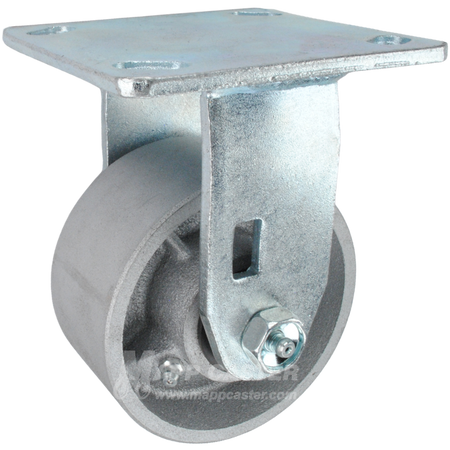

4" x 2" Cast Iron Wheel KPL Rigid Caster - 900 Lbs Capacity SIDE VIEW

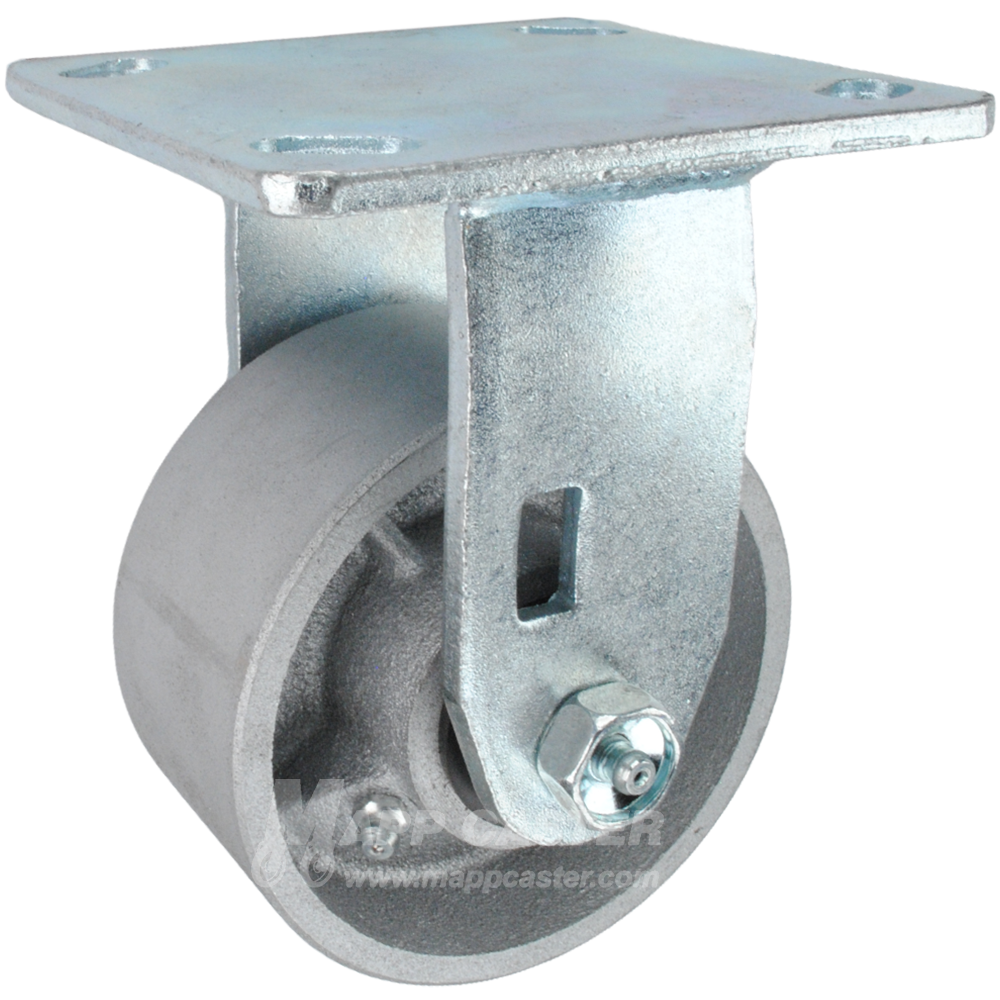

4" x 2" Cast Iron Wheel Rigid Caster - 900 Lbs Capacity side view
4" x 2" Cast Iron Wheel Rigid Caster - 900 Lbs Capacity front view
4" x 2" Cast Iron Wheel Rigid Caster - 900 Lbs Capacity thicker tread
4" x 2" Cast Iron Wheel Rigid Caster - 900 Lbs Capacity thicker spokes
4" x 2" Cast Iron Wheel Rigid Caster - 900 Lbs Capacity thicker hub
4" x 2" Cast Iron Wheel KPL Rigid Caster - 900 Lbs Capacity SIDE VIEW
4" x 2" Cast Iron Wheel Rigid Caster - 900 Lbs Capacity side view
4" x 2" Cast Iron Wheel Rigid Caster - 900 Lbs Capacity front view
4" x 2" Cast Iron Wheel Rigid Caster - 900 Lbs Capacity thicker tread
4" x 2" Cast Iron Wheel Rigid Caster - 900 Lbs Capacity thicker spokes
4" x 2" Cast Iron Wheel Rigid Caster - 900 Lbs Capacity thicker hub

4" x 2" Cast Iron Wheel Kingpinless Rigid Caster

SKU

P50042CIRB
$29.05

4" x 2" Cast Iron Wheel Kingpinless Rigid Caster - Part # P50042CIRB

Cast Iron is the standard metal wheel used by most unless a heavier capacity or greater impact strength metal wheel is needed. While cast iron is very strong, it is tough on floors & could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane wheels. For applications requiring more capacity or impact strength, check out the ductile steel & forged steel wheel caster options.

ALL 2” wide wheels are heavy duty cast iron & come with thicker treads, stronger spokes, & larger hub diameter compared to the standard cast iron.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Load Capacity (lbs.): 900 lbs. Link to Matching Swivel Caster:  P51042CIRB

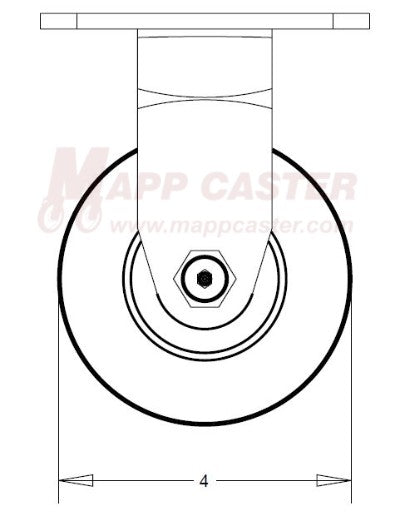

Wheel Diameter: 4" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Bright Zinc Plated
Wheel Type: Cast Iron Swivel or Rigid Caster: Rigid
Wheel Bearing Type: See Bearings Options Swivel Radius: N/A

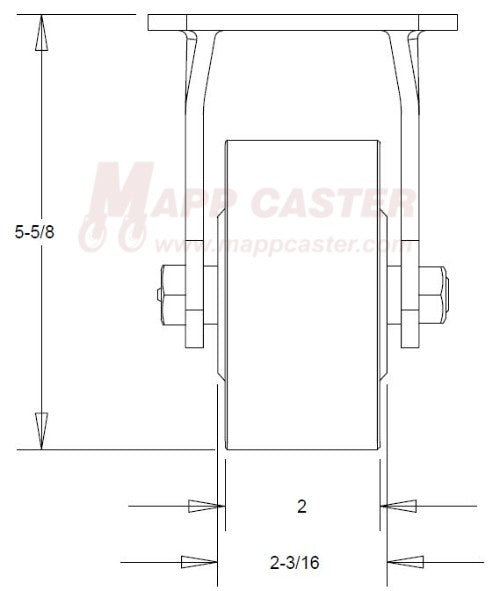

Overall Height: 5-5/8" Swivel Construction: N/A
Temp Range: -45°F to 600°F  Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Brinell 145 Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
Wheel Color: Silver Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: QSTL4M0 Weight: 5.168 lbs.
