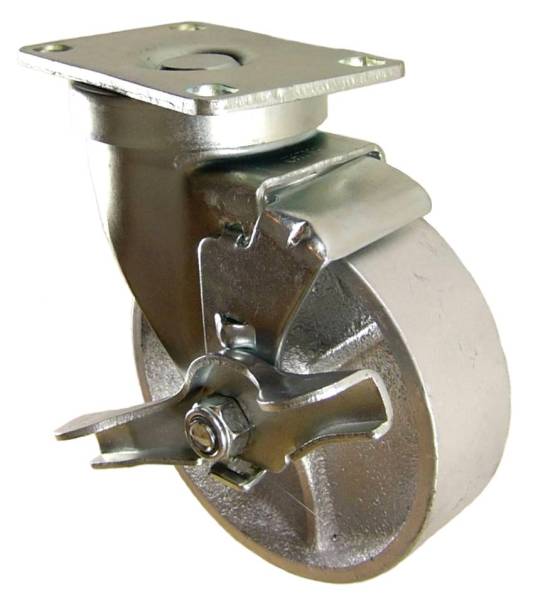

4" x 1-1/4" Semi-Steel Swivel Brake Caster
SKU
Q524001STLTLB
Regular price
$17.90
Couldn't load pickup availability
Cast iron/Semi-steel, offers a strong, resilient, cost effective solution for heavy loads. The hard tread rolls easily and allows high abrasion resistance. Smooth face allows for symmetrical ride.
Common Applications: Food Service Equipment, Light Duty Material Handling, Bakery Rack, Institutional Racks, Dollies, Cases, Displays & Wire Racking
Specifications:
| Load Capacity (lbs.): 350 | Matching Rigid Caster: Q5240R01STL |
| Wheel Diameter: 4" | Caster Rig Material Type: Cold Rolled Steel |
| Tread Width: 1-1/4" | Caster Rig Color/Finish: Bright Zinc Plated |
| Wheel Type: Cast Iron | Swivel or Rigid Caster: Swivel with brake |
| Wheel Bearing Type: Spanner Bushing | Swivel Radius: 3-13/32" |
| Overall Height: 5-1/8" | Swivel Construction: Double Ball Raceway |

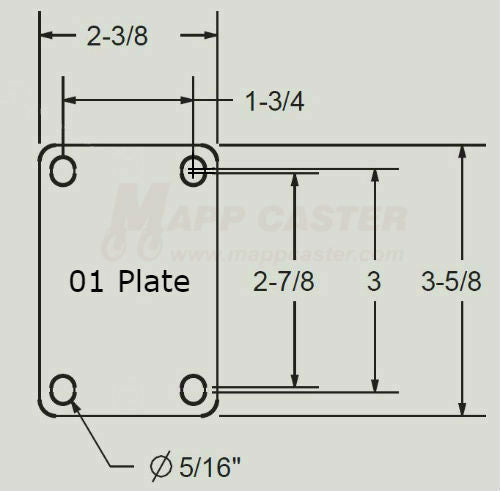

| Temp Range: -40 to 600F | Mounting Plate: 2-3/8" x 3-5/8" |
| Wheel Durometer: Brinell 145 | Bolt Hole Pattern: 1-3/4" x 2-7/8" to 3" |
| Wheel Color: Silver | Mounting Bolt Size: 5/16" or Smaller |
| Replacement Wheel: LSS414 | Weight: 2.58 Lbs |
