4" x 1-1/4" Steel Wheel Swivel Caster - 350 Lbs Capacity
SKU
Q524001STL
Regular price
$19.59
Couldn't load pickup availability

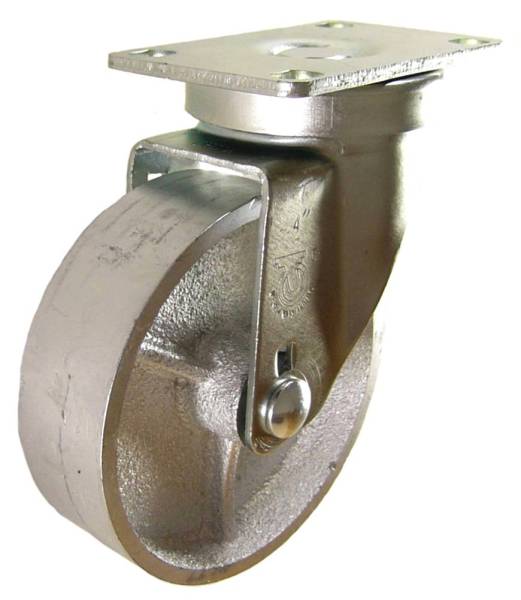

4" x 1-1/4" Steel Wheel Swivel Caster - Part # Q524001STL
Metal wheels are the most durable and longest lasting type of caster wheel available in this size. However, while metal wheels are very strong and durable, they are rough on floors and could lead to floor damage. For floor protective wheels, be sure to check out our polyurethane, rubber, and polyolefin wheels.
Specifications:
| Load Capacity (lbs.): 350 | Link to Matching Rigid Caster: Q5240R01STL |
| Wheel Diameter: 4" | Caster Rig Material Type: Cold Rolled Steel |
| Tread Width: 1-1/4" | Caster Rig Color/Finish: Bright Zinc Plated |
| Wheel Type: Cast Iron | Swivel or Rigid Caster: Swivel |
| Wheel Bearing Type: Bushing | Swivel Radius: 3-13/32" |
| Overall Height: 5-1/8" | Swivel Construction: Double Ball Raceway |

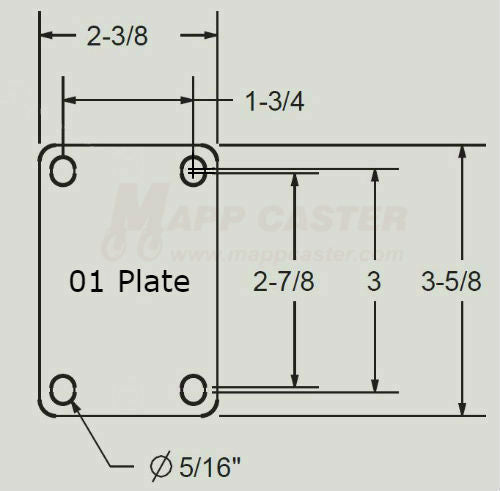

| Temp Range: -40°F to 600°F | Mounting Plate: 2-3/8" x 3-5/8" |
| Wheel Durometer: Brinell 145 | Bolt Hole Pattern: 1-3/4" x 2-7/8" to 3" |
| Wheel Color: Silver | Mounting Bolt Size: 5/16" or Smaller |
| Link to Replacement Wheel: LSS414 | Weight: 2.58 Lbs |

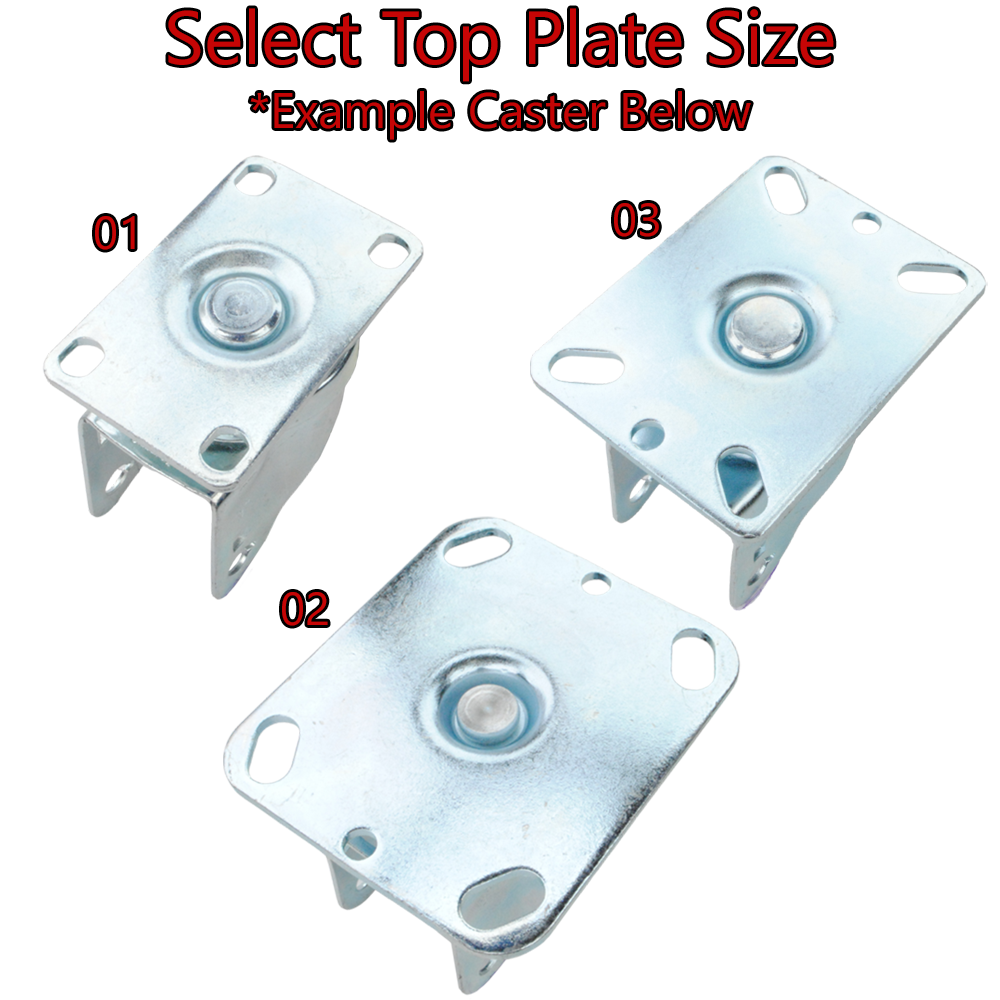

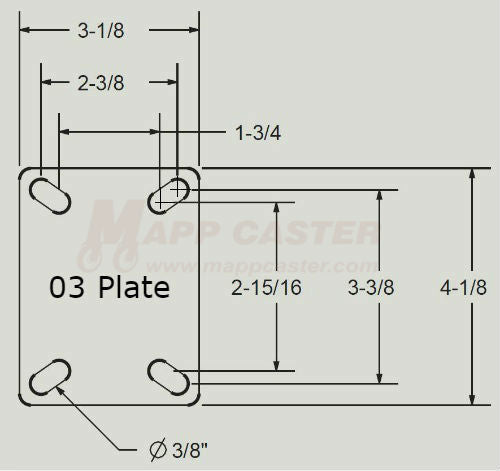

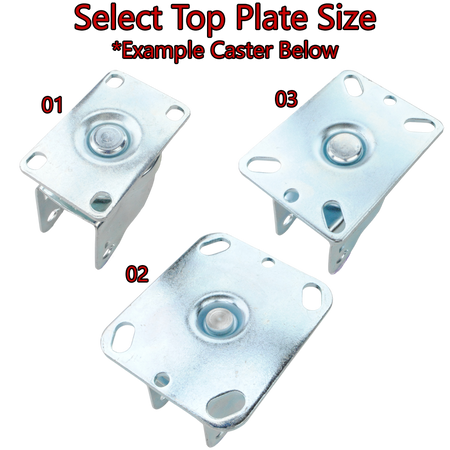

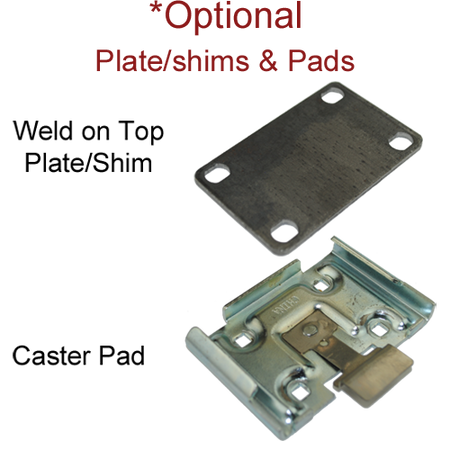

| Part Number for Optional 03 Plate Caster: Q504003STL |

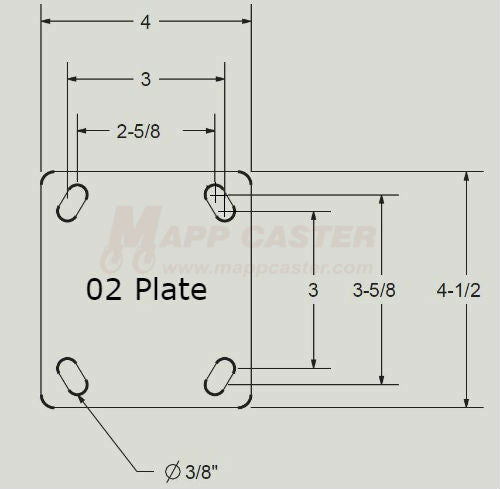

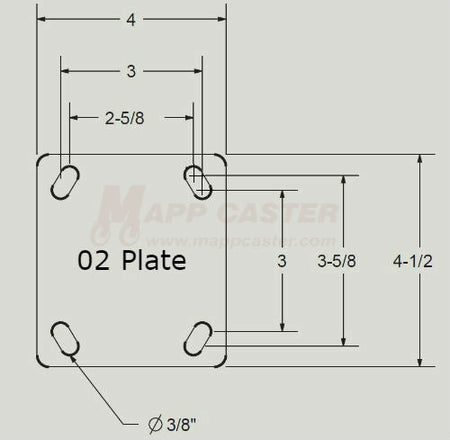

| Part Number for Optional 02 Plate Caster: Q504002STL |
