4-1/8" x 1-7/8" Flanged Forged Steel Wheel KPL Rigid Caster - 2000 Lbs Capacity SIDE VIEW
4-1/8" x 1-7/8" Flanged Forged Steel Wheel KPL Rigid Caster - 2000 Lbs Capacity SIDE VIEW

4-1/8" x 1-7/8" Flanged Forged Steel Wheel Kingpinless Rigid Caster

SKU

P50042FTBB
$91.38

4-1/8" x 1-7/8" Flanged Forged Steel Wheel Kingpinless Rigid Caster - Part # P50042FTBB

Flanged wheels are designed to roll on rails and are designed for the toughest loads. The solid steel wheel is made machined steel. It offers the maximum weight capacity, impact strength, and durability of all other wheels.

*Recommended Rail Type: ASCE16

Specifications:

Load Capacity (lbs.):  2000 lbs. Link to Matching Swivel Caster:
P51042FTBB
Wheel Diameter:  3-1/2" Smaller Diameter, 4-1/2" Larger Flange Diameter
 Caster Rig Material Type:  Rockwell 80B
Tread Width: 1-7/8" Wide Overall (1-7/16" Roll-able Tread, 7-16" Wide Flange)
 Caster Rig Color/Finish: Chrome
Wheel Type: Solid Steel Flanged Swivel or Rigid Caster: Rigid
Wheel Bearing Type: Ball Bearing Swivel Radius: N/A
Overall Height: 5-5/8" Swivel Construction: N/A

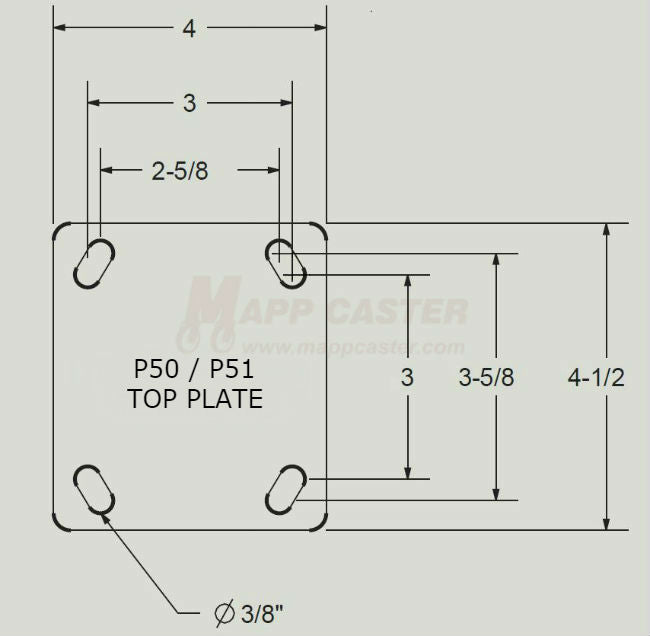

Temp Range: -40°F to 180°F  Mounting Plate: 4" x 4-1/2"
Wheel Durometer: Rockwell 80B Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
Wheel Color: Silver Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LFT3J3012 Weight:  lbs.
