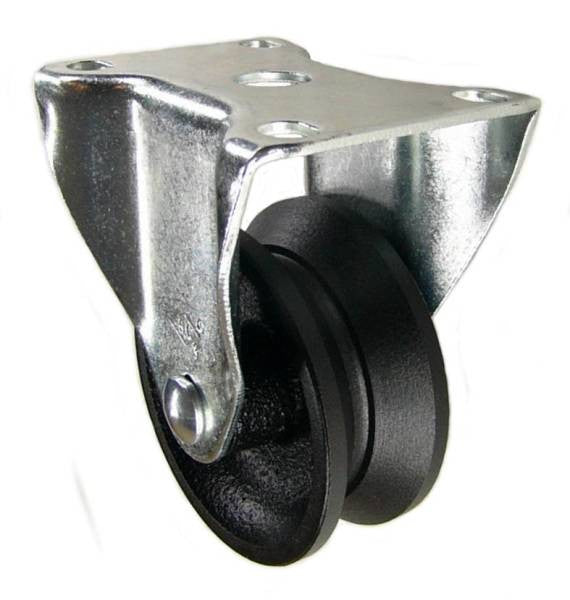

3" x 1-1/4" V-Groove Cast Iron Rigid Caster
SKU
Q5230R01VGCouldn't load pickup availability
V-groove caster wheels are designed to guide equipment by rolling on inverted angle iron track. Elevated track minimizes problems caused by floor debris. The relief groove at the base of the "V" equalizes the load on each face of the angle. When not operating on track, the considerable wheel tread on each side of the V-groove allows for use on smooth floors.
Cast iron/Semi-steel wheel offers a strong, resilient, cost effective solution for heavy loads. The hard tread rolls easily and allows high abrasion resistance; Smooth face allows for symmetrical ride
Caster Specifications
| Load Capacity (lbs.): 350 | Matching Swivel Caster: Q523001VGR |
| Wheel Diameter: 3" | Wheel Hardness: Brinell 145 |
| Tread Width: 1-1/4" | Wheel Color: Black |
| Wheel Type: Cast Iron V-Groove | Swivel or Rigid Caster: Rigid |
| Wheel Bearing Type: Plain Bore | Swivel Radius: N/A |
| Overall Height: 4-1/8" | Swivel Construction: N/A |
| Temp Range: - 40°F to 600°F | Mounting Plate: 2-3/8" x 3-5/8" |
| V-Groove Width: 7/8" | Bolt Hole Pattern: 1-3/4" x 2-7/8" to 3" |
| V-Groove Depth: 7/16" | Mounting Bolt Size: 5/16" or Smaller |
| Replacement Wheel: LVG314 | Weight: 1.47 Lbs |
