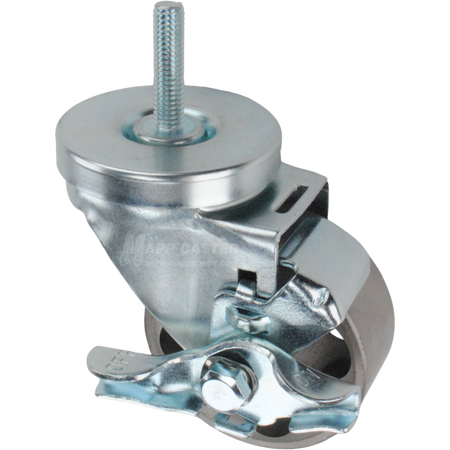

Metal caster wheel with a top lock brake and threaded stem
Metal caster wheel with a top lock brake and threaded stem

3" x 1-1/4" Sintered Steel Wheel Swivel Brake Caster, 3/8"-16 x 1-1/2" Threaded Stem - 250 Lbs Capacity

SKU

Q523038STLTLB
$16.95

3" x 1-1/4" Sintered Steel Wheel Swivel Brake Caster, 3/8"-16 x 1-1/2" Threaded Stem - Part # Q523038STLTLB

Sintered steel wheels are made from super compressed powdered iron that provides a strong, durable, & cost effective solution for light to medium duty loads. While metal wheels are strong, they're tough on floors and could lead to floor damage.

For heavy duty floor protective wheels, be sure to check out our polyurethane wheels.

This caster features an all-steel top lock brake that performs well in a wide range of applications, including those involving heat. The side-mounted brake pedal provides a more compact design than face contact & total lock brakes. The compact design minimizes the swivel radius, allowing the caster to spin freely 360 degrees with minimal obstruction. Casters with front-mounted brake pedals require more clearance to achieve full rotation.

Specifications:

Capacity: 250 Lbs.
Stem Size: 3/8"
Wheel Diameter:3"
Stem Thread Pitch:16
Tread Width: 1-1/4"
Stem Length:1-1/2"
Tread Shape:Flat
Overall Height:4"
Bearing Type:None
Caster Rig Material Type:Q235 Steel
Wheel Type:Sintered Steel
Caster Rig Color/Finish:Silver Zinc Plated
Wheel Durometer: Brinell 145
Swivel Radius: 2-15/16"
Wheel Color: Silver
Swivel Construction: Double Ball Raceway - Kingpin (w/ Dust Cover)
Temp Range: -40˚F to 500˚F
Weight: 2.136 Lbs
Link to Replacement Wheel: QSTL3H3
Link to Matching Swivel Caster: Q523038STL
Capacity icon Capacity: 250 lbs.
Wheel Type iconWheel Diameter:3"
Wheel Diameter icon Tread Width:1-1/4"
Tread Width icon Stem Size:3/8"
Hub Length (without Bearings) icon
Stem Thread Pitch: 16
Hub Length (with Bearings) icon
Stem Length: 1-1/2"
Bearing Type iconTread Shape:Flat
Plain Bore ID iconBearing Type: None
Accepted Axle/Bearing ID iconWheel Type: Sintered Steel
Wheel Durometer iconWheel Durometer:Brinell 145
Wheel Tread Shape iconOverall Height:4"
Wheel Tread Shape iconSwivel Radius:2-15/16"
Wheel Tread Shape iconSwivel Construction: Double Ball Raceway - Kingpin (w/ Dust Cover)
Temp Range icon Caster Rig Material Type: Q235 Steel
Wheel Color iconCaster Rig Color/Finish:Silver Zinc Plated
Weight iconWheel Color:Silver
Wheel Color iconTemp Range:-40˚F to 500˚F
Weight icon Weight:2.136 Lbs
Wheel Color iconLink to Replacement Wheel:QSTL3H3
Weight icon Link to Matching Swivel Caster:Q523038STL
