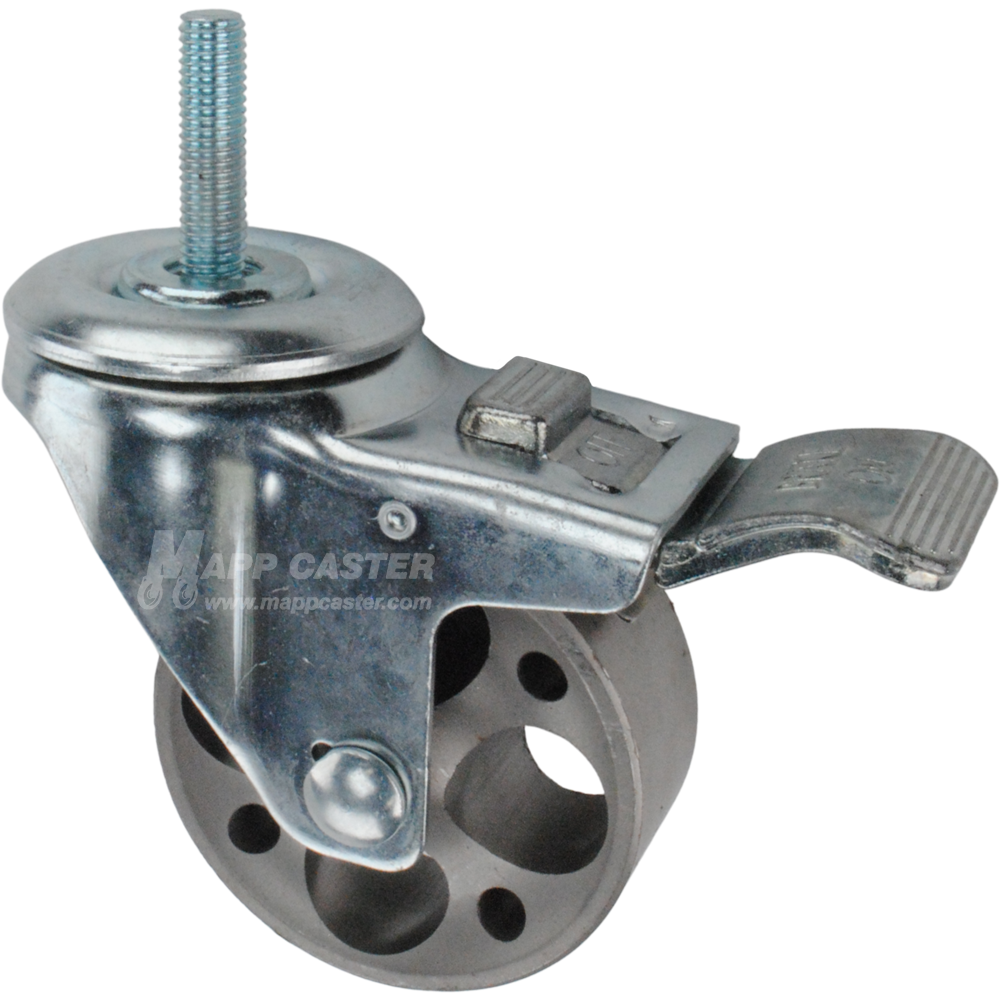

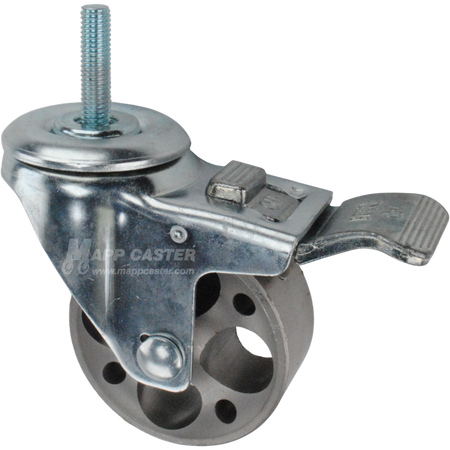

Caster wheel with a total lock brake, a 3 inch silver steel wheel and 1-1/2 inch long 10mm metal threaded stem
Caster wheel with a total lock brake, a 3 inch silver steel wheel and 1-1/2 inch long 10mm metal threaded stem

3" x 1-1/4" Sintered Steel Wheel Swivel Caster w/ Total Lock Brake, 10mm-1.5 x 1-1/2" Threaded Stem - 250 lbs Capacity

SKU

8GT30KP-STL-M10
$29.08

3" x 1-1/4" Sintered Steel Wheel Swivel Caster w/ Total Lock Brake, 10mm-1.5 x 1-1/2" Threaded Stem - Part # 8GT30KP-STL-M10

Sintered steel wheels are made from super compressed powdered iron that provides a strong, durable, & cost effective solution for light to medium duty loads. While metal wheels are strong, they're tough on floors and could lead to floor damage.

For heavy duty floor protective wheels, be sure to check out our polyurethane wheels.

* Total locking brake casters work best with softer wheels like neoprene, soft rubber, thermoplastic rubber & polyurethane. The softer wheel allows the brake pad to grip the tread effectively. While total locking brakes also work with harder wheels, a strong push may cause slight movement of the caster wheel.

* With the thin metal used in the construction of the total lock brake mechanism, the overall temperature rating of the caster is limited to 180°F.

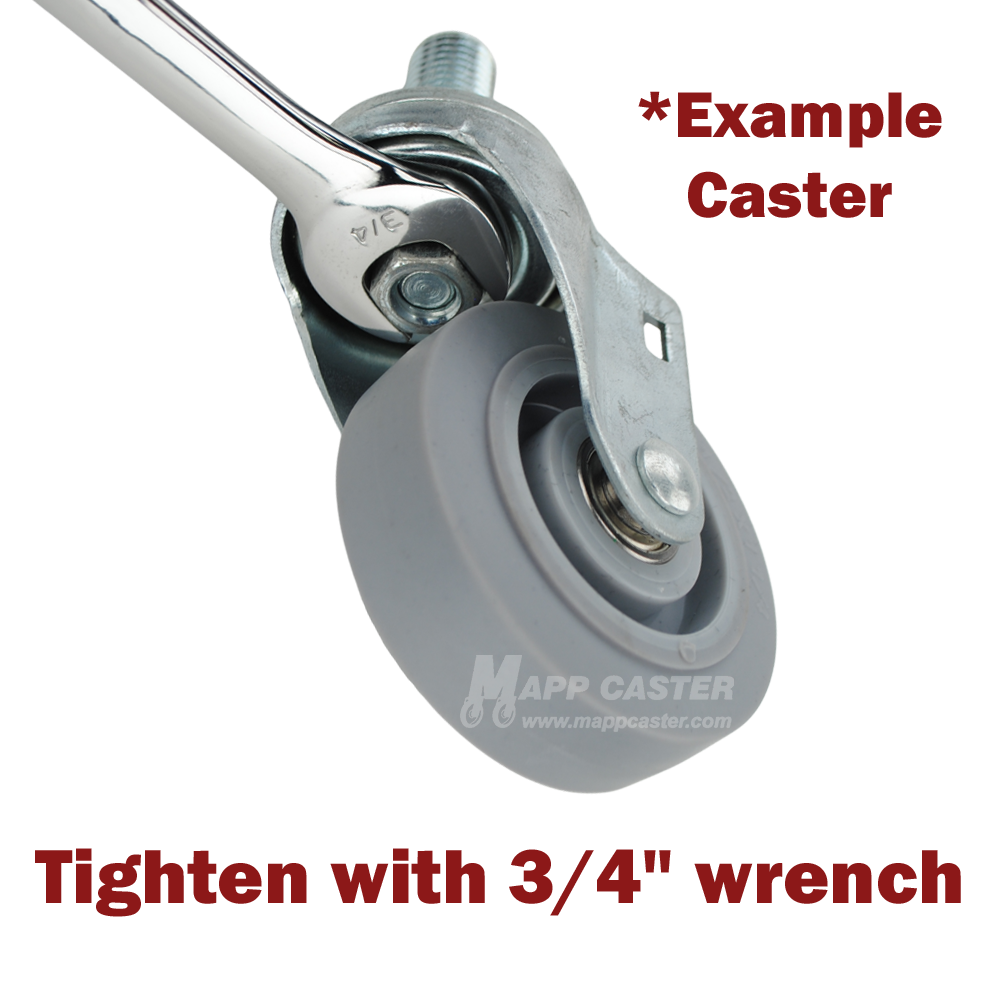

* To tighten the caster, locate the 3/4" nut on the underside of the stem & tighten with a 3/4" wrench. Refer to the product images for reference.

Specifications:

Capacity: 250 Lbs.
Stem Size: 10mm
Wheel Diameter:3"
Stem Thread Pitch:1.5
Tread Width: 1-1/4"
Stem Length:1-1/2"
Tread Shape:Flat
Overall Height:4"
Bearing Type:None
Caster Rig Material Type:Q235 Steel
Wheel Type:Sintered Steel
Caster Rig Color/Finish:Silver Zinc Plated
Wheel Durometer: Brinell 145
Swivel Radius: 4-3/8"
Wheel Color: Silver
Swivel Construction: Double Ball Raceway - Kingpin
Temp Range: -40˚F to 180˚F
Weight: 2.178 Lbs
Link to Replacement Wheel: QSTL3H3
Link to Matching Swivel Caster: 8GS30KP-STL-M10
