Caster wheel with a total lock brake, a 3 inch silver steel wheel and 1-3/4 inch metal threaded stem
Caster wheel with a total lock brake, a 3 inch silver steel wheel and 1-3/4 inch metal threaded stem

3" x 1-1/4" Sintered Steel Roller Bearing Wheel Swivel Caster w/ Total Lock Brake, 3/4"-10 x 1-3/4" Threaded Stem - 300 lbs Capacity

SKU

8GT30KP-STLRB-3/4
$43.46

3" x 1-1/4" Sintered Steel Roller Bearing Wheel Swivel Caster w/ Total Lock Brake, 3/4"-10 x 1-3/4" Threaded Stem - Part # 8GT30KP-STLRB-3/4

Sintered steel wheels are made from super compressed powdered iron that provides a strong, durable, & cost effective solution for light to medium duty loads. While metal wheels are strong, they're tough on floors and could lead to floor damage.

For heavy duty floor protective wheels, be sure to check out our polyurethane wheels.

* Total locking brake casters work best with softer wheels like neoprene, soft rubber, thermoplastic rubber & polyurethane. The softer wheel allows the brake pad to grip the tread effectively. While total locking brakes also work with harder wheels, a strong push may cause slight movement of the caster wheel.

* With the thin metal used in the construction of the total lock brake mechanism, the overall temperature rating of the caster is limited to 180°F.

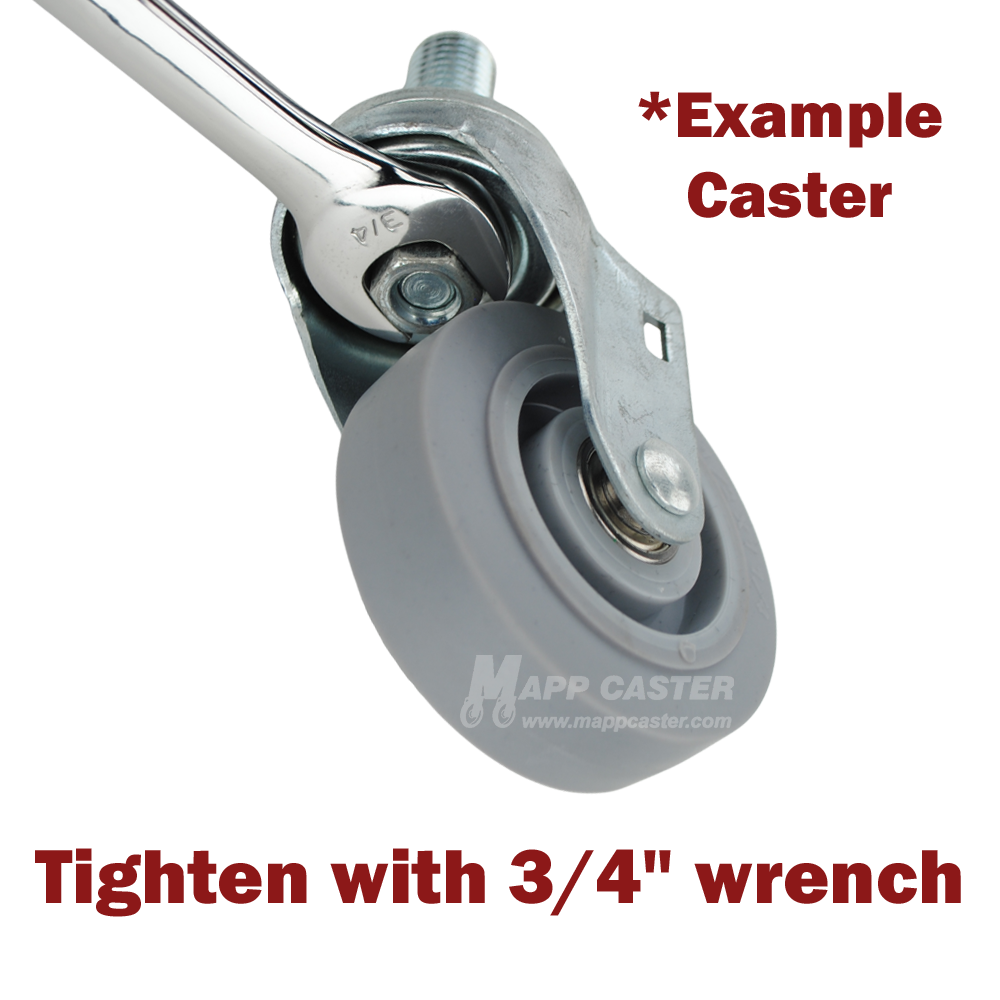

* To tighten the caster, locate the 3/4" nut on the underside of the stem & tighten with a 3/4" wrench. Refer to the product images for reference.

Specifications:

Capacity: 300 Lbs.
Stem Size: 3/4"
Wheel Diameter:3"
Stem Thread Pitch:10
Tread Width: 1-1/4"
Stem Length:1-3/4"
Tread Shape:Flat
Overall Height:4"
Bearing Type:Roller Bearing
Caster Rig Material Type:Q235 Steel
Wheel Type:Sintered Steel
Caster Rig Color/Finish:Silver Zinc Plated
Wheel Durometer: Brinell 145
Swivel Radius: 4-3/8"
Wheel Color: Silver
Swivel Construction: Double Ball Raceway - Kingpin
Temp Range: -40˚F to 180˚F
Weight: 2.584 Lbs
Link to Replacement Wheel: 503125-US
Link to Matching Swivel Caster: 8GS30KP-STLRB-3/4
Capacity icon Capacity: 300 lbs.
Wheel Type iconWheel Diameter:3"
Wheel Diameter icon Tread Width:1-1/4"
Tread Width icon Stem Size:3/4"
Hub Length (without Bearings) icon
Stem Thread Pitch: 10
Hub Length (with Bearings) icon
Stem Length: 1-3/4"
Bearing Type iconTread Shape:Flat
Plain Bore ID iconBearing Type: Roller Bearing
Accepted Axle/Bearing ID iconWheel Type: Sintered Steel
Wheel Durometer iconWheel Durometer:Brinell 145
Wheel Tread Shape iconOverall Height:4"
Wheel Tread Shape iconSwivel Radius:4-3/8"
Wheel Tread Shape iconSwivel Construction: Double Ball Raceway - Kingpin
Temp Range icon Caster Rig Material Type: Q235 Steel
Wheel Color iconCaster Rig Color/Finish:Silver Zinc Plated
Weight iconWheel Color:Silver
Wheel Color iconTemp Range:-40˚F to 180˚F
Weight icon Weight:2.584 Lbs
Wheel Color iconLink to Replacement Wheel:503125-US
Weight icon Link to Matching Swivel Caster:8GS30KP-STLRB-3/4
