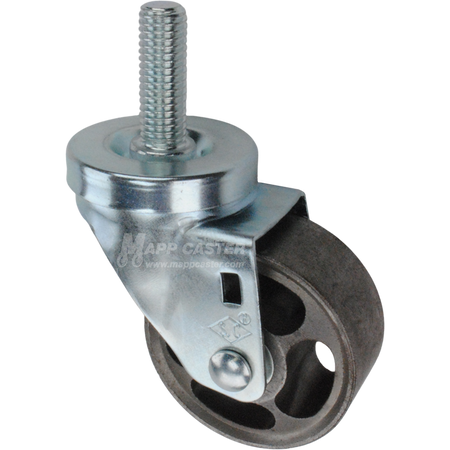

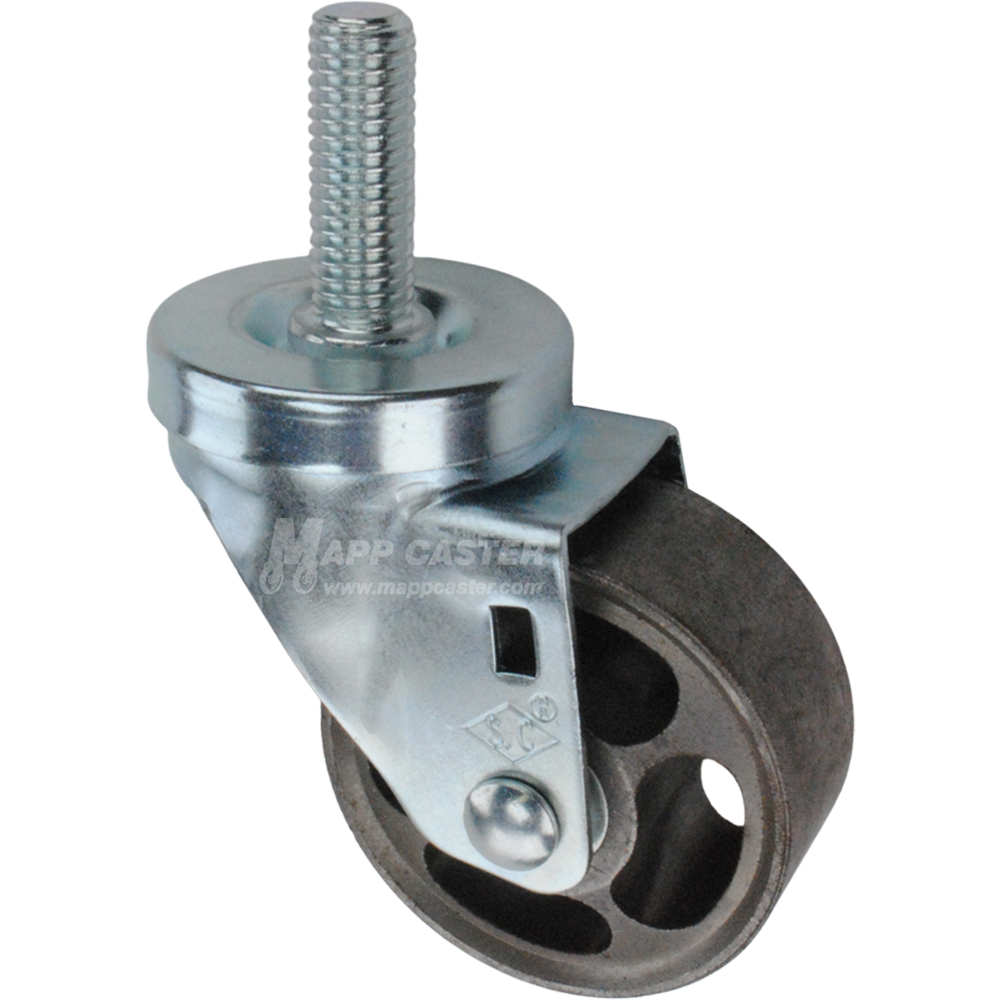

3" x 1-1/4" Sintered Steel Roller Bearing Wheel Swivel Caster, 5/8"-11 x 1-3/4" Threaded Stem - 300 lbs Capacity

SKU

Q523058STLRB
$32.36

3" x 1-1/4" Sintered Steel Roller Bearing Wheel Swivel Caster, 5/8"-11 x 1-3/4" Threaded Stem - Part # Q523058STLRB

Sintered steel wheels are made from super compressed powdered iron that provides a strong, durable, & cost effective solution for light to medium duty loads. While metal wheels are strong, they're tough on floors and could lead to floor damage.

For heavy duty floor protective wheels, be sure to check out our polyurethane wheels.

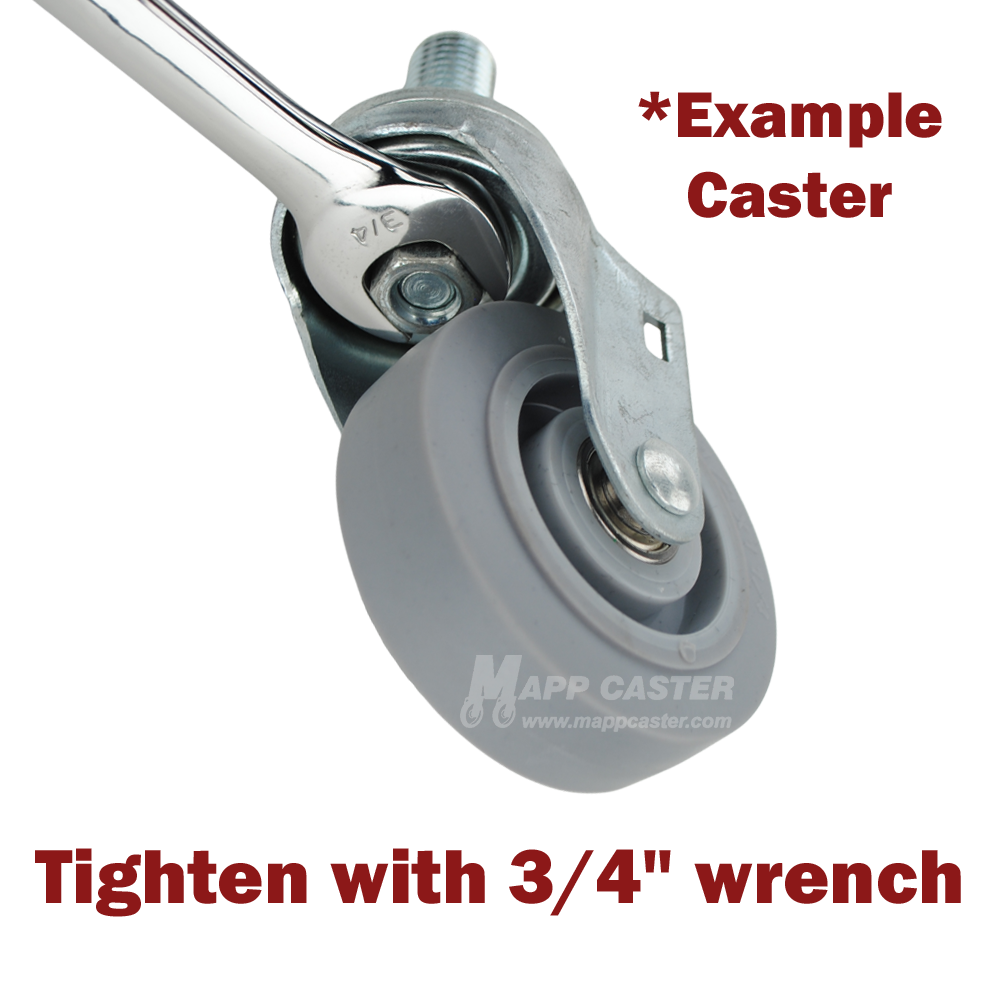

* To tighten the caster, locate the 3/4" nut on the underside of the stem & tighten with a 3/4" wrench. Refer to the product images for reference.

Specifications:

Capacity: 300 Lbs.
Stem Size: 5/8"
Wheel Diameter:3"
Stem Thread Pitch:11
Tread Width: 1-1/4"
Stem Length:1-3/4"
Tread Shape:Flat
Overall Height:4"
Bearing Type:Roller Bearing
Caster Rig Material Type:Q235 Steel
Wheel Type:Sintered Steel
Caster Rig Color/Finish:Silver Zinc Plated
Wheel Durometer: Brinell 145
Swivel Radius: 2-15/16"
Wheel Color: Silver
Swivel Construction: Double Ball Raceway - Kingpin (w/ Dust Cover)
Temp Range: -40˚F to 500˚F
Weight: 2.238 Lbs
Link to Replacement Wheel: 503125-US
Link to Matching Swivel Brake Caster: Q523058STLRBTLB
Link to Matching Swivel Caster w/ Total Lock Brake: 8GT30KP-STLRB-5/8
Link to Matching Swivel Caster w/ Face Contact Brake: Q523058STLRBFCB
