Caster wheel with a black rubber tire and metal stem thread
Caster wheel with a black rubber tire and metal stem thread

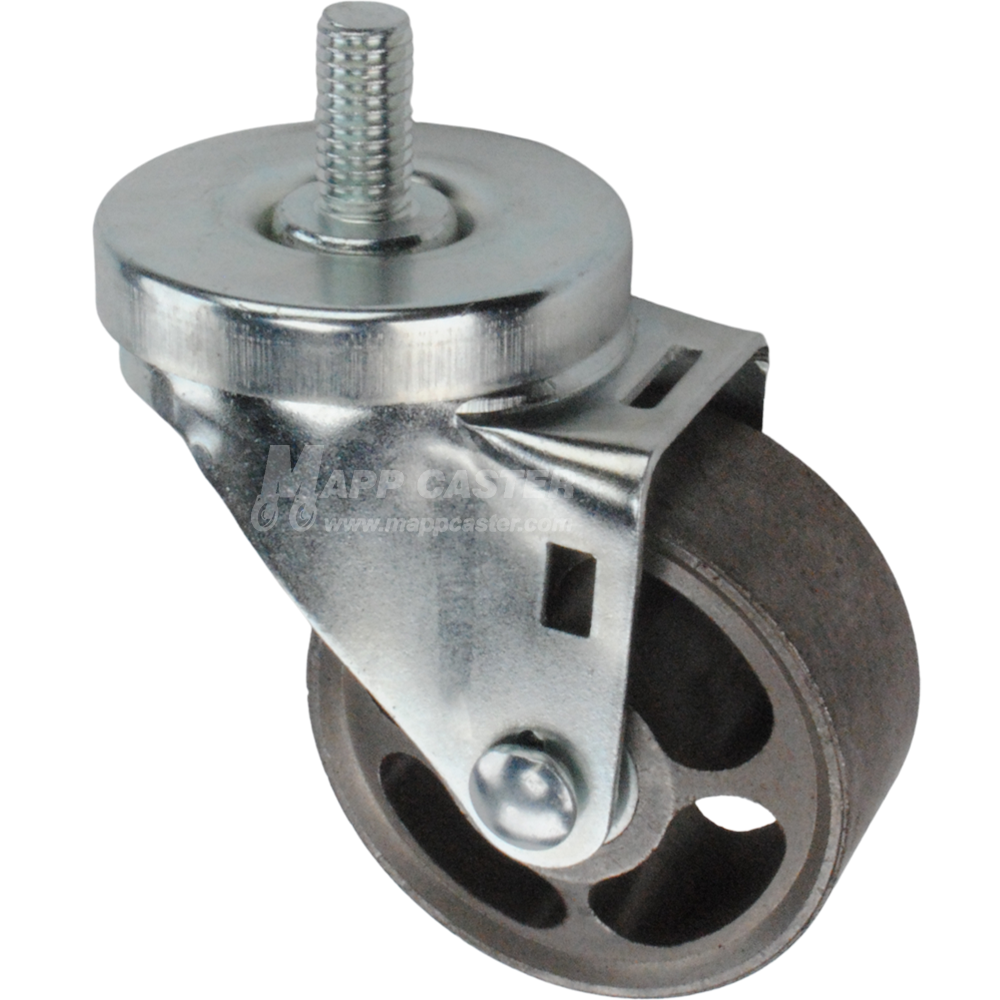

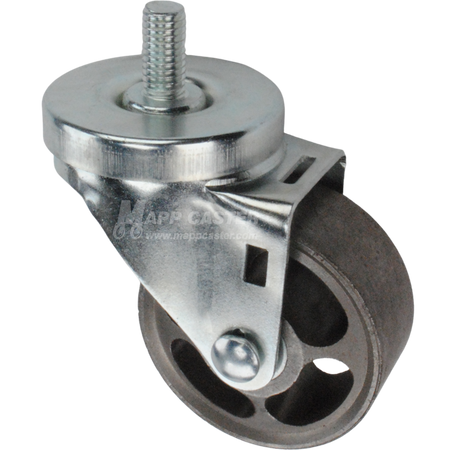

3" x 1-1/4" Sintered Steel Roller Bearing Wheel Swivel Caster, 1/2"-13 x 1" Threaded Stem - 300 Lbs Capacity

SKU

Q523021STLRB
$26.90

3" x 1-1/4" Sintered Steel Roller Bearing Wheel Swivel Caster, 1/2"-13 x 1" Threaded Stem - Part # Q523021STLRB

Sintered steel wheels are made from super compressed powdered iron that provides a strong, durable, & cost effective solution for light to medium duty loads. While metal wheels are strong, they're tough on floors and could lead to floor damage.

For heavy duty floor protective wheels, be sure to check out our polyurethane wheels.

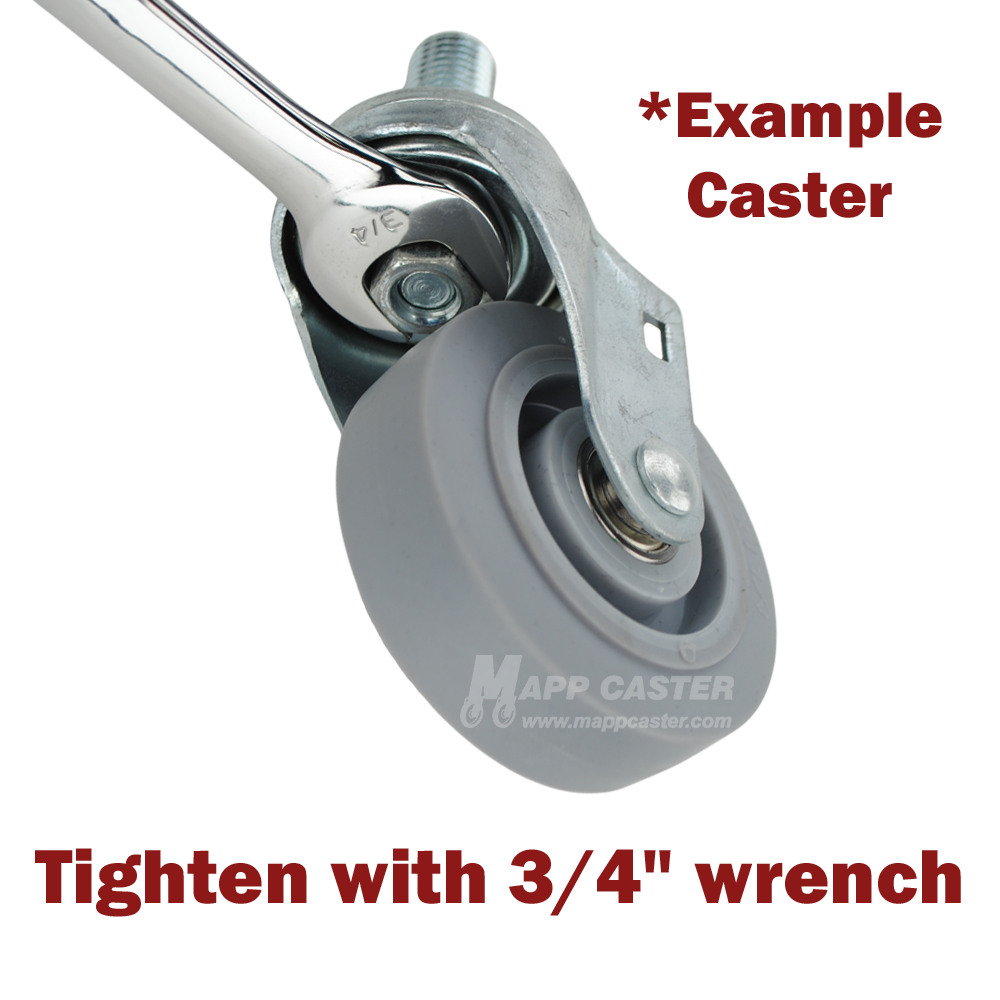

* To tighten the caster, locate the 3/4" nut on the underside of the stem & tighten with a 3/4" wrench. Refer to the product images for reference.

Specifications:

Capacity: 300 Lbs.
Stem Size: 1/2"
Wheel Diameter:3"
Stem Thread Pitch:13
Tread Width: 1-1/4"
Stem Length:1"
Tread Shape:Flat
Overall Height:4"
Bearing Type:Roller Bearing
Caster Rig Material Type:Q235 Steel
Wheel Type:Sintered Steel
Caster Rig Color/Finish:Silver Zinc Plated
Wheel Durometer: Brinell 145
Swivel Radius: 2-15/16"
Wheel Color: Silver
Swivel Construction: Double Ball Raceway - Kingpin (w/ Dust Cover)
Temp Range: -40˚F to 500˚F
Weight: 2.26 Lbs
Link to Replacement Wheel: 503125-US
Link to Matching Swivel Brake Caster: Q523021STLRBTLB
Link to Matching Swivel Caster w/ Total Lock Brake: Q523021STLRBSWB
Link to Matching Swivel Caster w/ Face Contact Brake: Q523021STLRBFCB
Capacity icon Capacity: 300 lbs.
Wheel Type iconWheel Diameter:3"
Wheel Diameter icon Tread Width:1-1/4"
Tread Width icon Stem Size:1/2"
Hub Length (without Bearings) icon
Stem Thread Pitch: 13
Hub Length (with Bearings) icon
Stem Length: 1"
Bearing Type iconTread Shape:Flat
Plain Bore ID iconBearing Type: Roller Bearing
Accepted Axle/Bearing ID iconWheel Type: Sintered Steel
Wheel Durometer iconWheel Durometer:Brinell 145
Wheel Tread Shape iconOverall Height:4"
Wheel Tread Shape iconSwivel Radius:2-15/16"
Wheel Tread Shape iconSwivel Construction: Double Ball Raceway - Kingpin (w/ Dust Cover)
Temp Range icon Caster Rig Material Type: Q235 Steel
Wheel Color iconCaster Rig Color/Finish:Silver Zinc Plated
Weight iconWheel Color:Silver
Wheel Color iconTemp Range:-40˚F to 500˚F
Weight icon Weight:2.26 Lbs
Wheel Color iconLink to Replacement Wheel:503125-US
Weight icon Link to Matching Swivel Brake Caster:Q523021STLRBTLB
Weight icon Link to Matching Swivel Caster w/ Total Lock Brake:Q523021STLRBSWB
Weight icon Link to Matching Swivel Caster w/ Face Contact Brake:Q523021STLRBFCB
