3" x 1-1/4" steel Swivel Caster with Brake - 250 Lbs Capacity
SKU
Q523001STLTLB
Regular price
$20.79
Couldn't load pickup availability

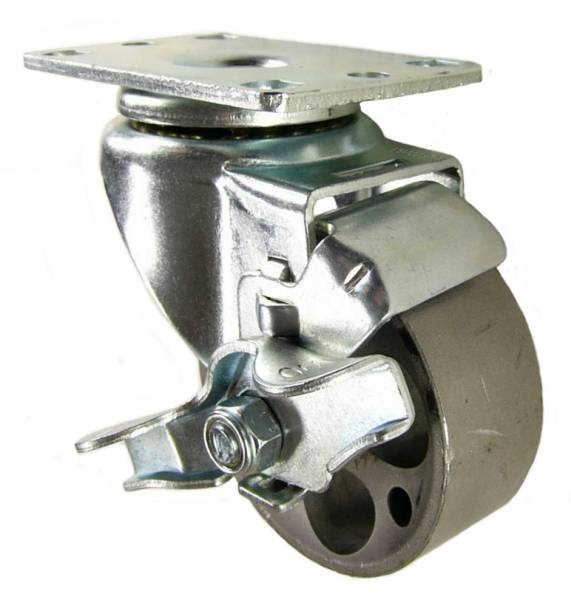

3" x 1-1/4" Steel Wheel Swivel Brake Caster - Part # Q523001STLTLB
Metal wheels are the most durable and longest lasting type of caster wheel available in this size. However, while metal wheels are very strong and durable, they are rough on floors and could lead to floor damage. For floor protective wheels, be sure to check out our polyurethane, rubber, and polyolefin wheels.
Specifications:
| Load Capacity (lbs.): 250 | Link to Matching Rigid Caster: Q5030R01STL |
| Wheel Diameter: 3" | Caster Rig Material Type: Cold Rolled Steel |
| Tread Width: 1-1/4" | Caster Rig Color/Finish: Bright Zinc Plated |
| Wheel Type: Sintered Iron (Metal) | Swivel or Rigid Caster: Swivel |
| Wheel Bearing Type: Plain Bore | Swivel Radius: 2-15/16" |
| Overall Height: 4-1/8" | Swivel Construction: Double Ball Raceway |

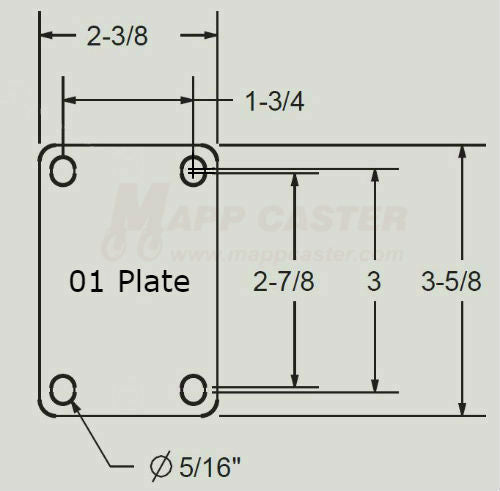

| Temp Range: -40°F to 500°F | Mounting Plate: 2-3/8" x 3-5/8" |
| Wheel Durometer: Brinell 145 | Bolt Hole Pattern: 1-3/4" x 2-7/8" to 3" |
| Wheel Color: Silver | Mounting Bolt Size: 5/16" or Smaller |
| Link to Replacement Wheel: QSTL3H3 | Weight: 2.25 Lbs |

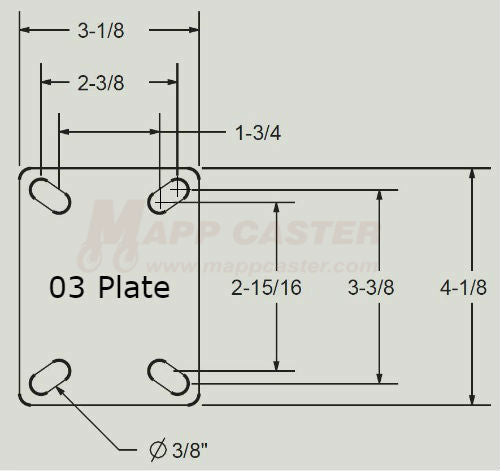

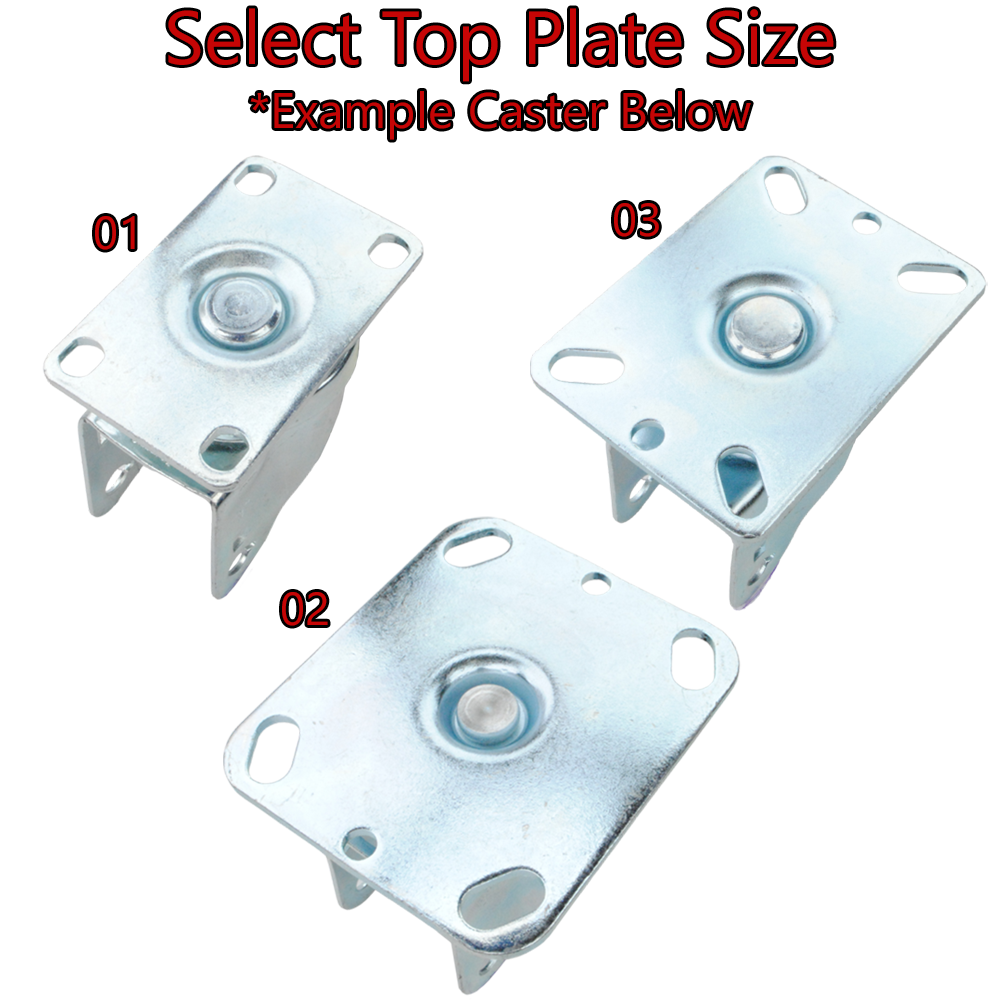

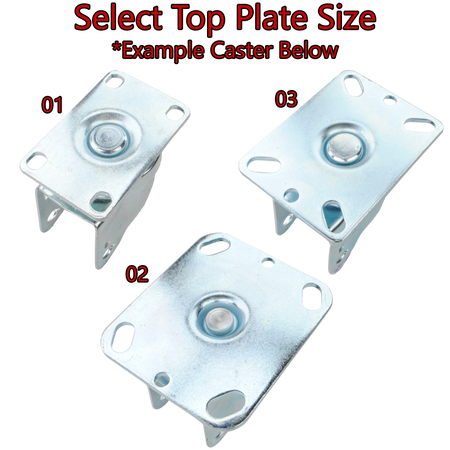

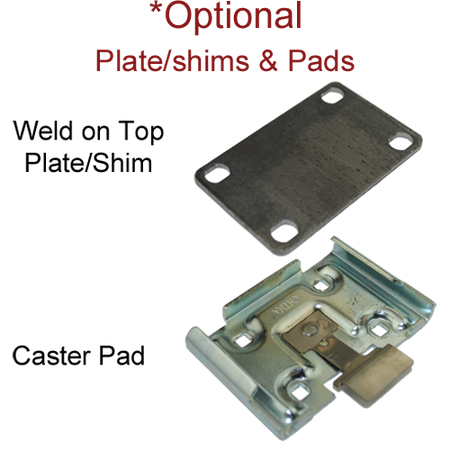

| Part Number for Optional 03 Plate Caster: Q503003STLTLB |

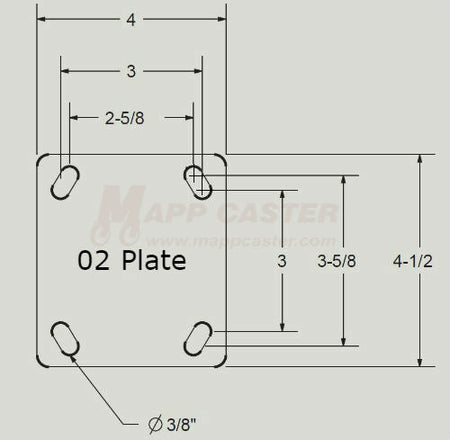

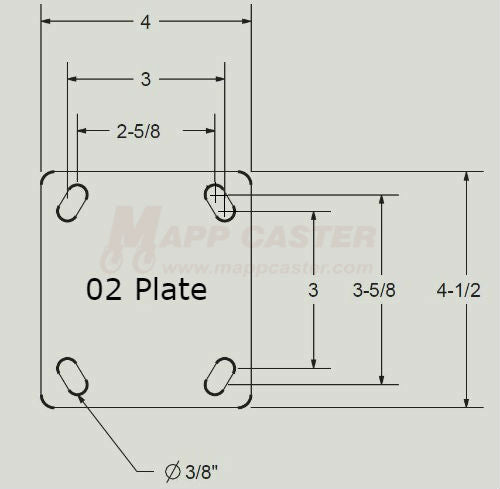

| Part Number for Optional 02 Plate Caster: Q503002STLTLB |
