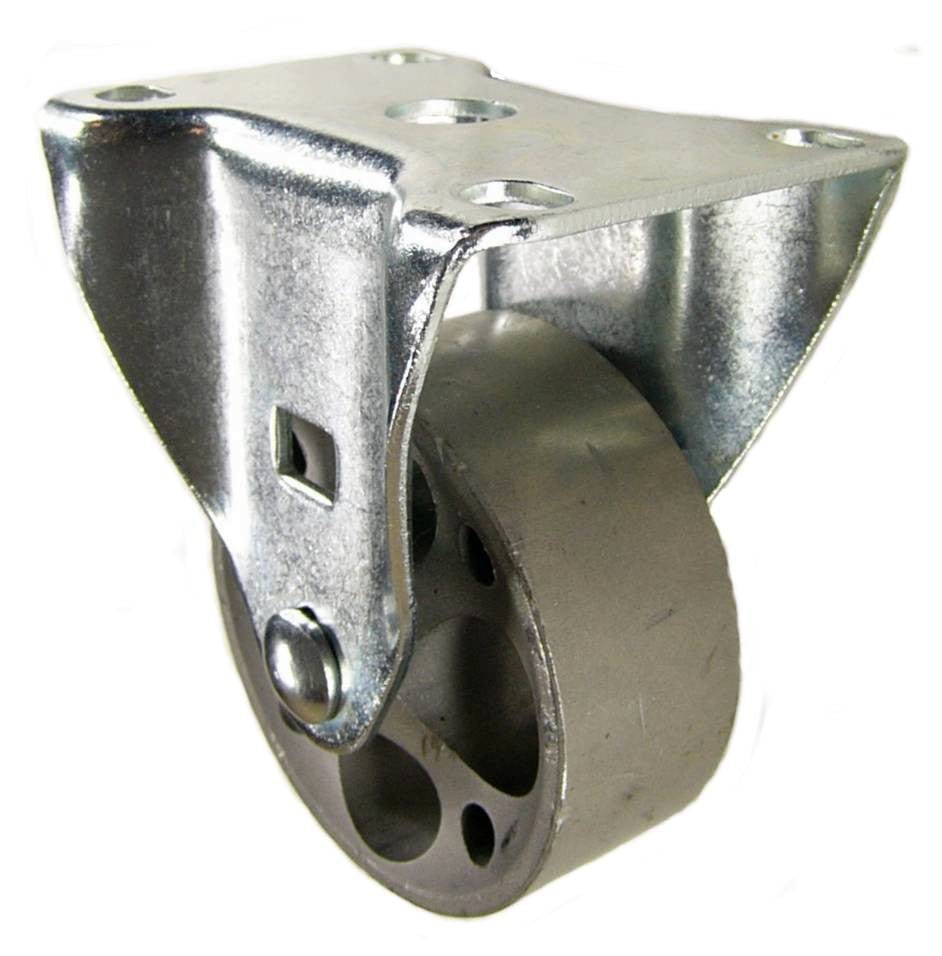

3" x 1-1/4" Semi-Steel Rigid Caster TP
SKU
Q5230R01STL
Regular price
$13.87
Couldn't load pickup availability
Cast iron/Semi-steel, offers a strong, resilient, cost effective solution for heavy loads. The hard tread rolls easily and allows high abrasion resistance. Smooth face allows for symmetrical ride.
Common Applications: Dollies, Parts Bins, Portable Storeage Racks, Bakery Racks, Food Service Applications, Rolling Tool Boxes, Lighter General Duty Uses, Store Displays & Merchandisers, Laundry Carts, Linen Baskets & Hampers
Specifications:
| Load Capacity (lbs.): 350 | Matching Swivel Caster: Q523001STL |
| Wheel Diameter: 3" | Caster Rig Material Type: Cold Rolled Steel |
| Tread Width: 1-1/4" | Caster Rig Color/Finish: Bright Zinc Plated |
| Wheel Type: Sintered Iron (Metal) | Swivel or Rigid Caster: Rigid |
| Wheel Bearing Type: Plain Bore | Swivel Radius: N/A |
| Overall Height: 4-1/8" | Swivel Construction: N/A |

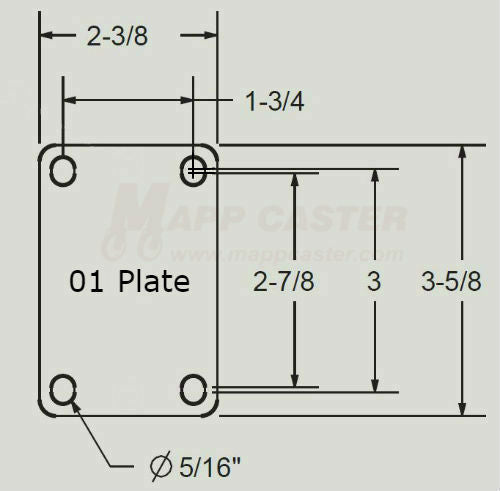

| Temp Range: -20 to 600F | Mounting Plate: 2-3/8" x 3-5/8" |
| Wheel Durometer: Brinell 145 | Bolt Hole Pattern: 1-3/4" x 2-7/8" to 3" |
| Wheel Color: Silver | Mounting Bolt Size: 5/16" or Smaller |
| Replacement Wheel: QSTL3H3 | Weight: 1.61 Lbs |
