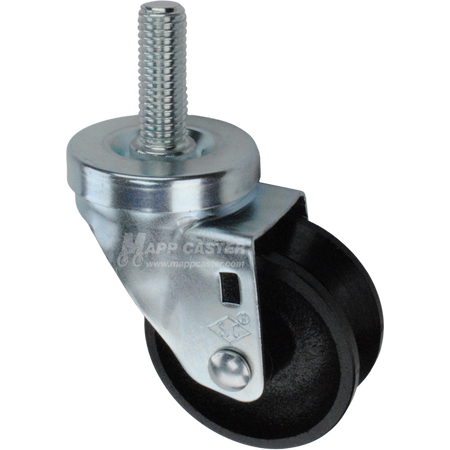

3" x 1-1/4" Cast Iron V-Groove Wheel Swivel Caster, 5/8"-11 x 1-3/4" Threaded Stem - 350 lbs Capacity
SKU
Q523058VG
Regular price
$23.28
Couldn't load pickup availability
3" x 1-1/4" Cast Iron V-Groove Wheel Swivel Caster, 5/8"-11 x 1-3/4" Threaded Stem - Part # Q523058VG
V-groove wheels are designed to guide equipment by rolling on inverted angle iron track, however, they can also operate off the track thanks to the tread on either side of the v-groove. While not designed to run on flat iron, there is a 1/4" opening in the v-groove that can be used with 3/16" flat iron tracks.
Cast Iron is the standard metal wheel used by most unless a heavier capacity or greater impact strength metal wheel is needed. For applications requiring more capacity or impact strength, check out the ductile steel & forged steel wheel caster options.
Specifications:
 Capacity: 350 Lbs. |
 Stem Size: 5/8" |
 Wheel Diameter:3" |
 Stem Thread Pitch:11 |
 Tread Width: 1-1/4" |
 Stem Length:1-3/4" |
 Groove Width:7/8" |
 Groove Depth: 7/16" |
 Tread Shape:V-Groove |
 Overall Height:4" |
 Bearing Type:Bushing |
 Caster Rig Material Type:Q235 Steel |
 Wheel Type:Cast Iron |
 Caster Rig Color/Finish:Silver Zinc Plated |
 Wheel Durometer: Brinell 145 |
 Swivel Radius: 2-15/16"
|
 Wheel Color: Black |
 Swivel Construction: Double Ball Raceway - Kingpin (w/ Dust Cover)
|
 Temp Range: -45˚F to 600˚F |
 Weight: 1.824 Lbs |
 Link to Replacement Wheel: LVG314
|
|
 Link to Matching Swivel Caster w/ Total Lock Brake: 8GT30KP-VG-5/8
|
Link to Matching Swivel Caster w/ Face Contact Brake: Q523058VGFCB
|
|
Capacity: 350 lbs. |
|
Wheel Diameter:3" |
|
Tread Width:1-1/4" |
|
Stem Size:5/8" |
|
Stem Thread Pitch: 11
|
|
Stem Length: 1-3/4"
|
|
Groove Width: 7/8"
|
|
Groove Depth: 7/16"
|
|
Tread Shape:V-Groove |
|
Bearing Type: Bushing |
|
Wheel Type: Cast Iron |
|
Wheel Durometer:Brinell 145 |
|
Overall Height:4" |
|
Swivel Radius:2-15/16" |
|
Swivel Construction: Double Ball Raceway - Kingpin (w/ Dust Cover) |
|
Caster Rig Material Type: Q235 Steel |
|
Caster Rig Color/Finish:Silver Zinc Plated |
|
Wheel Color:Black |
|
Temp Range:-45˚F to 600˚F |
|
Weight:1.824 Lbs |
|
Link to Replacement Wheel:LVG314 |
|
Link to Matching Swivel Brake Caster:Q523058VGTLB |
|
Link to Matching Swivel Caster w/ Total Lock Brake:8GT30KP-VG-5/8
|
|
Link to Matching Swivel Caster w/ Face Contact Brake:Q523058VGFCB
|
