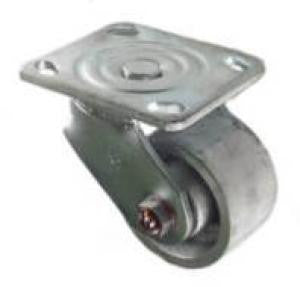

3-1/4" x 2" Cast Iron Wheel Swivel Caster - 700 Lbs Capacity

SKU

VMH320SS64S
$43.83

3-1/4" x 2" Cast Iron Wheel Swivel Caster - Part # VMH320SS64S

Cast Iron is the standard metal wheel used by most unless a heavier capacity or greater impact strength metal wheel is needed. For applications requiring more capacity or impact strength, check out the ductile steel & forged steel wheel caster options.

While semi steel is very strong, it is tough on floors and could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane wheels.

*Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Load Capacity (lbs.): 700 Link to Matching Rigid Caster:  VMH320SS64R
Wheel Diameter: 3-1/4" Caster Rig Material Type: Cold Rolled Steel
Tread Width: 2" Caster Rig Color/Finish: Silver Zinc Plated
Wheel Type: Cast Iron Swivel or Rigid Caster: Swivel
Wheel Bearing Type: See Bearings Options Swivel Radius: 3-1/8"
Overall Height: 4-1/4" Swivel Construction: Kingpin

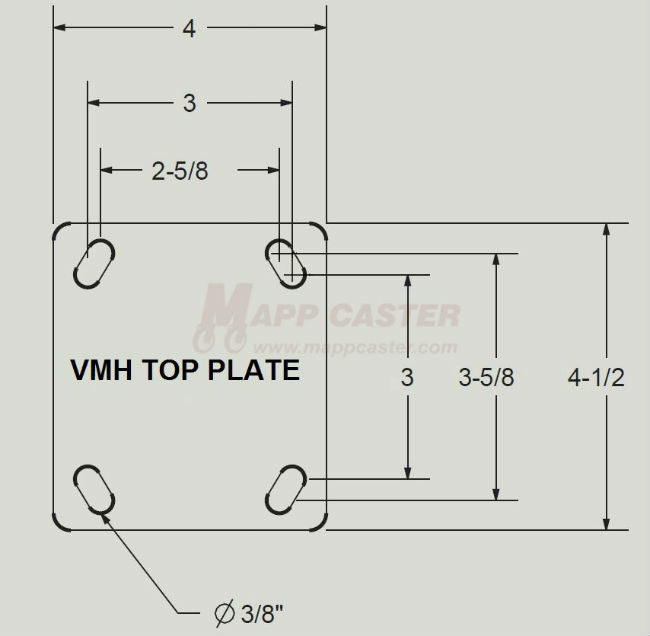

Temp Range:  -40°F to 600˚F Mounting Plate: 4" x 4-1/2"
Wheel Hardness: Brinell 145  Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
Wheel Color: Silver Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: LSS3420 Weight: 5.12 lbs.
