3-1/4" x 2" Cast Iron Wheel Rigid Caster - 700 Lbs Capacity
SKU
VMH320SS64RCouldn't load pickup availability

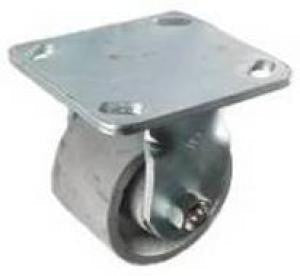

3-1/4" x 2" Cast Iron Wheel Rigid Caster - Part # VMH320SS64R
Cast iron is the industry standard metal caster wheel used across a wide range of heavy duty applications. This wheel differs from traditional cast iron designs because it is classified as semi-steel. With reduced carbon content & additional steel blended into the casting, it delivers improved capacities, strength, durability & impact resistance compared to standard cast iron wheels. In addition to its stronger material composition, this wheel also features heavier duty spokes for added reinforcement & durability.
While cast iron is very strong, it is tough on floors & could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane casters. For applications requiring more capacity, temperature resistance & impact strength, check out our other steel casters caster options.
* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.
Specifications:
| Load Capacity (lbs.): 700 | Link to Matching Swivel Caster: VMH320SS64S |
| Wheel Diameter: 3-1/4" | Caster Rig Material Type: Cold Rolled Steel |
| Tread Width: 2" | Caster Rig Color/Finish: Silver Zinc Plated |
| Wheel Type: Cast Iron | Swivel or Rigid Caster: Rigid |
| Wheel Bearing Type: See Bearings Options | Swivel Radius: N/A |
| Overall Height: 4-1/4" | Swivel Construction: N/A |
| Temp Range: -40°F to 600˚F | Mounting Plate: 4" x 4-1/2" |
| Wheel Hardness: Brinell 145 | Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3" |
| Wheel Color: Silver | Mounting Bolt Size: 3/8" or Smaller |
| Link to Replacement Wheel: LSS3420 | Weight: 4.28 lbs. |
