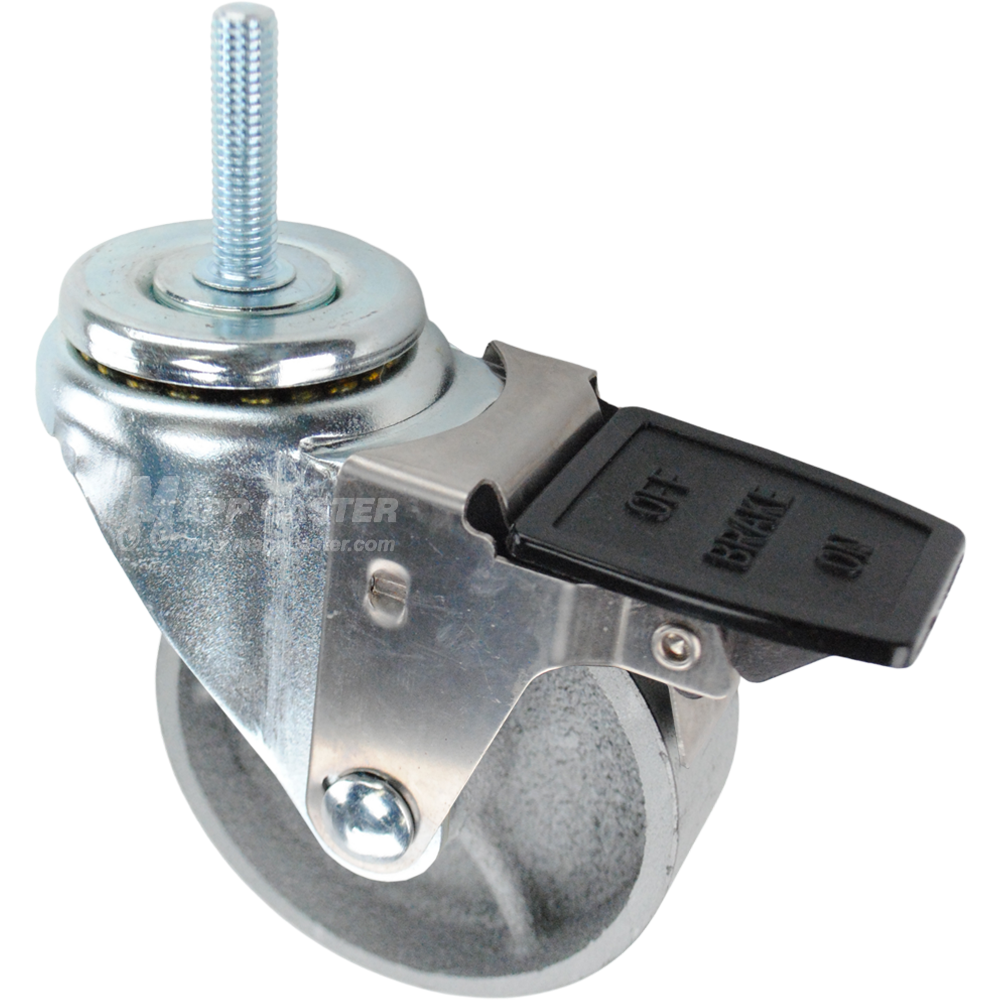

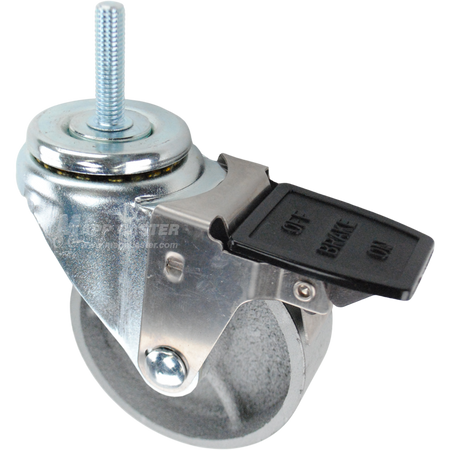

3-1/2" x 1-1/4" Steel Wheel Swivel Caster w/ Face Contact Brake, 3/8"-16 x 1-1/2" Threaded Stem - 350 lbs Capacity

3-1/2" x 1-1/4" Steel Wheel Swivel Caster w/ Face Contact Brake, 3/8"-16 x 1-1/2" Threaded Stem - Part # Q523538STLFCB

Cast Iron Wheels are a popular and cost-effective choice for heavy-duty applications. Their hard tread rolls easily and offers exceptional durability, making them ideal for tough environments. However, like most metal wheels, they can be harsh on floors and may cause damage over time.

For heavy duty floor protective wheels, be sure to check out our polyurethane wheels.

* This brake kit has a maximum temperature rating of 180°F due to its plastic pedal construction.

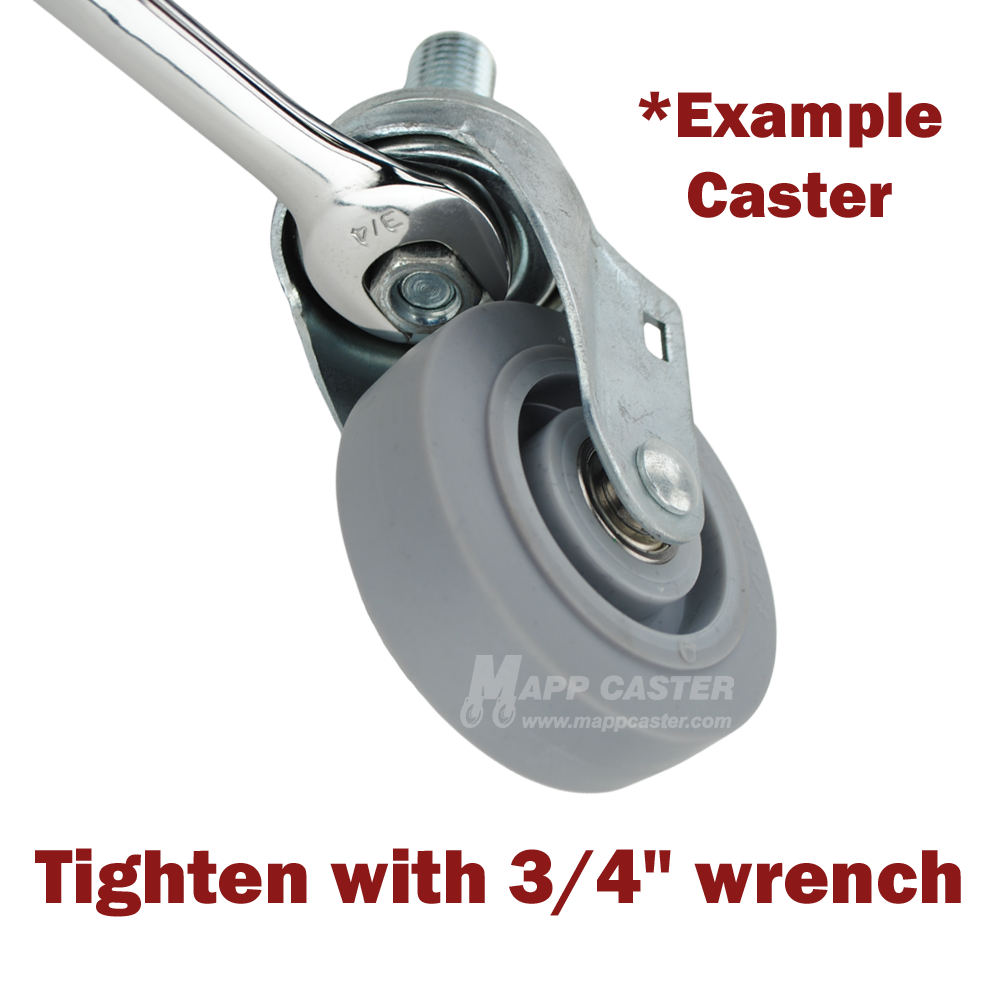

* To tighten the caster, locate the 3/4" nut on the underside of the stem & tighten with a 3/4" wrench. Refer to the product images for reference.

Specifications:

Capacity: 350 Lbs.	Stem Size: 3/8"
Wheel Diameter:3-1/2"	Stem Thread Pitch:16
Tread Width: 1-1/4"	Stem Length:1-1/2"
Tread Shape:Flat	Overall Height:4-1/2"
Bearing Type:None	Caster Rig Material Type:Q235 Steel
Wheel Type:Sintered Steel	Caster Rig Color/Finish:Silver Zinc Plated
Wheel Durometer: Brinell 145	Swivel Radius: 4-1/4"
Wheel Color: Silver	Swivel Construction: Double Ball Raceway - Kingpin
Temp Range: -40˚F to 180˚F	Weight: 2.374 Lbs
Link to Replacement Wheel: LSS35GS82	Link to Matching Swivel Caster: Q523538STL

Capacity: 350 lbs.

Wheel Diameter:3-1/2"

Tread Width:1-1/4"

Stem Size:3/8"

Stem Thread Pitch: 16

Stem Length: 1-1/2"

Tread Shape:Flat

Bearing Type: None

Wheel Type: Sintered Steel

Wheel Durometer:Brinell 145

Overall Height:4-1/2"

Swivel Radius:4-1/4"

Swivel Construction: Double Ball Raceway - Kingpin

Caster Rig Material Type: Q235 Steel

Caster Rig Color/Finish:Silver Zinc Plated

Wheel Color:Silver

Temp Range:-40˚F to 180˚F

Weight:2.374 Lbs

Link to Replacement Wheel:LSS35GS82

Link to Matching Swivel Caster:Q523538STL
