3-1/2" x 1-1/4" Steel Wheel Swivel Caster, 1/2"-13 x 1" Threaded Stem - 350 lbs Capacity
SKU
Q523521STL
Regular price
$26.72
Couldn't load pickup availability

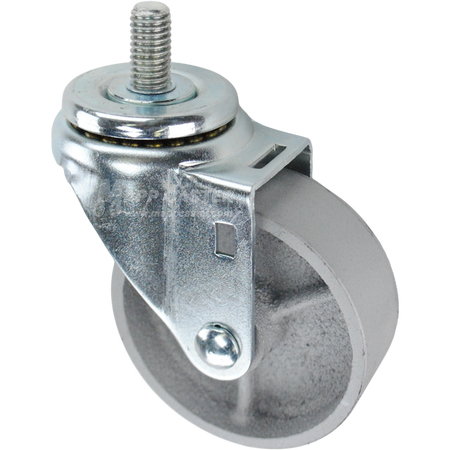

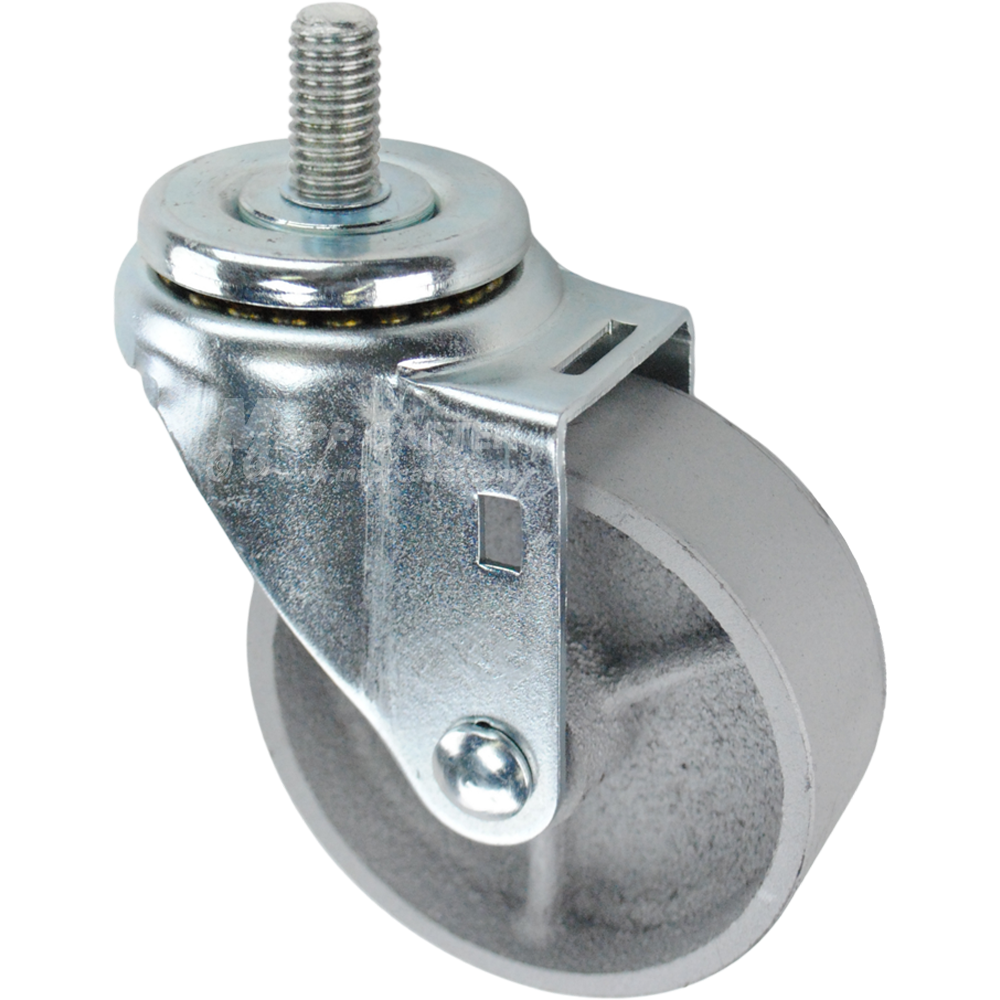

3-1/2" x 1-1/4" Steel Wheel Swivel Caster, 1/2"-13 x 1" Threaded Stem - Part # Q523521STL
Cast Iron Wheels are a popular and cost-effective choice for heavy-duty applications. Their hard tread rolls easily and offers exceptional durability, making them ideal for tough environments. However, like most metal wheels, they can be harsh on floors and may cause damage over time.
For heavy duty floor protective wheels, be sure to check out our polyurethane wheels.
Specifications:
 Capacity: 350 Lbs. |
 Stem Size: 1/2" |
 Wheel Diameter:3-1/2" |
 Stem Thread Pitch:13 |
 Tread Width: 1-1/4" |
 Stem Length:1" |
 Tread Shape:Flat |
 Overall Height:4-1/2" |
 Bearing Type:None |
 Caster Rig Material Type:Q235 Steel |
 Wheel Type:Steel |
 Caster Rig Color/Finish:Silver Zinc Plated |
 Wheel Durometer: Brinell 145 |
 Swivel Radius: 3-3/16"
|
 Wheel Color: Silver |
 Swivel Construction: Double Ball Raceway - Kingpin
|
 Temp Range: -45˚F to 800˚F |
 Weight: 2.18 Lbs |
 Link to Replacement Wheel: LSS35GS82
|
|
|
|
 Link to Matching Swivel Caster w/ Face Contact Brake: Q523521STLFCB
|
|
Capacity: 350 lbs. |
|
Wheel Diameter:3-1/2" |
|
Tread Width:1-1/4" |
|
Stem Size:1/2" |
|
Stem Thread Pitch: 13
|
|
Stem Length: 1"
|
|
Tread Shape:Flat |
|
Bearing Type: None |
|
Wheel Type: Steel |
|
Wheel Durometer:Brinell 145 |
|
Overall Height:4-1/2" |
|
Swivel Radius:3-3/16" |
|
Swivel Construction: Double Ball Raceway - Kingpin |
|
Caster Rig Material Type: Q235 Steel |
|
Caster Rig Color/Finish:Silver Zinc Plated |
|
Wheel Color:Silver |
|
Temp Range:-45˚F to 800˚F |
|
Weight:2.18 Lbs |
|
Link to Replacement Wheel:LSS35GS82 |
|
Link to Matching Swivel Brake Caster:Q523521STLTLB |
|
Link to Matching Swivel Caster w/ Face Contact Brake:Q523521STLFCB
|
