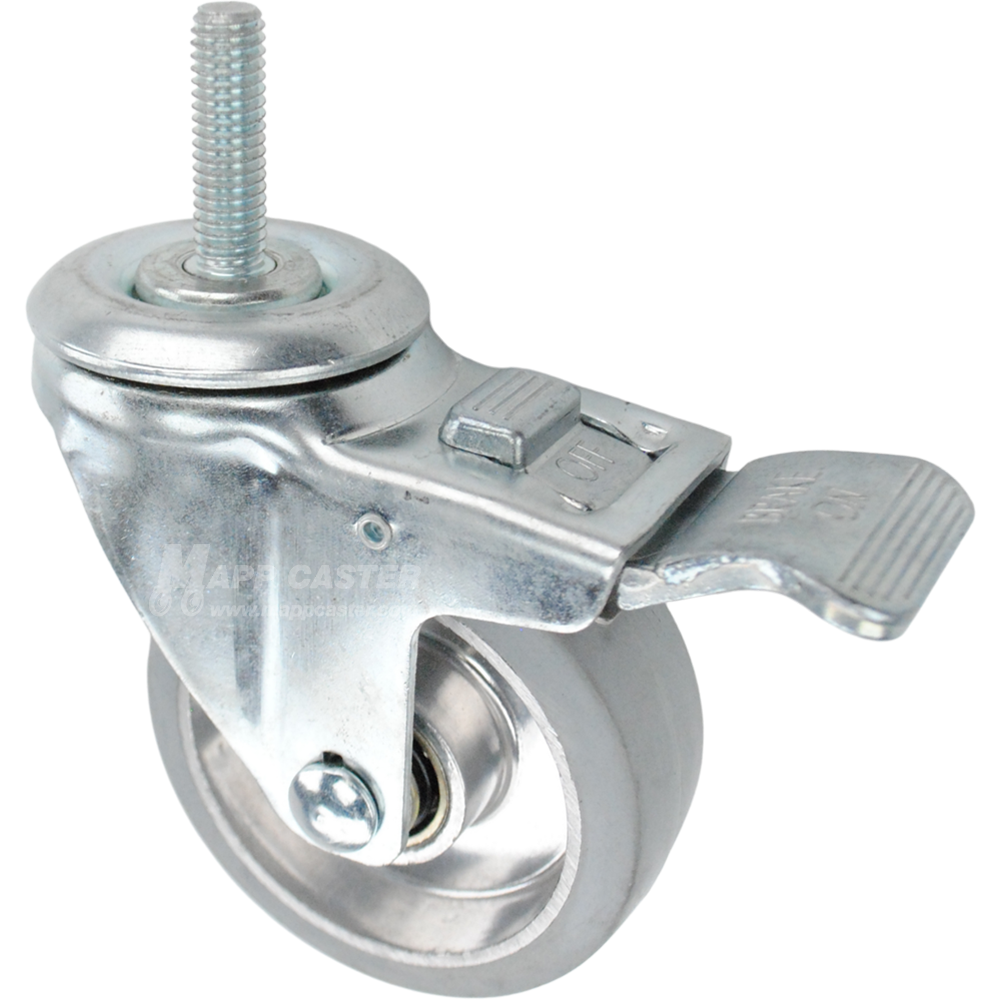

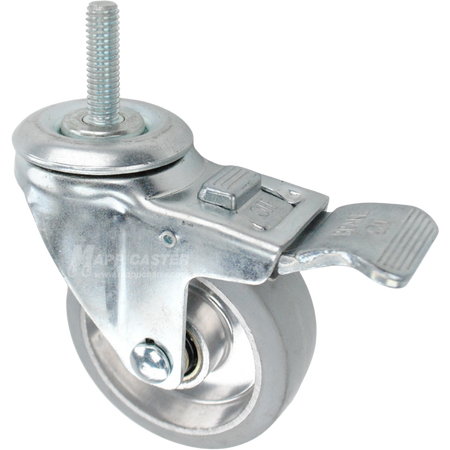

3-1/2" x 1-1/4" Rubber on Aluminum Wheel Swivel Caster w/ Total Lock Brake, 7/16"-14 x 1-1/2" Threaded Stem - 300 lbs Capacity

3-1/2" x 1-1/4" Rubber on Aluminum Wheel Swivel Caster w/ Total Lock Brake, 7/16"-14 x 1-1/2" Threaded Stem - Part # 8GT35KP-RAL-7/16

Rubber on aluminum wheels are an excellent choice for customers who need non-marking, floor-protective wheels that roll smoothly and easily. Offering a noticeable upgrade over hard rubber, soft rubber, rubber on nylon, or rubber on cast iron options, these wheels combine performance with durability. The elastic rubber tread provides a smooth, quiet, and cushioned ride while protecting floors, and the lightweight aluminum core resists corrosion and rust. In addition to their performance benefits, the attractive finish makes these wheels a popular option for applications where appearance matters as well as function.

* Total locking brake casters work best with softer wheels like neoprene, soft rubber, thermoplastic rubber & polyurethane. The softer wheel allows the brake pad to grip the tread effectively. While total locking brakes also work with harder wheels, a strong push may cause slight movement of the caster wheel.

* We would not recommend this wheel for applications that require sitting in one spot for long periods of time under load as it can lead to flat spotting.

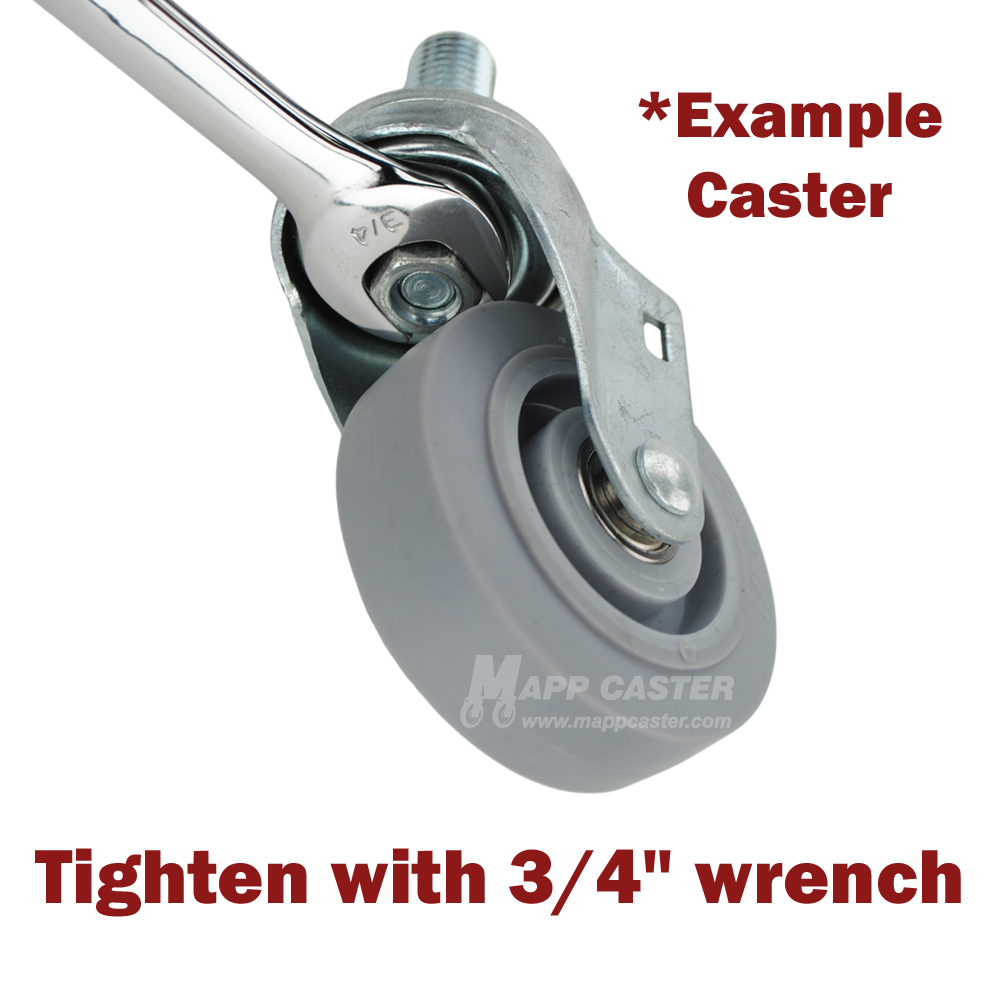

* To tighten the caster, locate the 3/4" nut on the underside of the stem & tighten with a 3/4" wrench. Refer to the product images for reference.

NSF Certified: Tested & approved for use in commercial kitchens & food processing environments where cleanliness & contamination control are essential.

RoHS Compliant: This caster is environmentally responsible & free of restricted hazardous chemicals.

Specifications:

Capacity: 300 Lbs.	Stem Size: 7/16"
Wheel Diameter:3-1/2"	Stem Thread Pitch:14
Tread Width: 1-1/4"	Stem Length:1-1/2"
Tread Shape:Slightly Crowned	Overall Height:4-1/2"
Bearing Type:Ball Bearing	Caster Rig Material Type:Q235 Steel
Wheel Type:Rubber on Aluminum	Caster Rig Color/Finish:Silver Zinc Plated
Wheel Durometer: Shore A 80 (+/-5)	Swivel Radius: 4-3/8"
Wheel Color: Grey	Swivel Construction: Double Ball Raceway - Kingpin
Temp Range: -40˚F to 160˚F	Weight: 1.822 Lbs
Link to Replacement Wheel: QRAL35G3	Link to Matching Swivel Caster: 8GS35KP-RAL-7/16

Capacity: 300 lbs.

Wheel Diameter:3-1/2"

Tread Width:1-1/4"

Stem Size:7/16"

Stem Thread Pitch: 14

Stem Length: 1-1/2"

Tread Shape:Slightly Crowned

Bearing Type: Ball Bearing

Wheel Type: Rubber on Aluminum

Wheel Durometer:Shore A 80 (+/-5)

Overall Height:4-1/2"

Swivel Radius:4-3/8"

Swivel Construction: Double Ball Raceway - Kingpin

Caster Rig Material Type: Q235 Steel

Caster Rig Color/Finish:Silver Zinc Plated

Wheel Color:Grey

Temp Range:-40˚F to 160˚F

Weight:1.822 Lbs

Link to Replacement Wheel:QRAL35G3

Link to Matching Swivel Caster:8GS35KP-RAL-7/16
