3-1/2" x 1-1/4" Engine Hoist/Jack Swivel Caster
SKU
L13SS35GS84EHYY
Regular price
$50.12
Couldn't load pickup availability

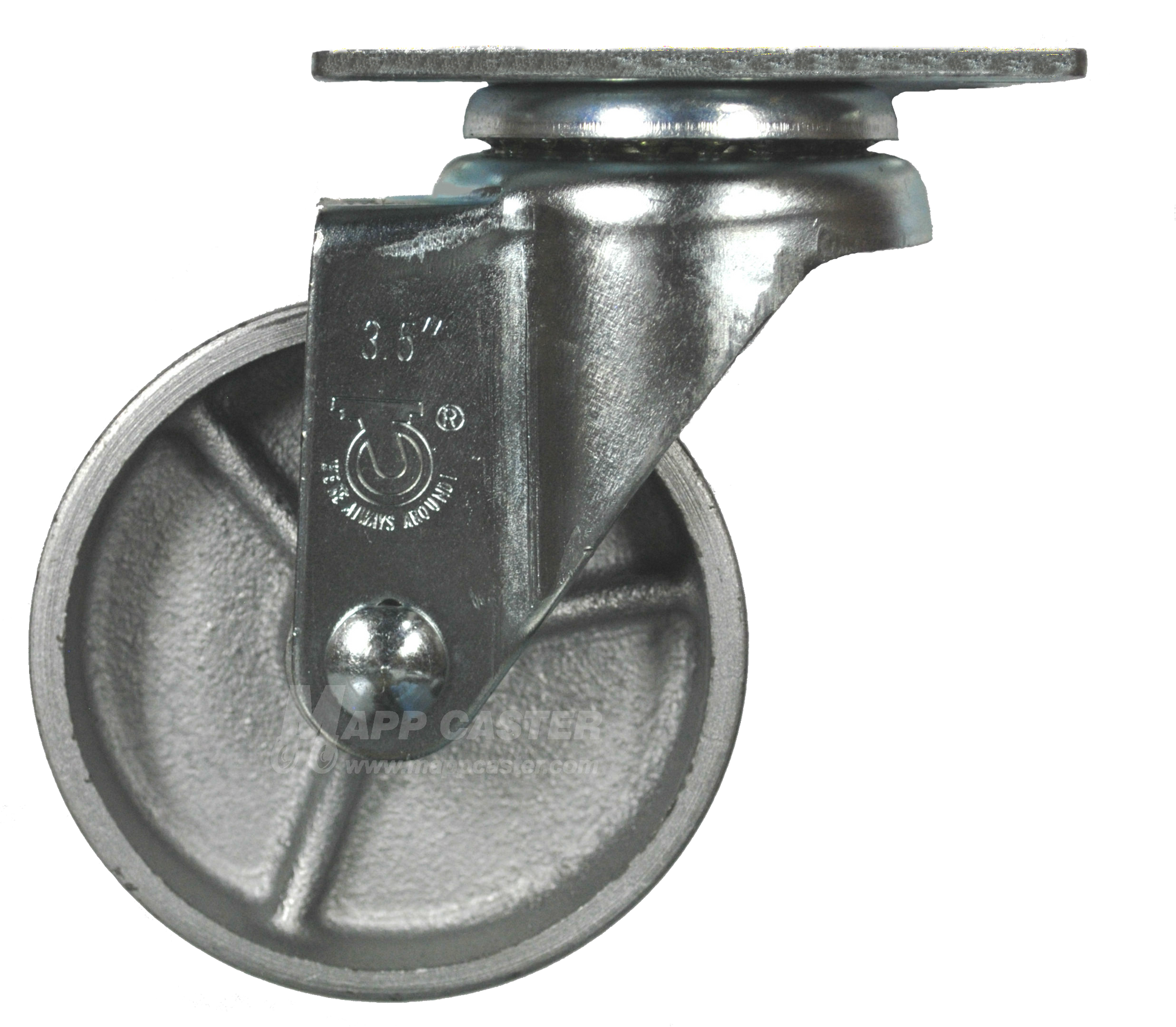

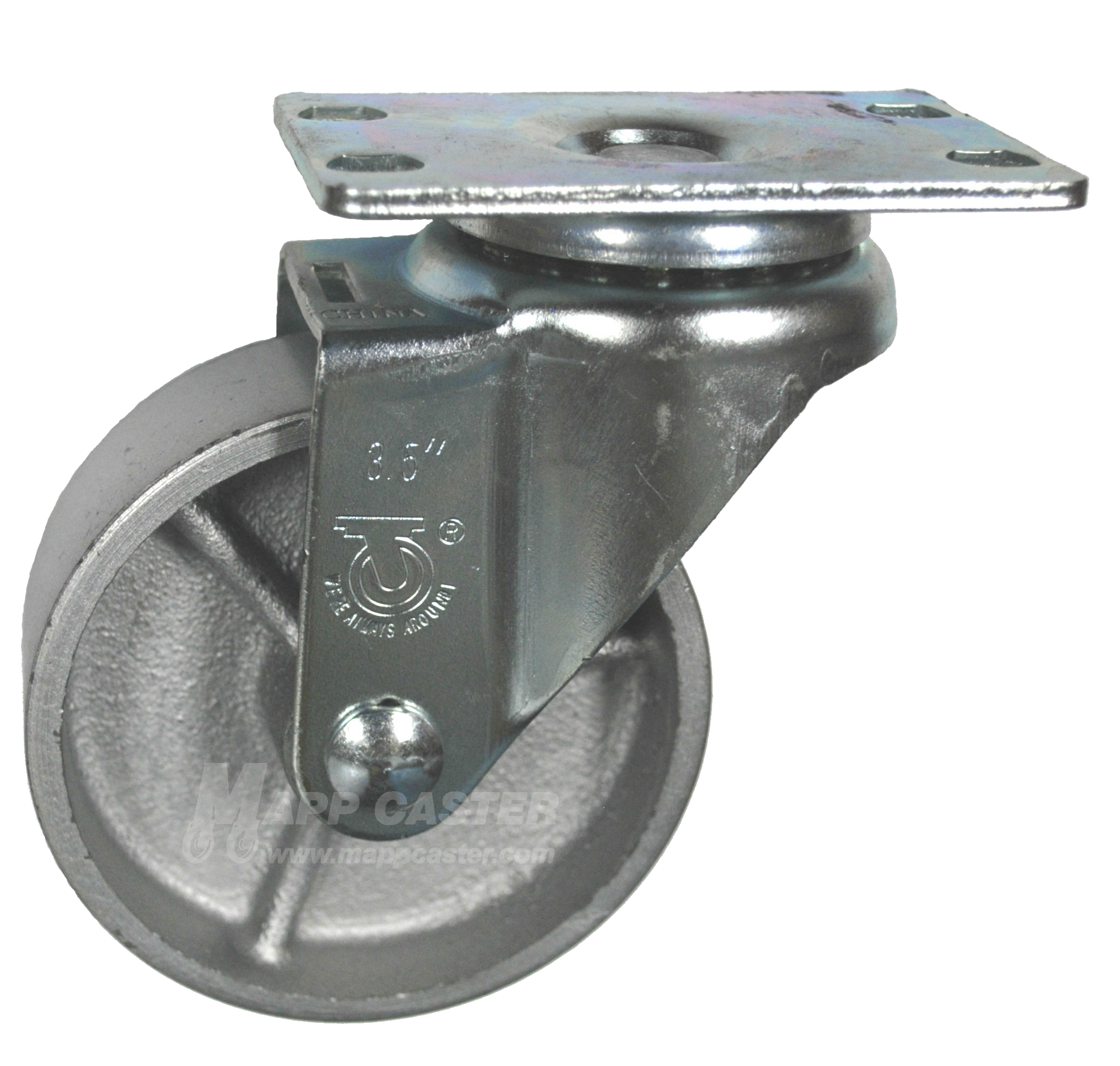

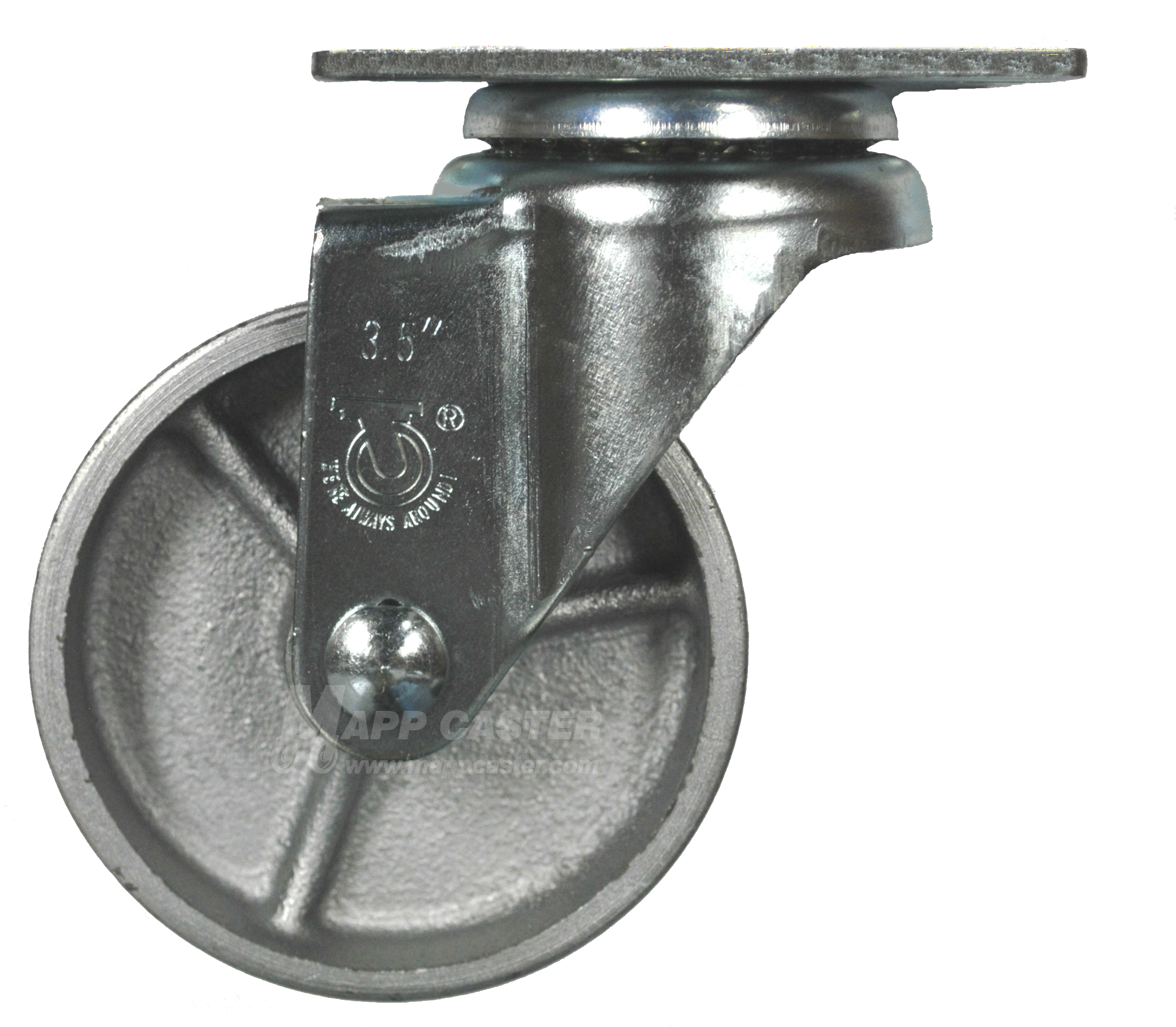

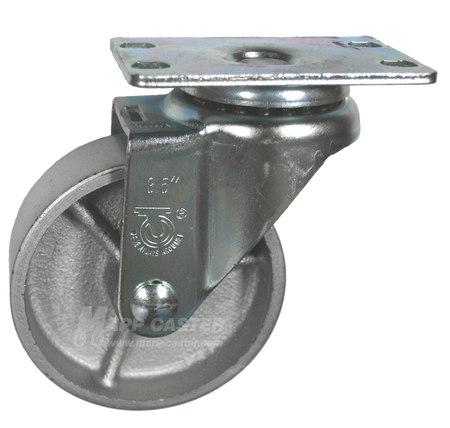

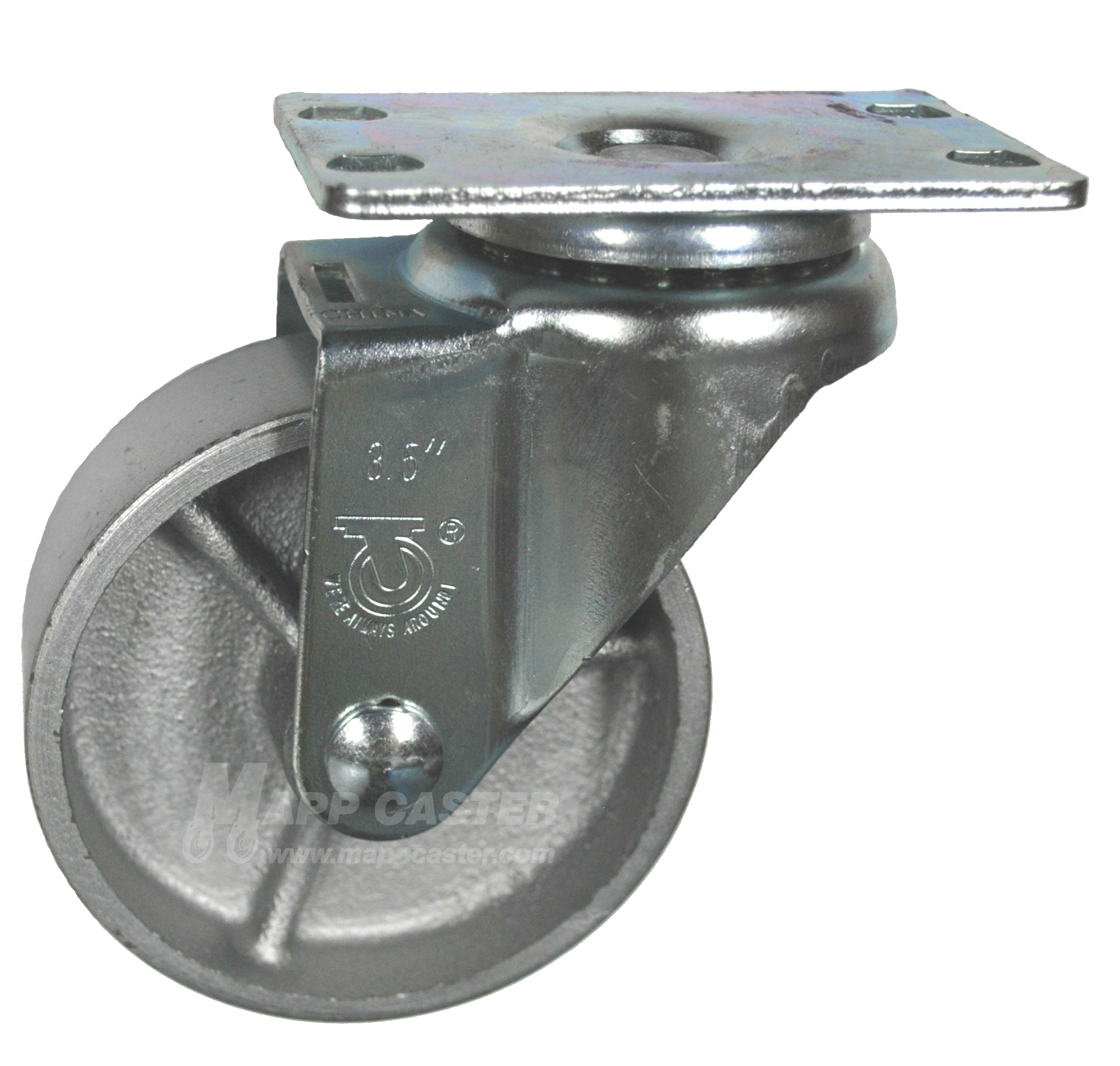

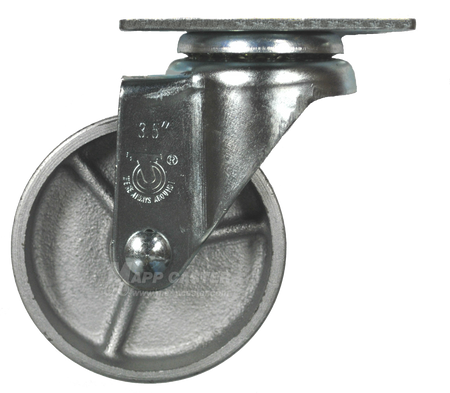

3-1/2" x 1-1/4" Engine Hoist / Transmission Jack Swivel Caster - Part # L13SS35GS84EHYY
This 3-1/2 inch diameter wheel swivel caster is designed to work on engine hoists and transmission jacks. It has a special 1-1/4 inch by 3 inch bolt hole pattern to match many hoist and jacks that are being used.
Specifications:
| Load Capacity (lbs.): 300 | Link to Matching Rigid Caster: N/A |
| Wheel Diameter: 3-1/2" | Caster Rig Material Type: Cold Rolled Steel |
| Tread Width: 1-1/4" | Caster Rig Color/Finish: Bright Zinc Plated |
| Wheel Type: Cast Iron | Swivel or Rigid Caster: Swivel |
| Wheel Bearing Type: Plain Bearings | Swivel Radius: 3-3/16" |
| Overall Height: 4-5/8" | Swivel Construction: Double Ball Raceway |
| Temp Range: -20 to 600F | Mounting Plate: 2-3/8" x 3-5/8" |

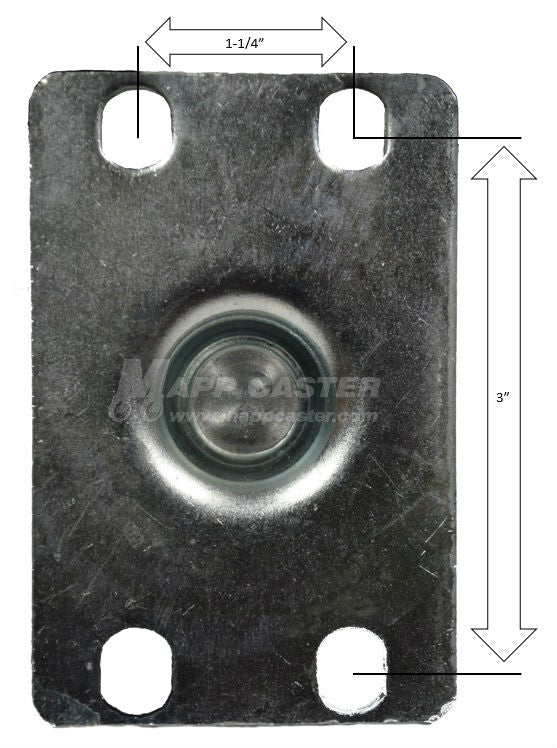

| Wheel Durometer: Brinell 145 | Bolt Hole Pattern: 1-1/4" x 2-7/8" to 3" |
| Wheel Color: Silver | Mounting Bolt Size: 5/16" or Smaller |
| Link to Replacement Wheel: Contact Us | Weight: 3.10 Lbs |
