2-1/2" x 1-1/4" Steel Wheel Swivel (Lincoln) Jack Caster with 3/4" Threaded Stem - 250 Lbs Capacity
SKU
G05214.11
Regular price
$33.67
Couldn't load pickup availability

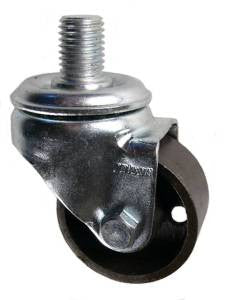

2-1/2" x 1-1/4" Steel Wheel Swivel (Lincoln) Jack Caster with 3/4" Threaded Stem - Part # G05214.11
This caster is a common rear caster replacement for Lincoln, Hein Werner, Walker, Snap On, or Ajax 3 ton hydraulic floor jacks. The stem dimensions are 3/4" x 1" long. This caster has a maximum capacity of 250 lbs.

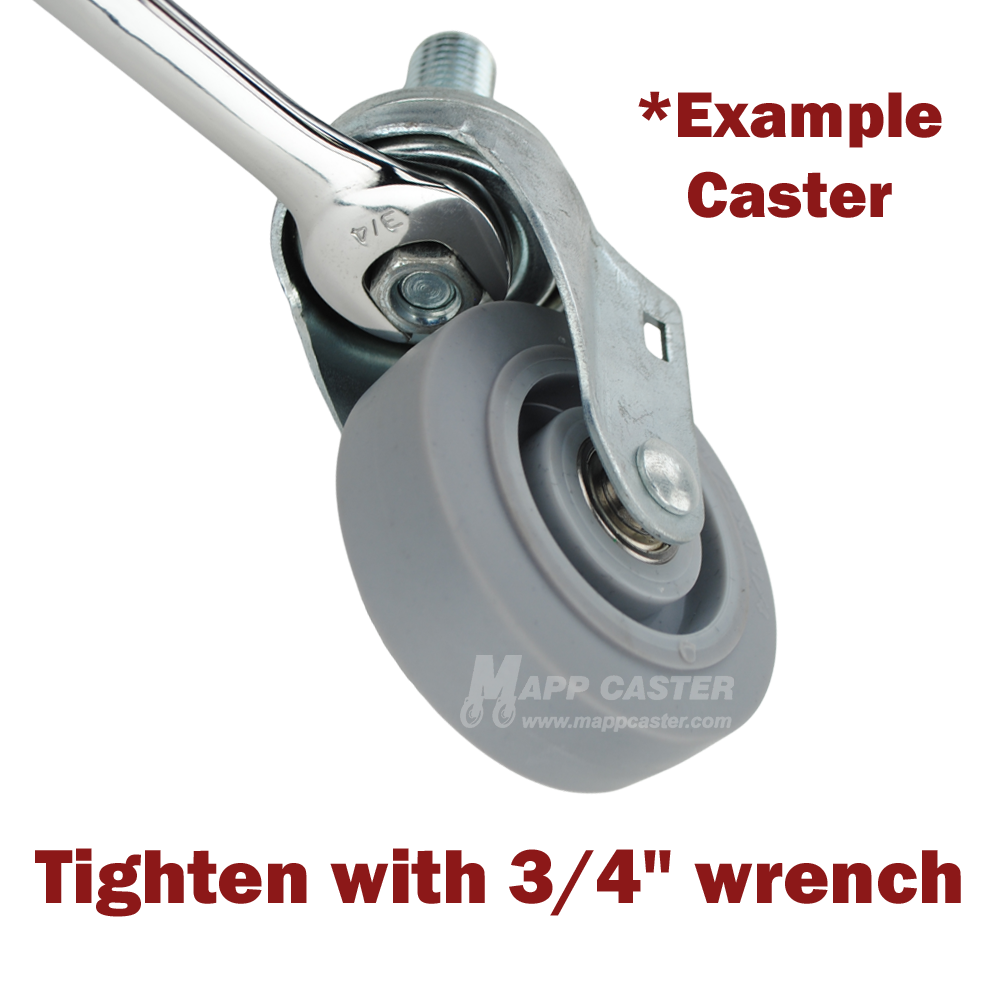

* To tighten the caster, locate the 3/4" nut on the underside of the stem & tighten with a 3/4" wrench. Refer to the product images for reference.
Specifications:
| Load Capacity (lbs.): 250 | Link to Replacement Wheel: Please Contact |
| Wheel Diameter: 2-1/2" | Caster Rig Color/Finish: Silver Zinc Plated |
| Tread Width: 1-1/4" | Swivel or Rigid Caster: Swivel |
| Wheel Type: Cast Iron | Swivel Radius: 2-1/4" |
| Wheel Bearing Type: Plain | Swivel Construction/Diameter: Kingpin |
| Mounting Height: 3-3/8" | Temp Range: -40°F to 180˚F |
| Stem Size: 3/4" | Wheel Durometer: Brinell 145 |
| Stem Length: 1" | Wheel Color: Silver |
| Stem Thread Pitch: 10 | Weight: 2 lbs |
