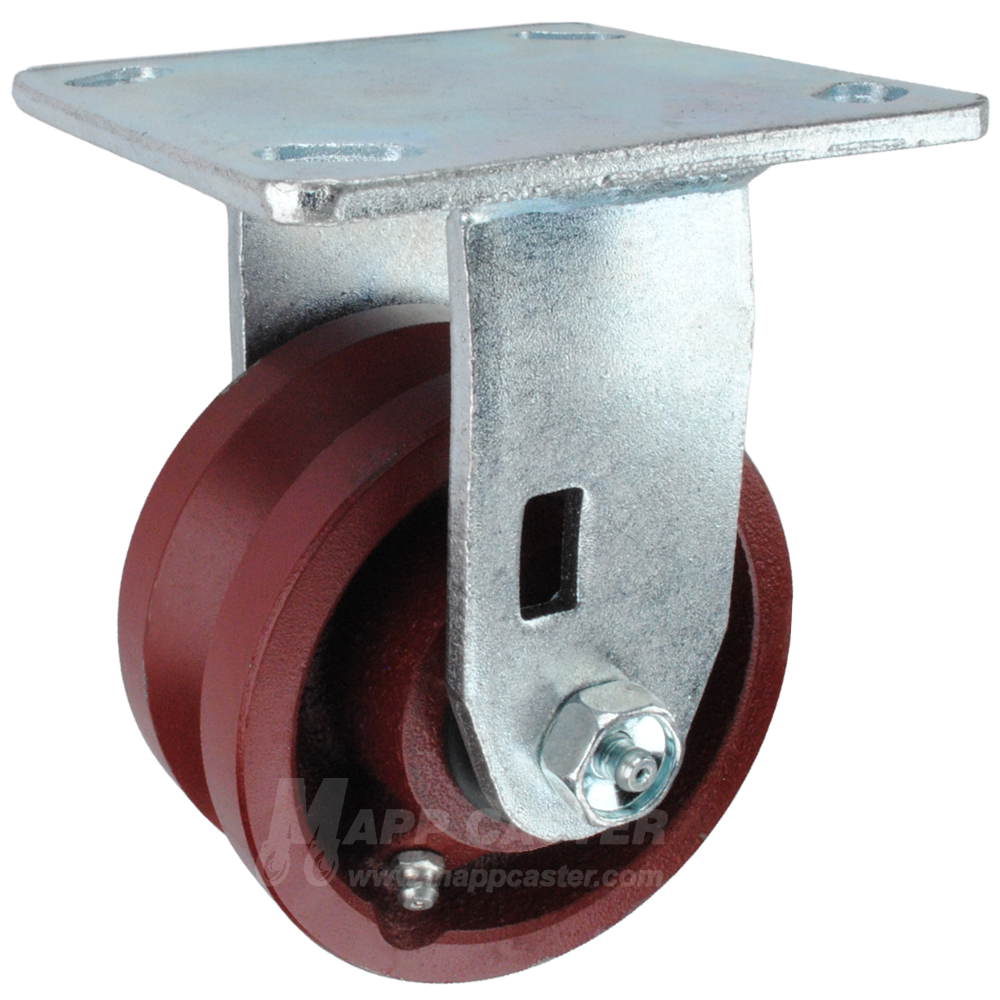

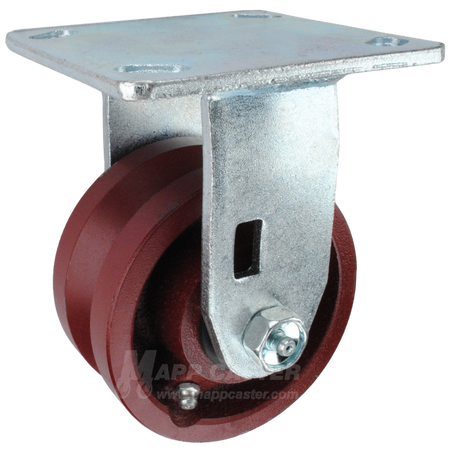

4" x 2" Ductile Steel V-Groove Wheel KPL Rigid Caster - 1500 Lbs Capacity SIDE VIEW
4" x 2" Ductile Steel V-Groove Wheel Rigid Caster - 1,250 Lbs Capacity TOP PLATE

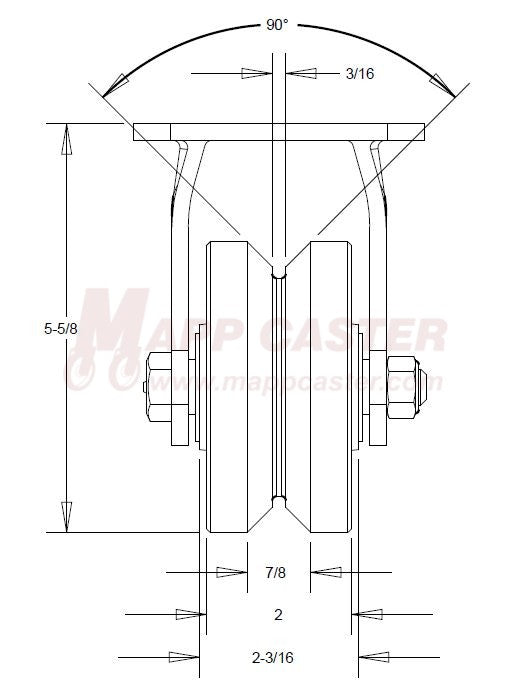

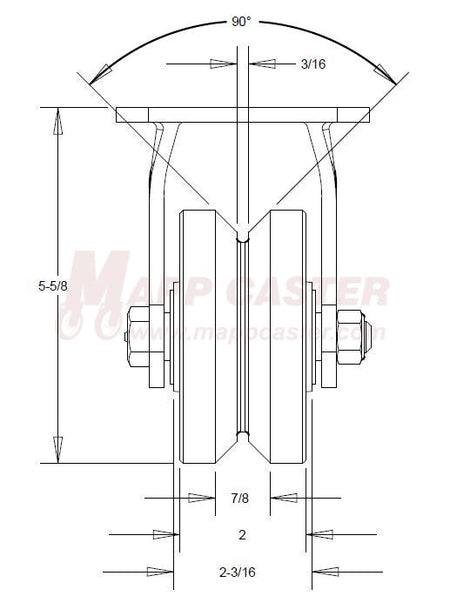

4" x 2" Ductile Steel V-Groove Wheel Rigid Caster - 1,250 Lbs Capacity V- GROOVE TRACK DIAGRAM

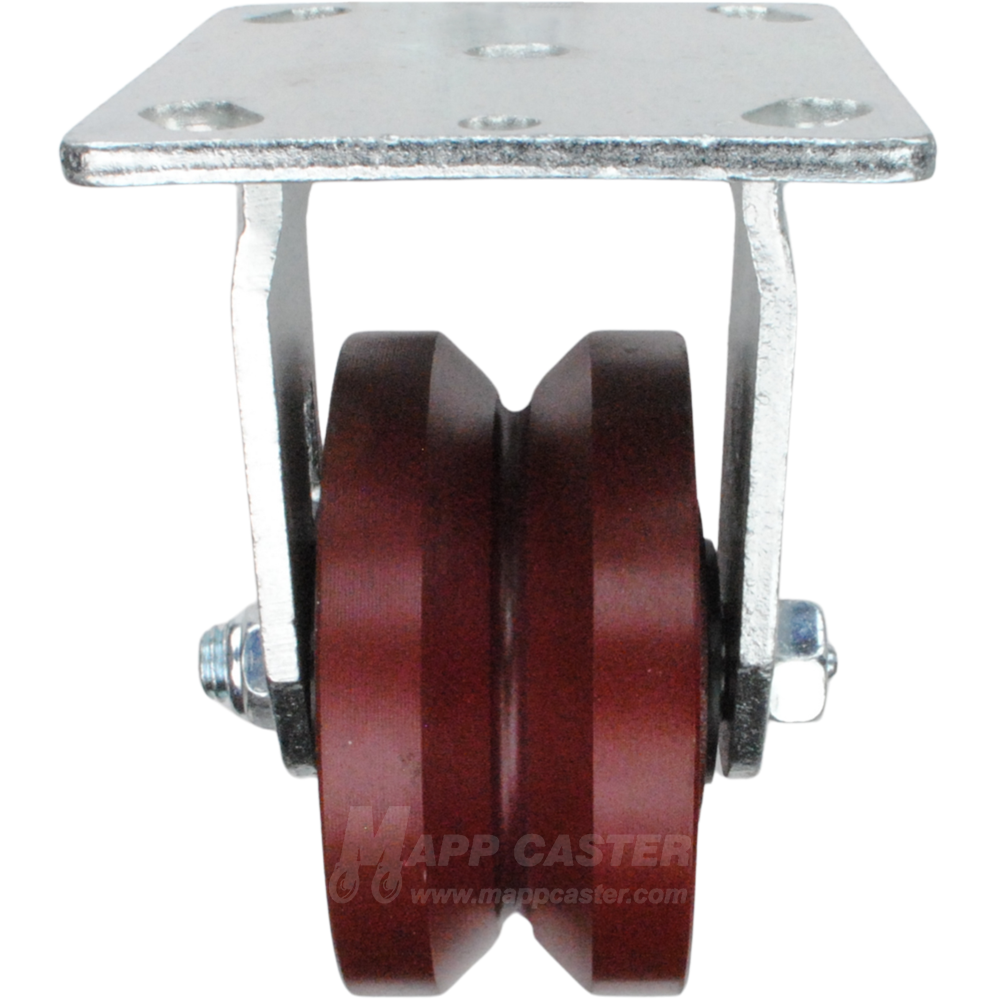

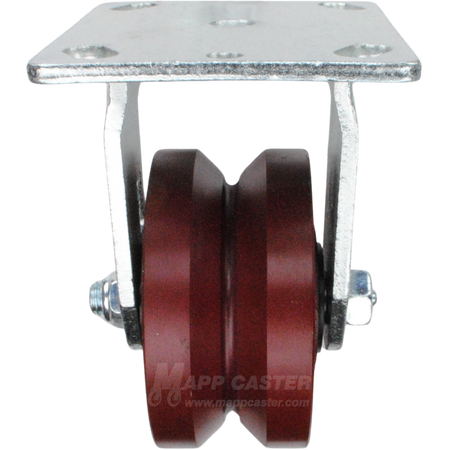

4" x 2" Ductile Steel V-Groove Wheel Rigid Caster - 1,250 Lbs Capacity FRONT VIEW
4" x 2" Ductile Steel V-Groove Wheel Rigid Caster - 1,250 Lbs Capacity optional plate/shims and pads
4" x 2" Ductile Steel V-Groove Wheel Rigid Caster - 1,250 Lbs Capacity optional hardware
4" x 2" Ductile Steel V-Groove Wheel KPL Rigid Caster - 1500 Lbs Capacity SIDE VIEW
4" x 2" Ductile Steel V-Groove Wheel Rigid Caster - 1,250 Lbs Capacity TOP PLATE
4" x 2" Ductile Steel V-Groove Wheel Rigid Caster - 1,250 Lbs Capacity V- GROOVE TRACK DIAGRAM
4" x 2" Ductile Steel V-Groove Wheel Rigid Caster - 1,250 Lbs Capacity FRONT VIEW
4" x 2" Ductile Steel V-Groove Wheel Rigid Caster - 1,250 Lbs Capacity optional plate/shims and pads
4" x 2" Ductile Steel V-Groove Wheel Rigid Caster - 1,250 Lbs Capacity optional hardware

4" x 2" Ductile Steel V-Groove Wheel Rigid Caster

SKU

146DVRB420R
$49.73

4" x 2" Ductile Steel V-Groove Wheel Rigid Caster - Part #: 146DVRB420R

Ductile V-Groove wheels are designed to guide equipment along inverted angle iron tracks but can also function without a track due to the tread on both sides of the V-groove. Made from a combination of alloys that provide excellent tensile strength, these wheels come with extra thick treads, hubs & walls. Ductile steel is a step up from cast iron, offering higher capacity & temperatures. For even greater capacity, consider the heavier-duty forged steel wheels.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Load Capacity (lbs.): 1,250 Link to Matching Swivel Caster: 146DVRB420S
Wheel Diameter: 4" Wheel Durometer: Rockwell 74B
Tread Width: 2" Wheel Color: Dark Red
Wheel Type: Ductile Steel V-Groove Swivel or Rigid Caster: Rigid
Wheel Bearing Type: See Bearings Options Swivel Radius: N/A
Overall Height: 5-5/8" Swivel Construction:  N/A
Temp Range: - 45°F to 800°F  Mounting Plate: 4" x 4-1/2"
V-Groove Width: 7/8" Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3"
V-Groove Depth: 7/16" Mounting Bolt Size: 3/8" or Smaller
Link to Replacement Wheel: QVGR4M0 Weight: 6.00 Lbs
