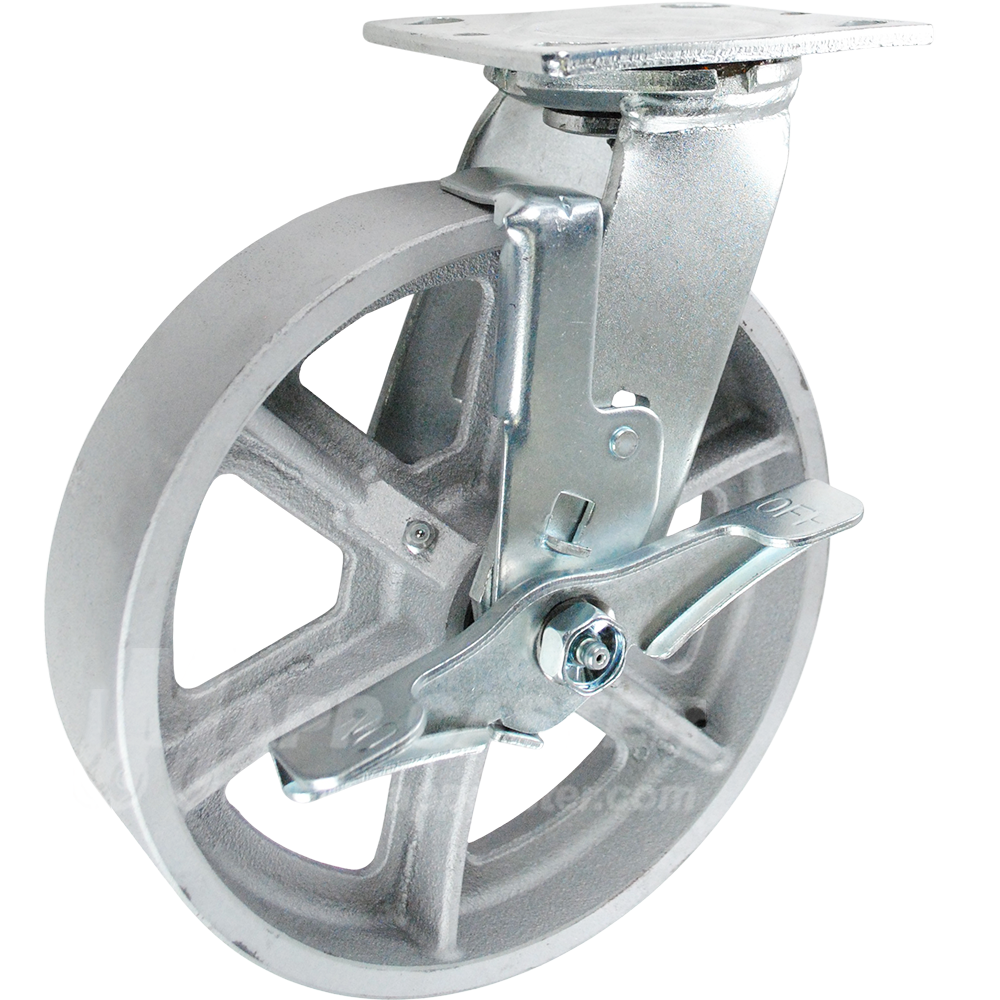

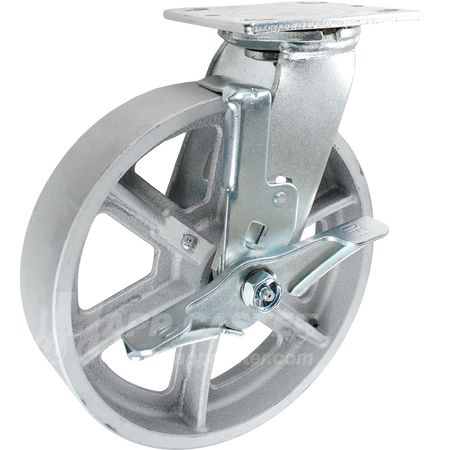

8" x 2" Cast Iron Wheel Swivel Brake Caster - 1,250 Lbs Capacity

8" x 2" Cast Iron Wheel Swivel Brake Caster - Part # 146CIRB820SB

Cast Iron is the standard metal wheel used by most unless a heavier capacity or greater impact strength metal wheel is needed. While cast iron is very strong, it is tough on floors & could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane wheels. For applications requiring more capacity or impact strength, check out the ductile steel & forged steel wheel caster options.

ALL 2” wide wheels are heavy duty cast iron & come with thicker treads, stronger spokes, & larger hub diameter compared to the standard cast iron.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Capacity: 1,250 Lbs.	Mounting Plate: 4" x 4-1/2"
Wheel Diameter:8"	Bolt Hole Pattern:2-5/8" x 3-5/8" slotted to 3" x 3"
Tread Width: 2"	Mounting Bolt Size:3/8" or Smaller
Tread Shape:Flat	Overall Height:9-1/2"
Bearing Type:See Bearings Options	Caster Rig Material Type:Cold Rolled Steel
Wheel Type:Cast Iron	Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Brinell 145	Swivel Radius: 6"
Wheel Color: Silver	Swivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range: -45˚F to 600˚F	Weight: 12.464 Lbs
Link to Replacement Wheel: QSTL8MO	Link to Matching Rigid Brake Caster: 146CIRB820RB

Capacity: 1,250 lbs.

Wheel Diameter:8"

Tread Width:2"

Mounting Plate:4" x 4-1/2"

Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3" x 3"

Mounting Bolt Size: 3/8" or Smaller

Tread Shape:Flat

Bearing Type: See Bearings Options

Wheel Type: Cast Iron

Wheel Durometer:Brinell 145

Overall Height:9-1/2"

Swivel Radius:6"

Swivel Construction: Double Ball Raceway - 5/8" Kingpin

Caster Rig Material Type: Cold Rolled Steel

Caster Rig Color/Finish:Bright Zinc Plated

Wheel Color:Silver

Temp Range:-45˚F to 600˚F

Weight:12.464 Lbs

Link to Replacement Wheel:QSTL8MO

Link to Matching Rigid Brake Caster:146CIRB820RB
