8" x 2" Cast Iron Wheel Swivel Caster - 1,250 Lbs Capacity

SKU

146CIRB820S
$56.27

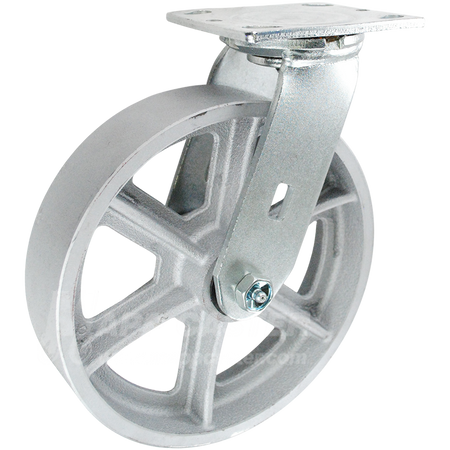

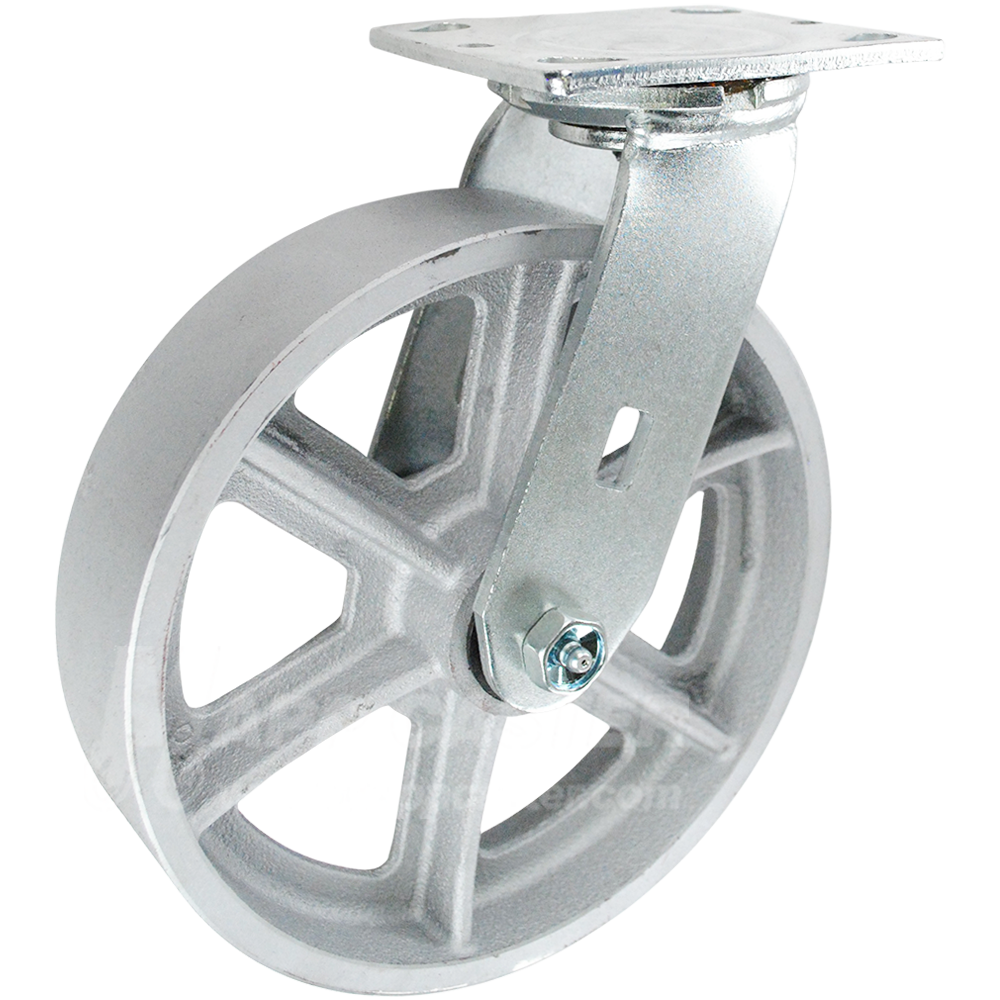

8" x 2" Cast Iron Swivel Caster - Part # 146CIRB820S

Cast iron is the industry standard metal caster wheel used across a wide range of heavy duty applications. This wheel differs from traditional cast iron designs because it is classified as semi-steel. With reduced carbon content & additional steel blended into the casting, it delivers improved capacities, strength, durability & impact resistance compared to standard cast iron wheels. In addition to its stronger material composition, this wheel also features heavier duty spokes for added reinforcement & durability.

While cast iron is very strong, it is tough on floors & could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane casters. For applications requiring more capacity, temperature resistance & impact strength, check out our other steel casters caster options.

* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.

Specifications:

Capacity: 1,250 Lbs.

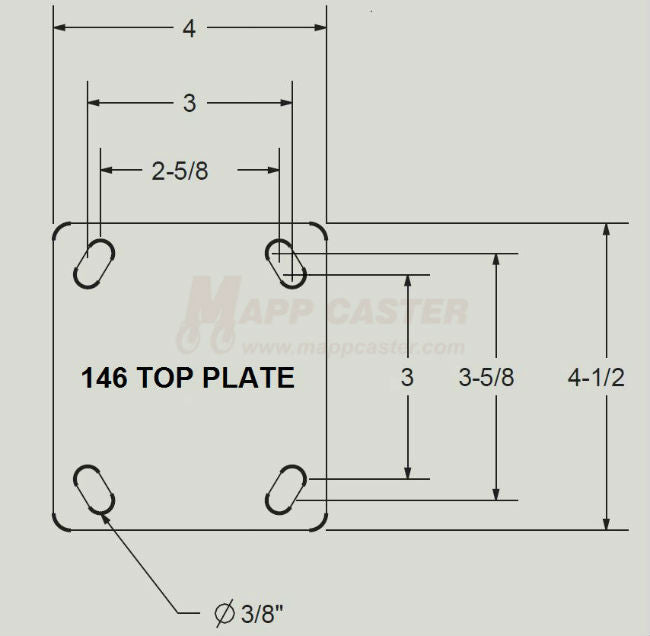

Mounting Plate: 4" x 4-1/2"
Wheel Diameter:8"
Bolt Hole Pattern:2-5/8" x 3-5/8" slotted to 3" x 3"
Tread Width: 2"
Mounting Bolt Size:3/8" or Smaller
Tread Shape:Flat

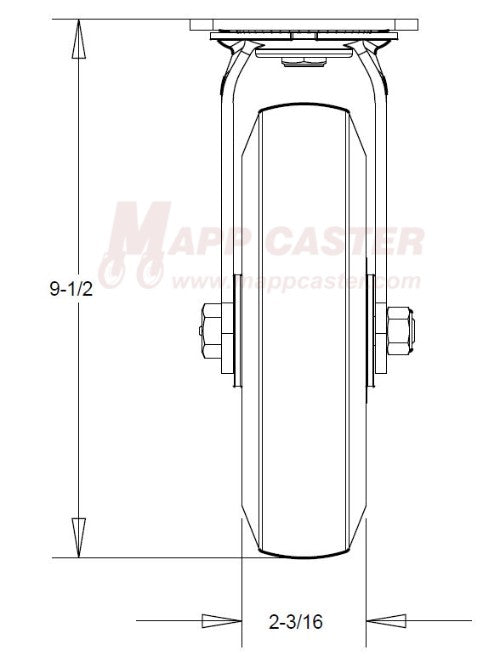

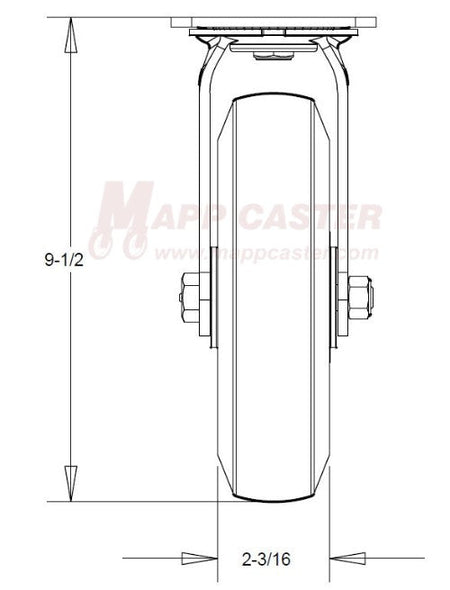

Overall Height:9-1/2"
Bearing Type:See Bearings Options
Caster Rig Material Type:Cold Rolled Steel
Wheel Type:Cast Iron
Caster Rig Color/Finish:Bright Zinc Plated
Wheel Durometer: Brinell 145

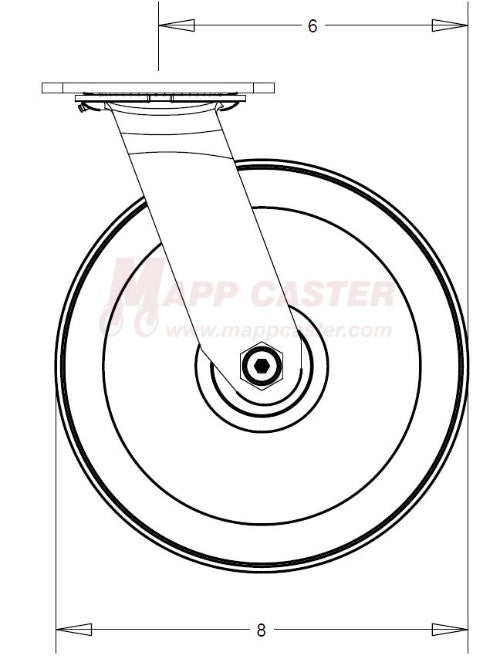

Swivel Radius: 6"
Wheel Color: Silver
Swivel Construction: Double Ball Raceway - 5/8" Kingpin
Temp Range: -45˚F to 600˚F
Weight: 11.742 Lbs
Link to Replacement Wheel: QSTL8MO
Link to Matching Rigid Caster: 146CIRB820R
