10" x 3" Forged Steel Wheel Rigid Caster
SKU
P7010301202Couldn't load pickup availability
Forged steel wheel casters are the premium of all the steel wheel casters. The forged steel wheel is made from ASTM 1045 high carbon steel that is hot drop forged. It offers the maximum weight capacity, impact strength, and durability of all caster wheels. For a metal wheel with similar capacities and durability, but is more economical, check out our ductile steel wheel casters.
While forged steel is incredibly resilient, it is the harshest wheel type for floors and could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane wheels.
*Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings with have a 180°F temperature rating.
Caster Specifications:
| Load Capacity (lbs.): 5,400 | Matching Swivel Caster: P7110301201 |
| Wheel Diameter: 10" | Caster Rig Material Type: AISI 1045 Heat Treated Laser Cut Steel |
| Tread Width: 3" | Caster Rig Color/Finish: Bright Zinc Plated |
| Wheel Type: Forged Steel | Swivel or Rigid Caster: Rigid |
| Wheel Bearing Type: See Bearings Options | Swivel Radius: N/A |
| Overall Height: 12-1/2" | Swivel Construction: N/A |

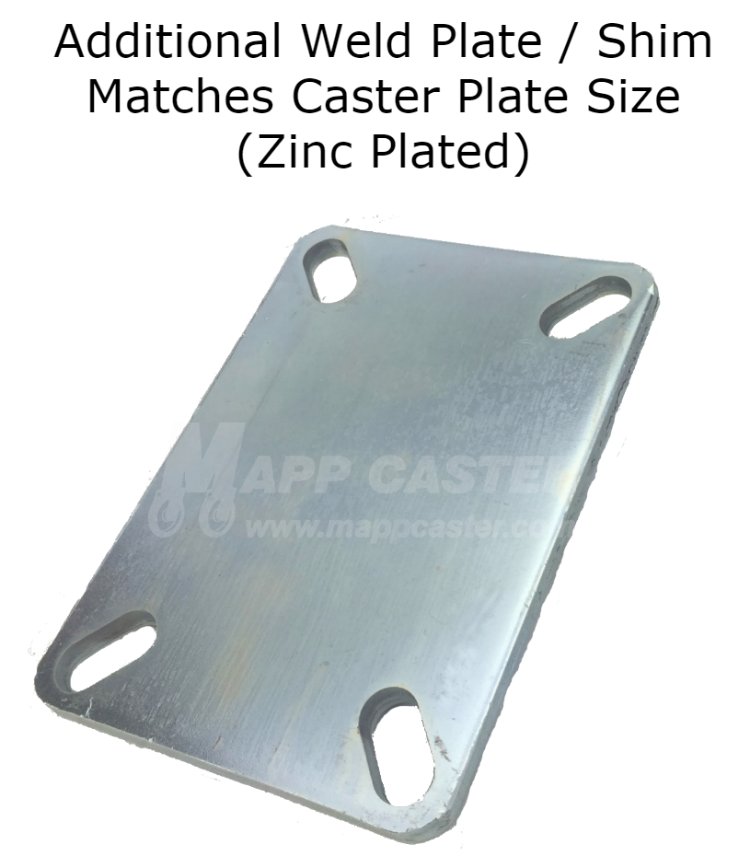

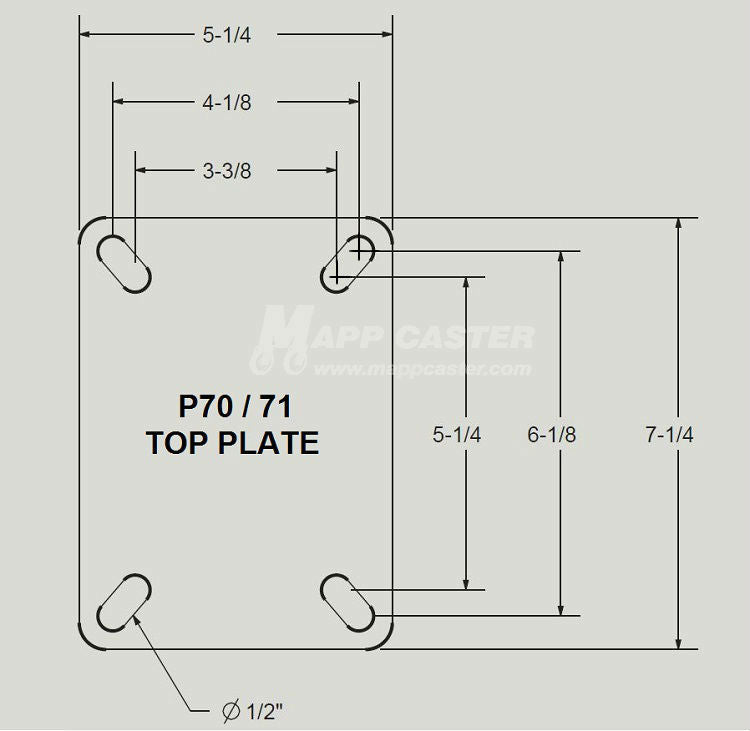

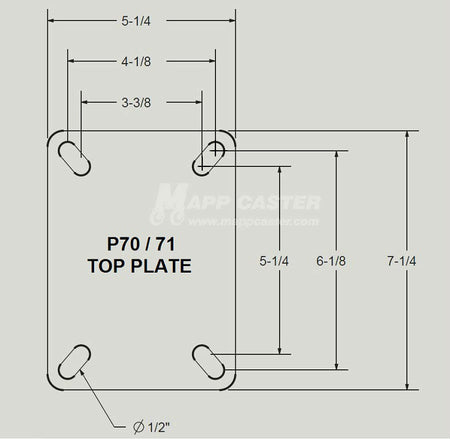

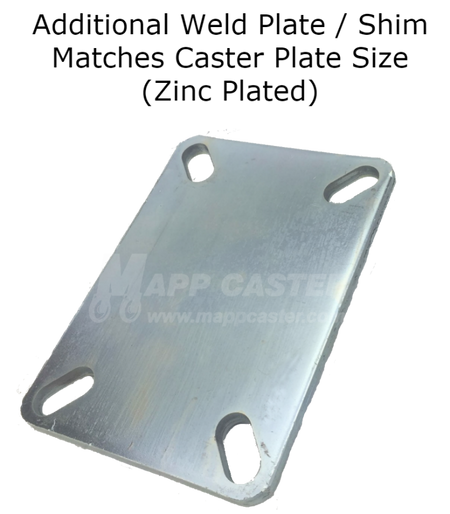

| Temp Range: -45°F to 1300°F (Depending on Bearings) | Mounting Plate: 5-1/4" x 7-1/4" |
| Wheel Hardness: Rockwell 80B | Bolt Hole Pattern: 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" |
| Wheel Color: Silver | Mounting Bolt Size: 1/2" or Smaller |
| Replacement Wheel: P103002031 | Weight: 39 lbs. |
