10" x 2-1/2" Ductile Steel Rigidl Caster -1750 lbs Capacity
10" x 2-1/2" Ductile Steel Rigidl Caster -1750 lbs Capacity

10" x 2-1/2" Ductile Steel Rigid Caster

SKU

210HR17
$194.90

Ductile steel wheel is a combination of select alloys that give it higher weight capacities than cast iron, and is more economical than drop forged steel. It can be known as malleable iron, meaning it will flex rather than cracking or breaking when submitted to an extreme shock load. It is also an abrasion resistant wheel

Common Applications: Platform Trucks, Material Handling Carts, A-Frame Carts, Freight Terminal Dollies, Ground Support Equipment, Gantries and Hoppers, Trash Containers.

  • Temperature range: -45° F to 800° F.
  • 2,000 lbs. capacity

  • 11-1/2" total height

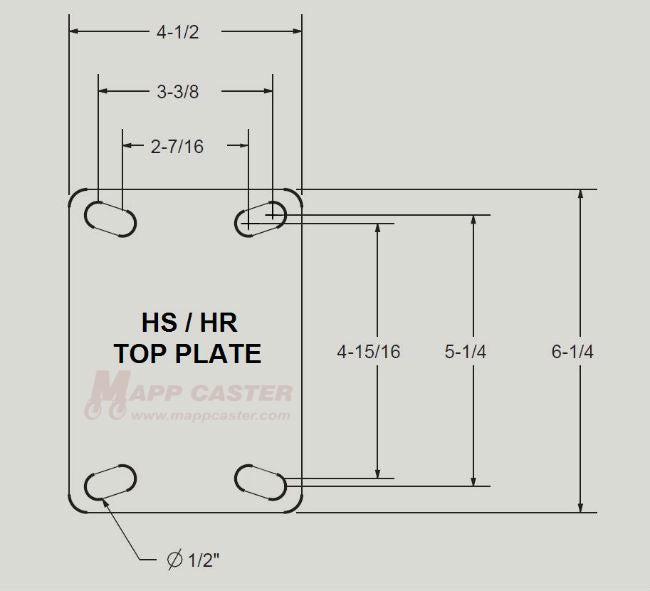

CASTER & PLATE SPECIFICATIONS (in.)

Plate Size 4-1/2" x 6-5/16"
Bolt Hole Spacing 2-7-16 x 4-15/16
Slotted to
3-3/8 x 5-1/4
Mounting Bolt Size 1/2"
Swivel Radius 4-1/8"
Standard Bearing Roller
Overall Height 11-1/2"
