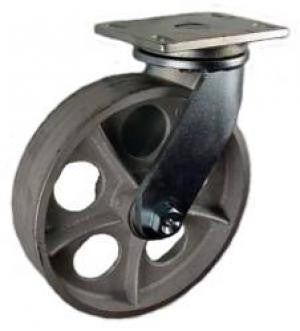

10" x 2-1/2" Cast Iron Wheel Swivel Caster
SKU
Q711001STLCouldn't load pickup availability
Cast iron/Semi-steel wheel offers a strong, resilient, cost effective solution for heavy loads. The hard tread rolls easily and allows high abrasion resistance; Smooth face allows for symmetrical ride
Common Applications: Tow Line and Shock Load Applications, Air Cargo and Ground Support, Platform Trucks and Storage Carts, Warehousing and Freight Terminal Dollies, Military Equipment
*Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings with have a 180°F temperature rating.
Caster Specifications:
| Load Capacity (lbs.): 2,000 | Matching Rigid Caster: Q7110R01STL |
| Wheel Diameter: 10" | Caster Rig Material Type: ASTM 1045 Steel |
| Tread Width: 2-1/2" | Caster Rig Color/Finish: Bright Zinc Plated |
| Wheel Type: Cast Iron | Swivel or Rigid Caster: Swivel |
| Wheel Bearing Type: See Bearings Options | Swivel Radius: 7-1/2" |
| Overall Height: 11-1/2" | Swivel Construction: 7/16" Ball Bearings in Upper Race with Precision Tapered in Lower Race - 3/4" Kingpin |

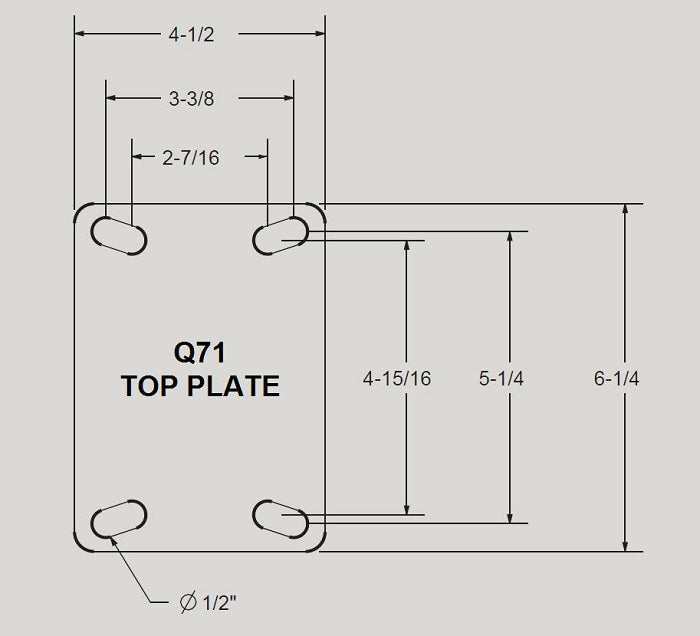

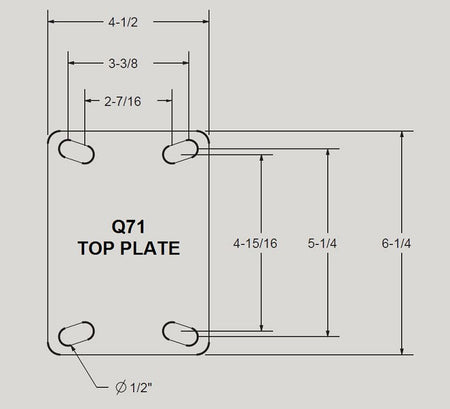

| Temp Range: -45°F to 600°F | Mounting Plate: 4-1/2" x 6-1/4" |
| Wheel Hardness: Brinell 145 | Bolt Hole Pattern: 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" |
| Wheel Color: Grey | Mounting Bolt Size: 1/2" or Smaller |
| Replacement Wheel: QSTL10P0 | Weight: 24.00 lbs. |
