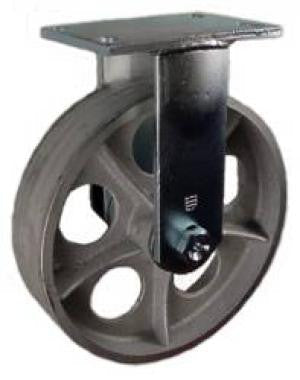

10" x 2-1/2" Cast Iron Wheel Rigid Caster
SKU
Q7110R01STL
Regular price
$118.05
Couldn't load pickup availability
Cast iron/Semi-steel wheel offers a strong, resilient, cost effective solution for heavy loads. The hard tread rolls easily and allows high abrasion resistance; Smooth face allows for symmetrical ride
Common Applications: Tow Line and Shock Load Applications, Air Cargo and Ground Support, Platform Trucks and Storage Carts, Warehousing and Freight Terminal Dollies, Military Equipment
*Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings with have a 180°F temperature rating.
Caster Specifications:
| Load Capacity (lbs.): 2,000 | Matching Swivel Caster: Q711001STL |
| Wheel Diameter: 10" | Caster Rig Material Type: ASTM 1045 Steel |
| Tread Width: 2-1/2" | Caster Rig Color/Finish: Bright Zinc Plated |
| Wheel Type: Cast Iron | Swivel or Rigid Caster: Rigid |
| Wheel Bearing Type: See Bearings Options | Swivel Radius: N/A |
| Overall Height: 11-1/2" | Swivel Construction: N/A |

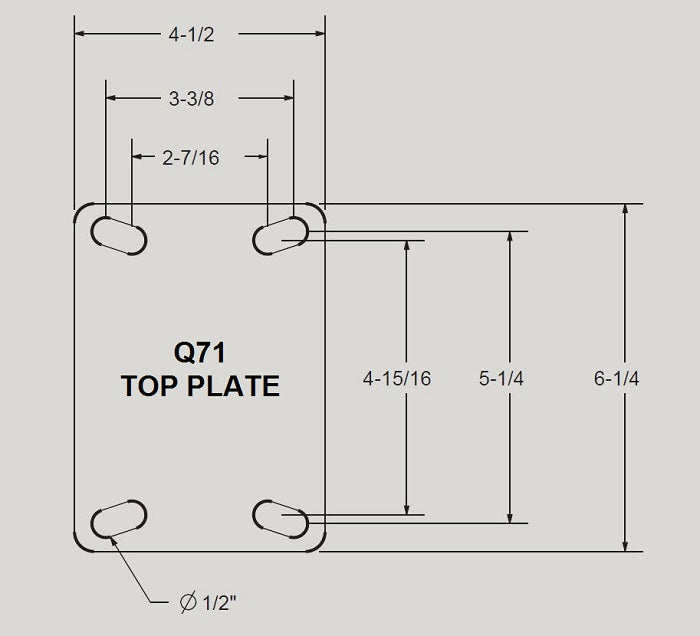

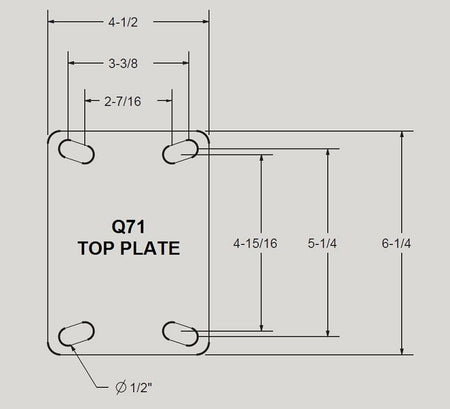

| Temp Range: -45°F to 600°F | Mounting Plate: 4-1/2" x 6-1/4" |
| Wheel Hardness: Brinell 145 | Bolt Hole Pattern: 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4" |
| Wheel Color: Grey | Mounting Bolt Size: 1/2" or Smaller |
| Replacement Wheel: QSTL10P0 | Weight: 20.00 lbs. |
